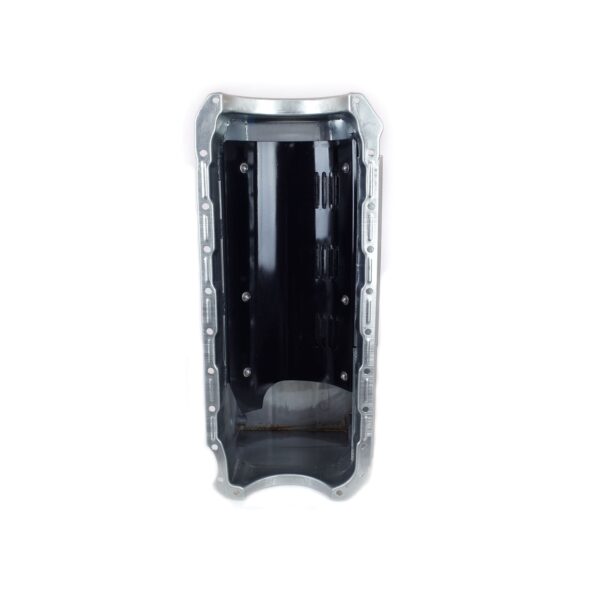

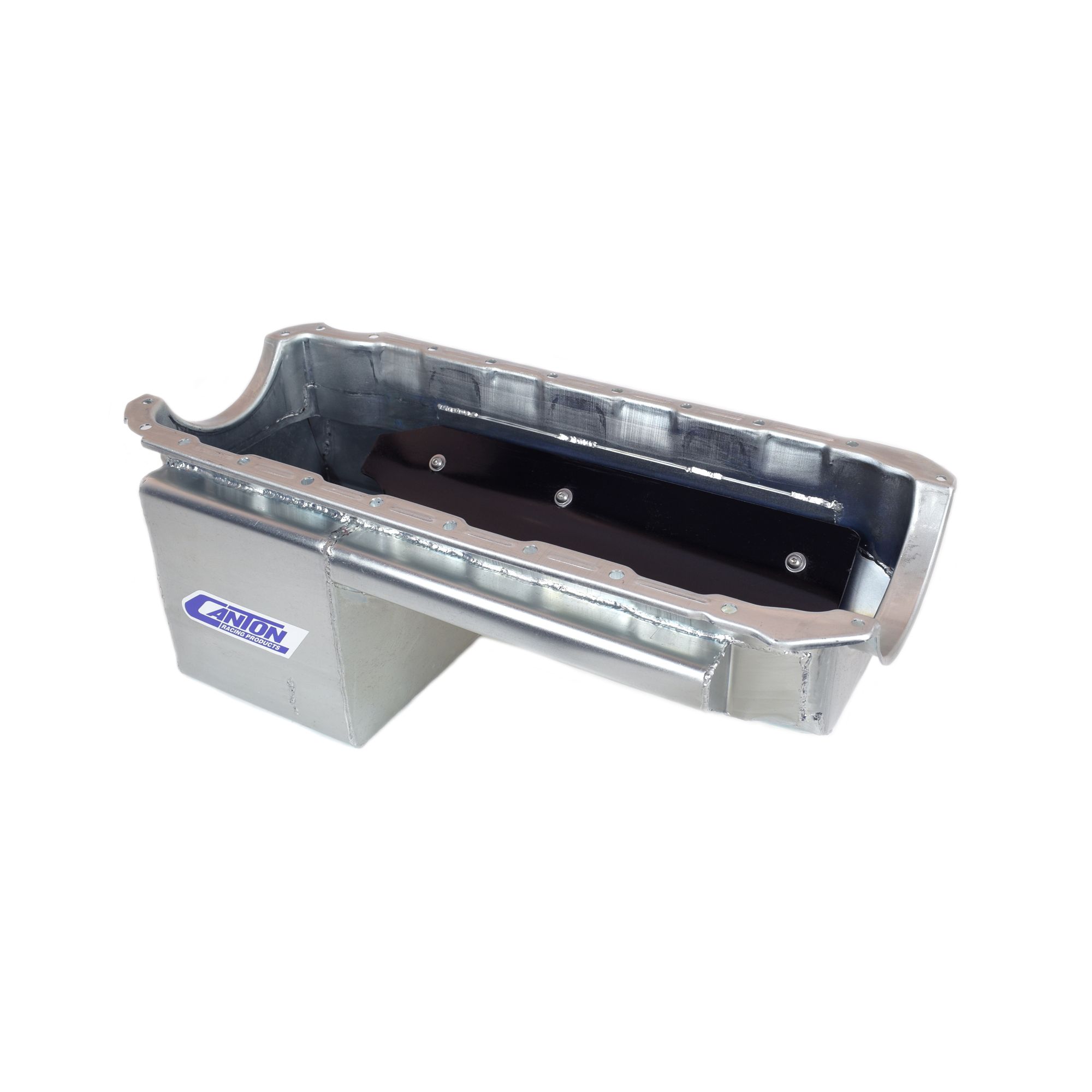

Canton 13-334 Oil Pan Big Block Chevy Drag Race Pan For Aftermarket Starter

$1,248.75

7 qt System Capacity
Drag Race Trap Door Baffle System
Oil Recovery Pouch
Designed For Stock Style Starter Clearance
Bolt In Louvered Windage Tray
Provision For Our Pan Mounted Dipstick
Magnetic Drain Plug

SKU: BGTF-13-334 Category: Engine Oil Pan

This BBC drag race power series oil pan is for Mark 4 blocks. It has a 9" deep by 9" long and 9" wide sump and a 7 quart system capacity. It is designed to fit most stock chassis. Will work with aftermarket offset starters. This pan requires our 20-190 pickup.

Additional Attributes:

GTIN: 00887753711816
Baffled: Yes
Capacity: 7 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: Yes
Drain Plug Included: Yes
Engine: For B.B. Chevy Mark 4 Blocks
Feature 1: Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
Feature 3: Removable Louvered Windage Tray
Feature 4: Trap Door Baffle For Oil Control
Feature 5: Provision for Canton Pan Mounted Dipstick
Feature 6: Magnetic Drain Plug
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: No
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 20-190 – Pickup for BBC Pumps
Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4? N.P.T. Fitting
Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
Stoke: 4.5 inches
Windage Tray Included: Yes
