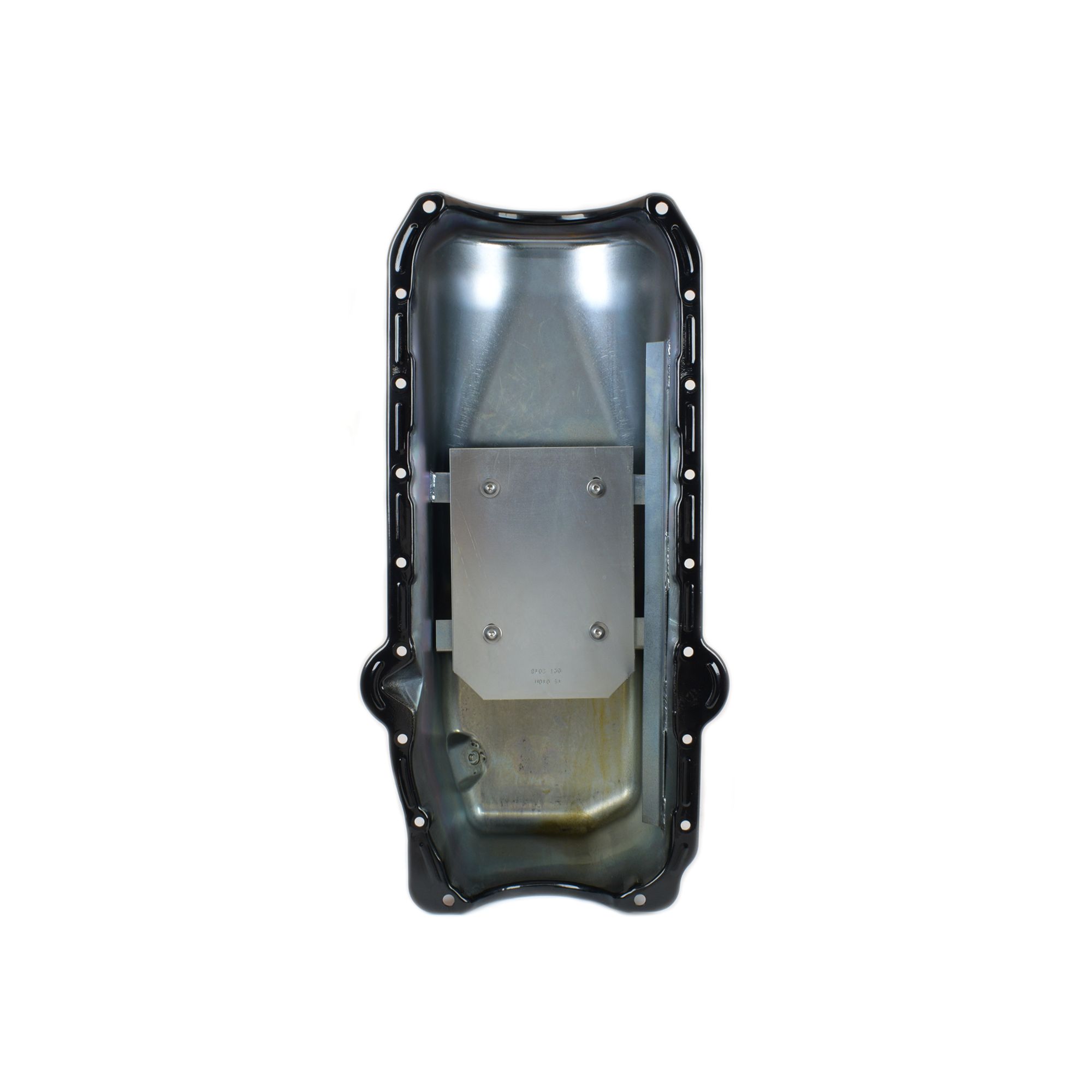

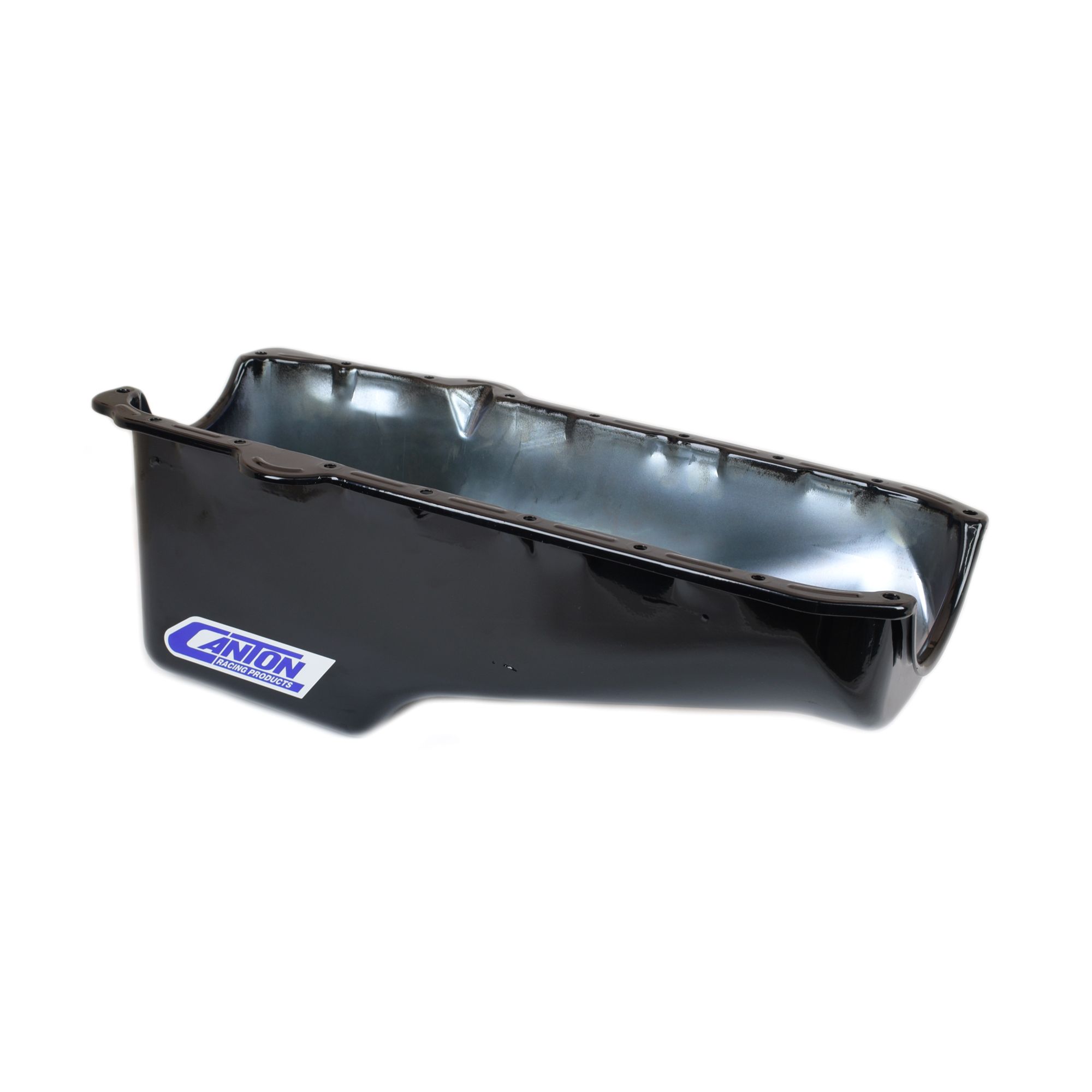

This black powder coat stock appearing oil pan is for pre-?80 SBC blocks with left side dipstick. It is designed for applications that only have room for a stock oil pan, but require better control. Retains all stock oil pan dimensions and capacity. Will work with all starter flywheel combinations. Requires one of our pickups.
Additional Attributes:
GTIN: 00887753712059
Baffled: Yes
Capacity: 5 Quart System Capacity
Crank Scraper Included: Yes
Dipstick Port: No
Drain Plug Included: Yes
Engine: For S.B. Chevy Pre-1980 Blocks
Feature 1: Trap Door Baffle for Oil Control
Feature 2: Crank Scraper
Feature 3: Bolt in Slosh Baffle
Feature 4: Black Powder coat
Finish: Black Powder coat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: No
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 20-010 – Pickup for Standard Volume Pumps M55 & M55A
Recommended Accessory 2: 20-013 – Pickup for Standard Volume Pump M-155 w/3/4″ Inlet
Recommended Accessory 3: 20-020 – Pickup for High Volume Pump M55HV
Recommended Accessory 4: 20-023 – Pickup for High Volume Pump M-155HV with 3/4″ Inlet
Recommended Accessory 5: 20-021 – Bolt-On Pickup for Melling M10555 Pumps
Recommended Accessory 6: 88-100 ? SBC Pre ?85 Oil Pan Gasket
Stoke: 3.75 inches
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 23 x 12 x 9 inches
Weight: 15 PG
Pan Install – Standard Part B
