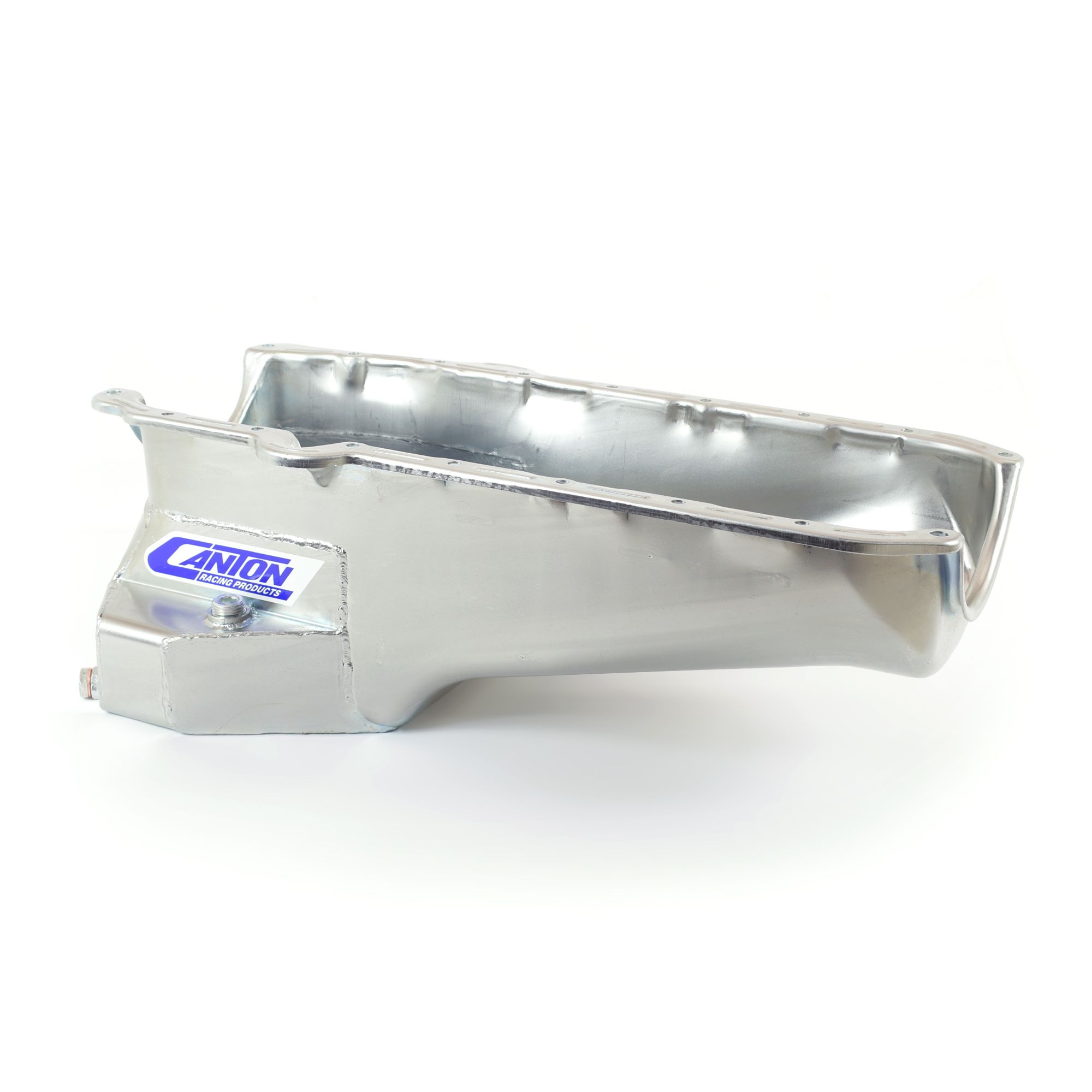

This road race pan is for '86 and newer SBC blocks in '93-'97 F-Bodies. (also fits Impalas) It has a 7-1/2" deep, 12" wide, 8-1/4" long sump for a 6 qt. system capacity. Will work with stock starter. This pan requires one of our pickups.
Additional Attributes:
GTIN: 00887753712189
Baffled: Yes
Capacity: 6 Quart System Capacity
Crank Scraper Included: Yes
Dipstick Port: No
Drain Plug Included: Yes
Engine: For S.B. Chevy 1986 and newer blocks with one piece seal

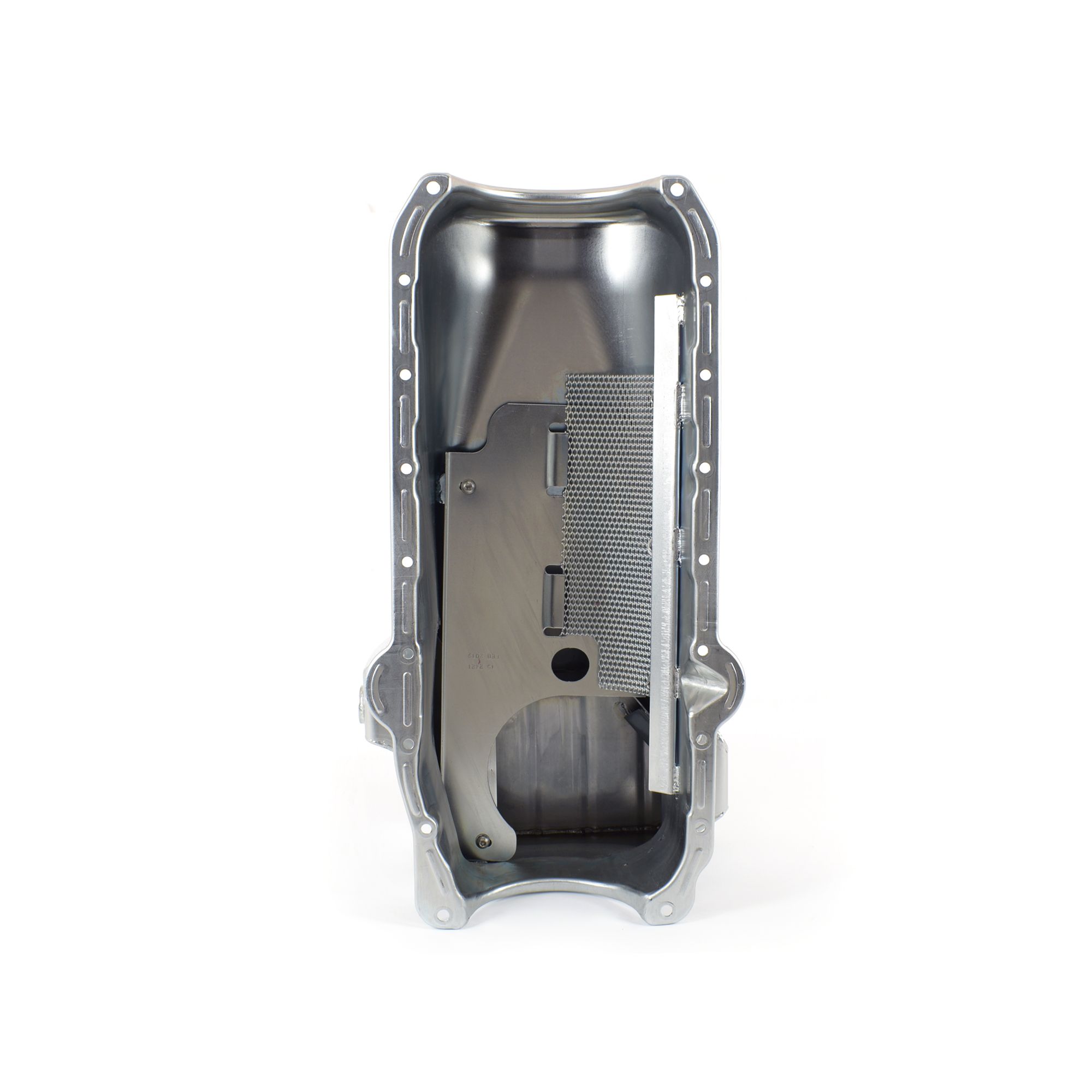

Feature 1: Trap Door Baffle for Oil Control
Feature 2: Crank Scraper
Feature 3: Bolt in Windage Tray
Feature 4: 1/2″ NPT Temperature Bung
Feature 5: 20mm Fitting for GM Low Oil Warning Sender
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 20-010 – Pickup for SBC Standard Volume Oil Pumps M55 & M55A
Recommended Accessory 2: 20-013 – Pickup for SBC Standard Volume Oil Pump M155 with 3/4″ Inlet
Recommended Accessory 3: 20-020 – Pickup for SBC High Volume Oil Pump M55HV
Recommended Accessory 4: 20-023 – Pickup for SBC High Volume Oil Pump M155HV with 3/4″ Inlet
Recommended Accessory 5: 20-021 – Bolt-On Pickup for Melling M10555 Pumps
Recommended Accessory 6: 22-405 – 20MM Plug for Oil Level Sender Port
Recommended Accessory 7: 88-100T ? SBC 86+ Oil Pan Gasket
Stoke: 3.75 inches
Windage Tray Included: Yes
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 17 PG
Pan Install – Standard Part B
