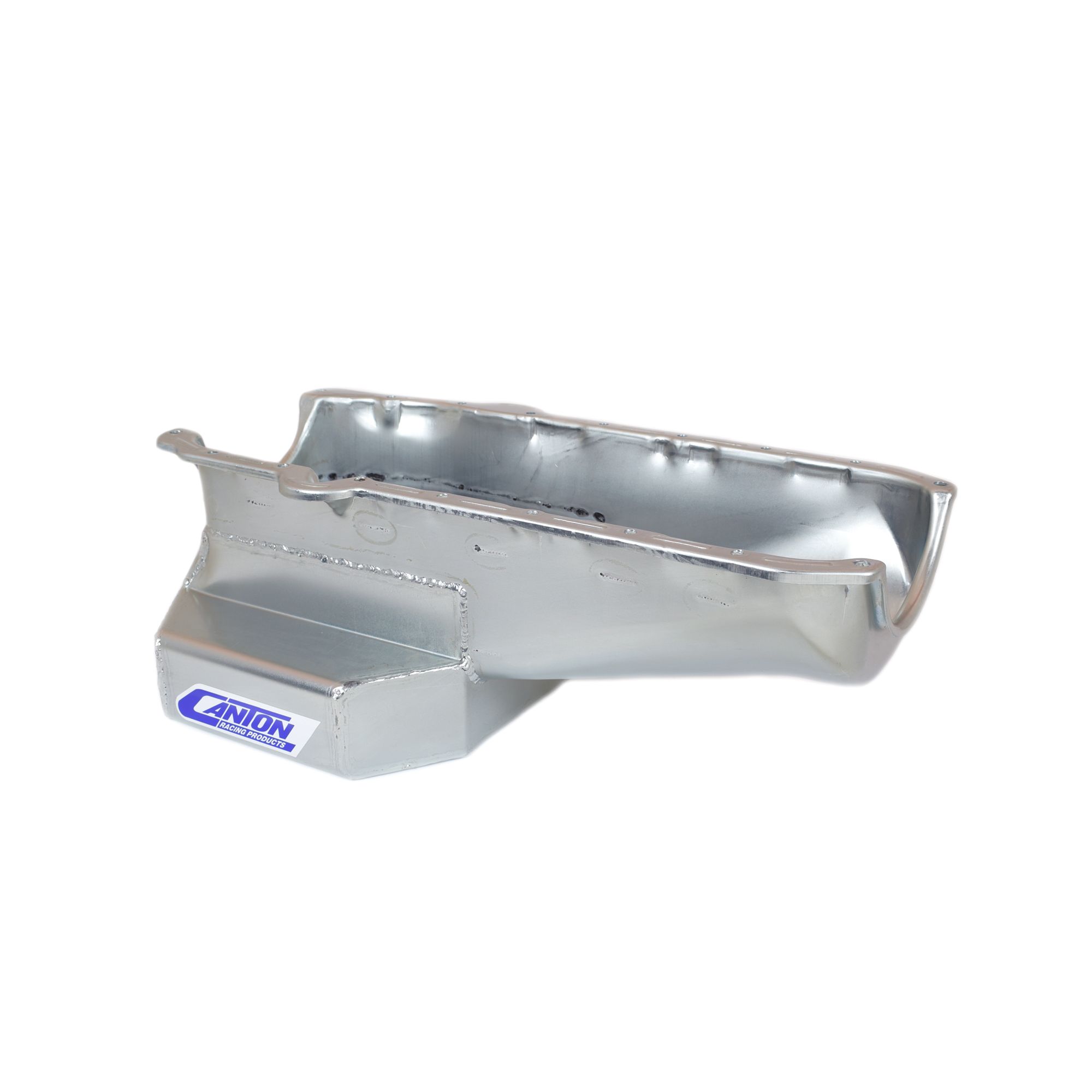

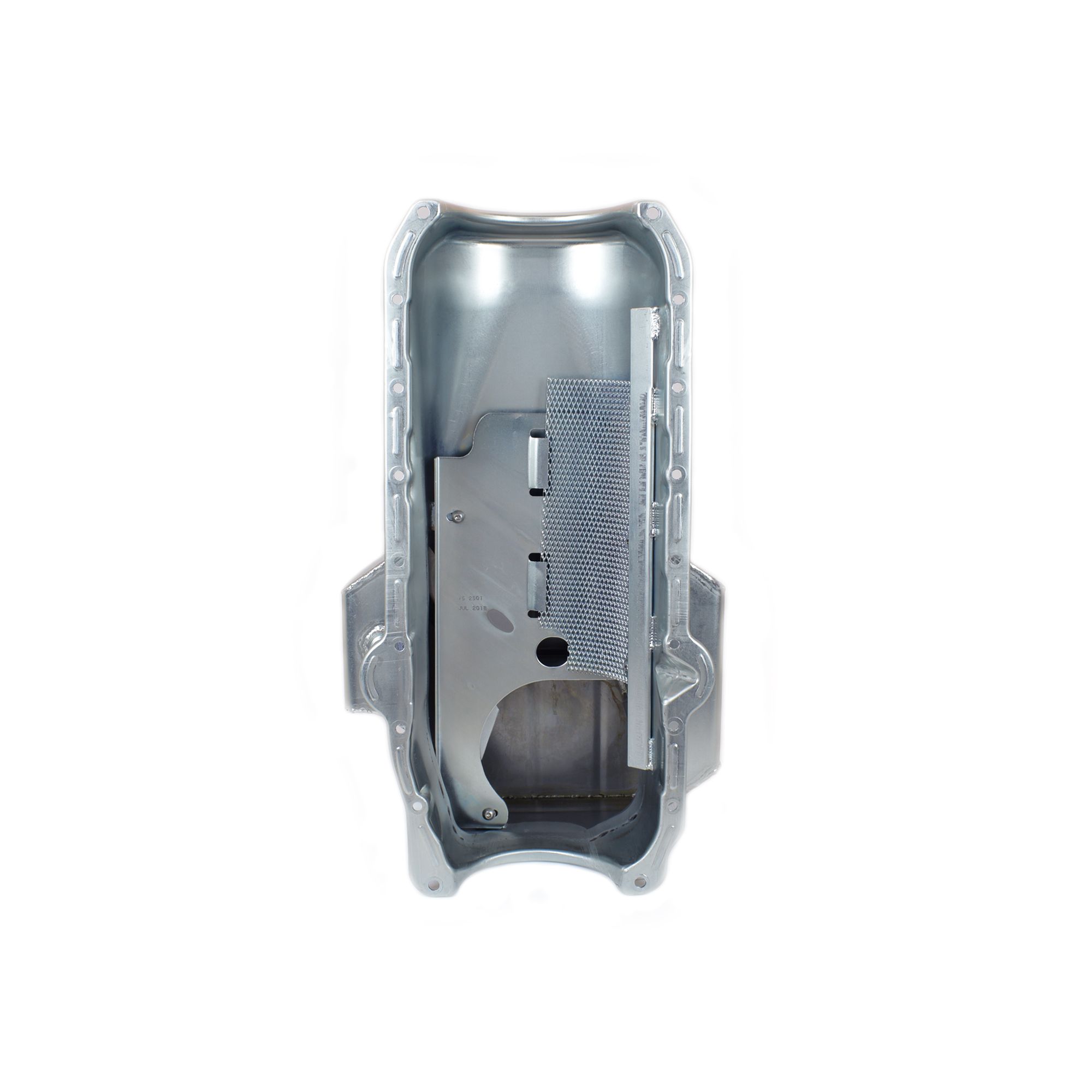

This SBC road race oil pan is for '86 and newer blocks with one piece seal. It is designed for x-member clearance in '78 and up F bodies, without cross over exhaust. It has a 7-1/2" deep, 13-3/4" wide, 10-1/2" long sump, for a 7 quart system capacity. This pan requires one of our pickups.
Additional Attributes:
GTIN: 00887753712288
Baffled: Yes
Capacity: 7 Quart System Capacity
Crank Scraper Included: Yes
Dipstick Port: No
Drain Plug Included: Yes
Engine: For S.B. Chevy 1986 and newer blocks with one piece seal
Feature 1: Trap Door Baffle for Oil Control
Feature 2: Crank Scraper
Feature 3: Bolt in Windage Tray
Feature 4: 1/2″ NPT Temperature Bung
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 20-010 – Pickup for SBC Standard Volume Oil Pumps M55 & M55A
Recommended Accessory 2: 20-013 – Pickup for SBC Standard Volume Oil Pump M155 with 3/4″ Inlet
Recommended Accessory 3: 20-020 – Pickup for SBC High Volume Oil Pump M55HV
Recommended Accessory 4: 20-023 – Pickup for SBC High Volume Oil Pump M155HV with 3/4″ Inlet
Recommended Accessory 5: 20-021 – Bolt-On Pickup for Melling M10555 Pumps
Recommended Accessory 6: 88-100T – SBC ’86+ Oil Pan Gasket
Stoke: 3.75 inches
Windage Tray Included: Yes
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 24 x 16 x 10 inches
Weight: 18 PG
Pan Install – Standard Part B
