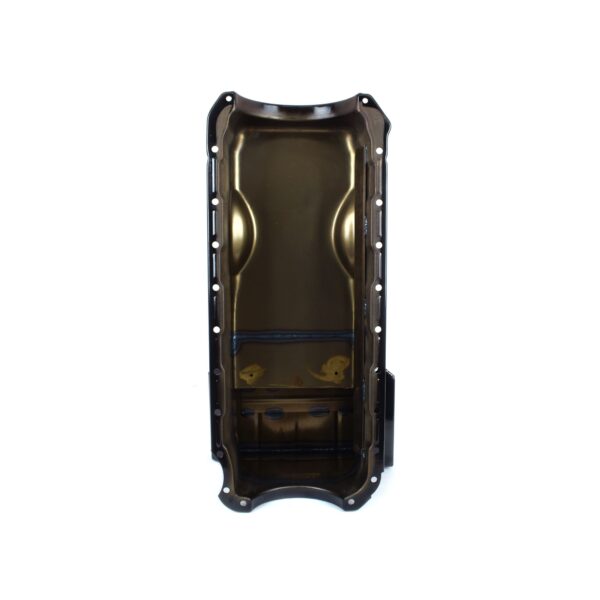

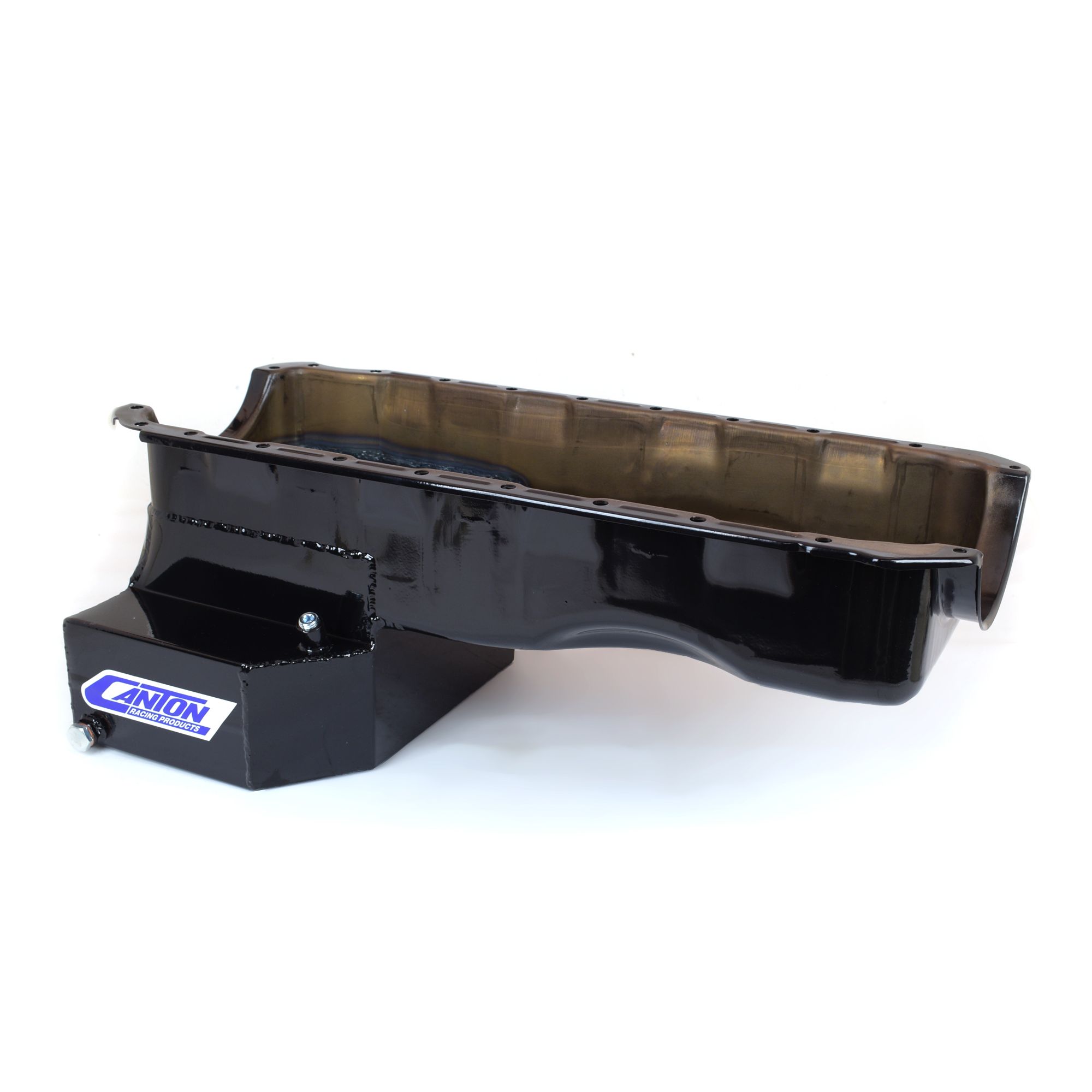

This black powdercoat BBC early Chevelle pan is for standard Mark 4 Big Blocks with a 2 piece rear seal. It is designed with angled front corners to fit in '64-'67 Chevelle and most other GM chassis. It has a 9" deep, 13" wide, 8-1/2" long sump for an 8 quart system capacity. This pan requires our 20-190 pickup.
Additional Attributes:
GTIN: 00887753712486
Baffled: Yes
Capacity: 8 Quart System Capacity
Crank Scraper Included: Yes
Dipstick Port: Yes
Drain Plug Included: Yes
Engine: For B.B. Chevy Mark 4 Blocks
Feature 1: Slosh Baffle For Oil Control
Feature 2: Crank Scraper
Feature 3: Provision for Pan Mounted Dipstick
Feature 4: Clears 4.5″ Stroke
Feature 5: Magnetic Drain Plug
Feature 6: Black Powdercoat
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 20-190 – Pickup for BBC Oil Pumps
Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
Stoke: 4.5 inches
Sump Depth: 9 inches
Sump Width: 13 inches
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 18 PG
Pan Install – Standard Part B
