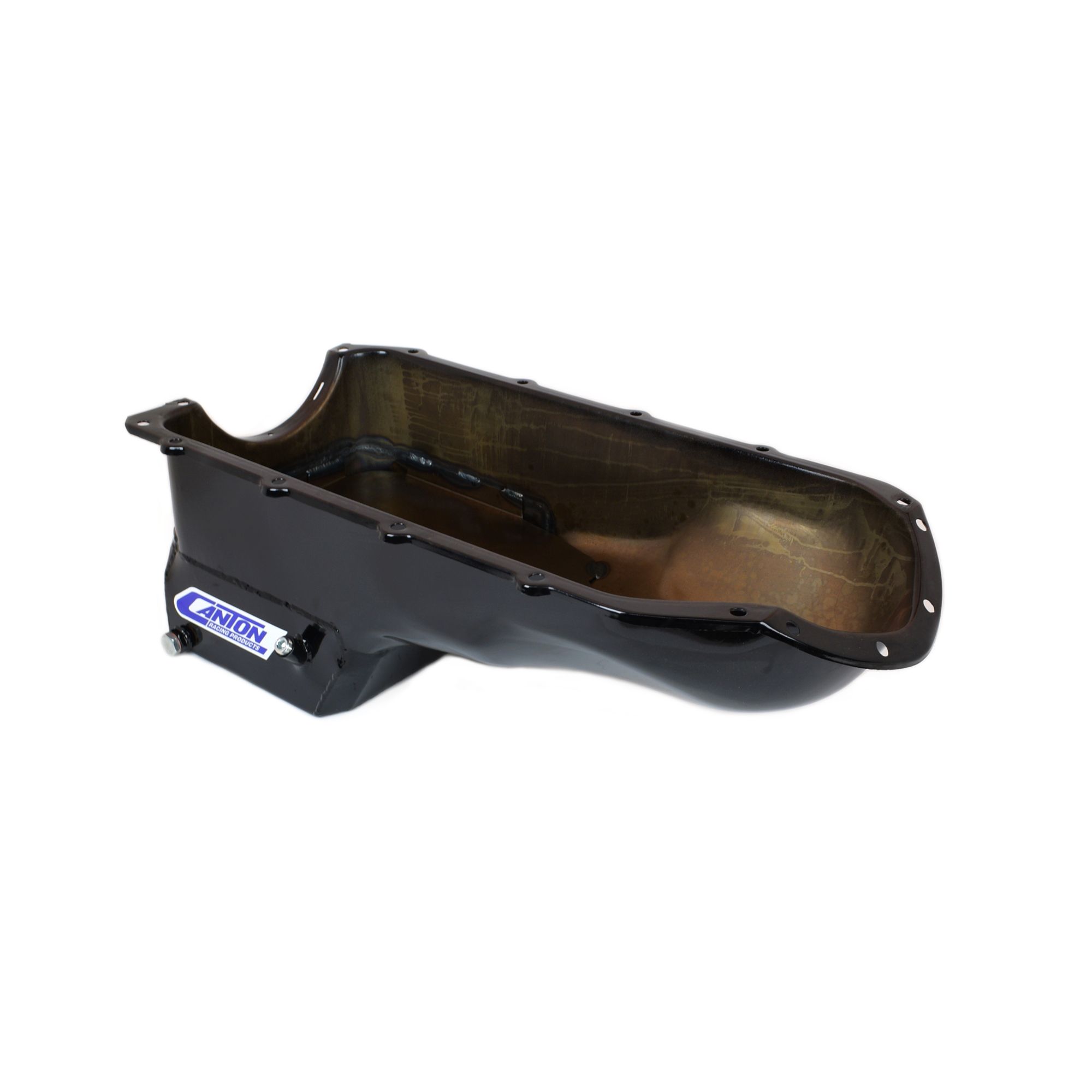

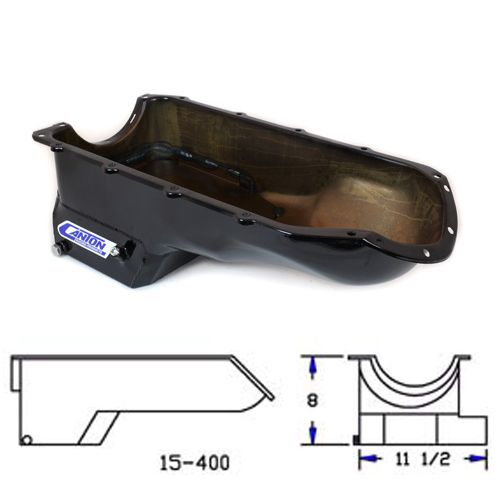

This black powdercoated high capacity pan is for Pontiac 301-455 engines and features a side pouch which offers increased oil capacity while still providing considerable x-member clearance. It has an 8" deep by 11-1/2" wide sump, with a 6-1/2 quart system capacity. This pan requires our 15-401 pickup.
Additional Attributes:
GTIN: 00887753712547
Baffled: Yes
Capacity: 6.5 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 6.5 qt System Capacity
Feature 2: Retains All Stock Dimensions & Capacity
Feature 3: Slosh Baffle
Feature 4: Magnetic Drain Plug
Finish: Black Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 15-401 – Pickup with 3/4″ Inlet for M54DS or M10541 Oil Pump
Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 4: 88-400 – Pontiac Oil Pan Gasket
Stoke: 4.5 inches
Sump Depth: 8 inches
Sump Width: 11.5 inches
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 15 PG
Pan Install – Standard Part B
