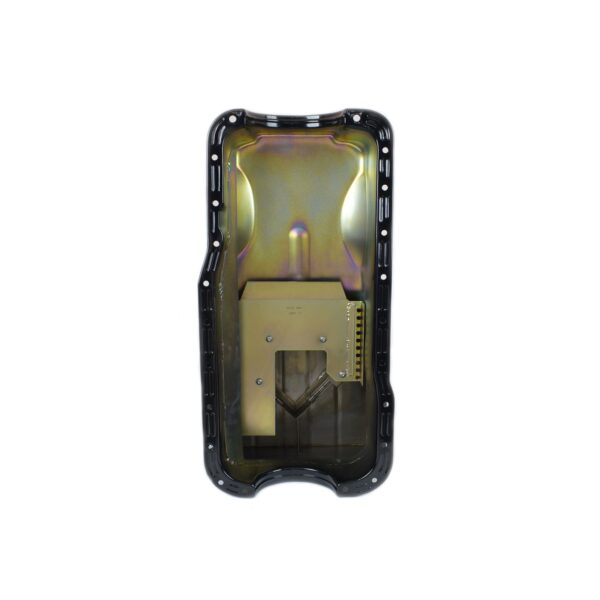

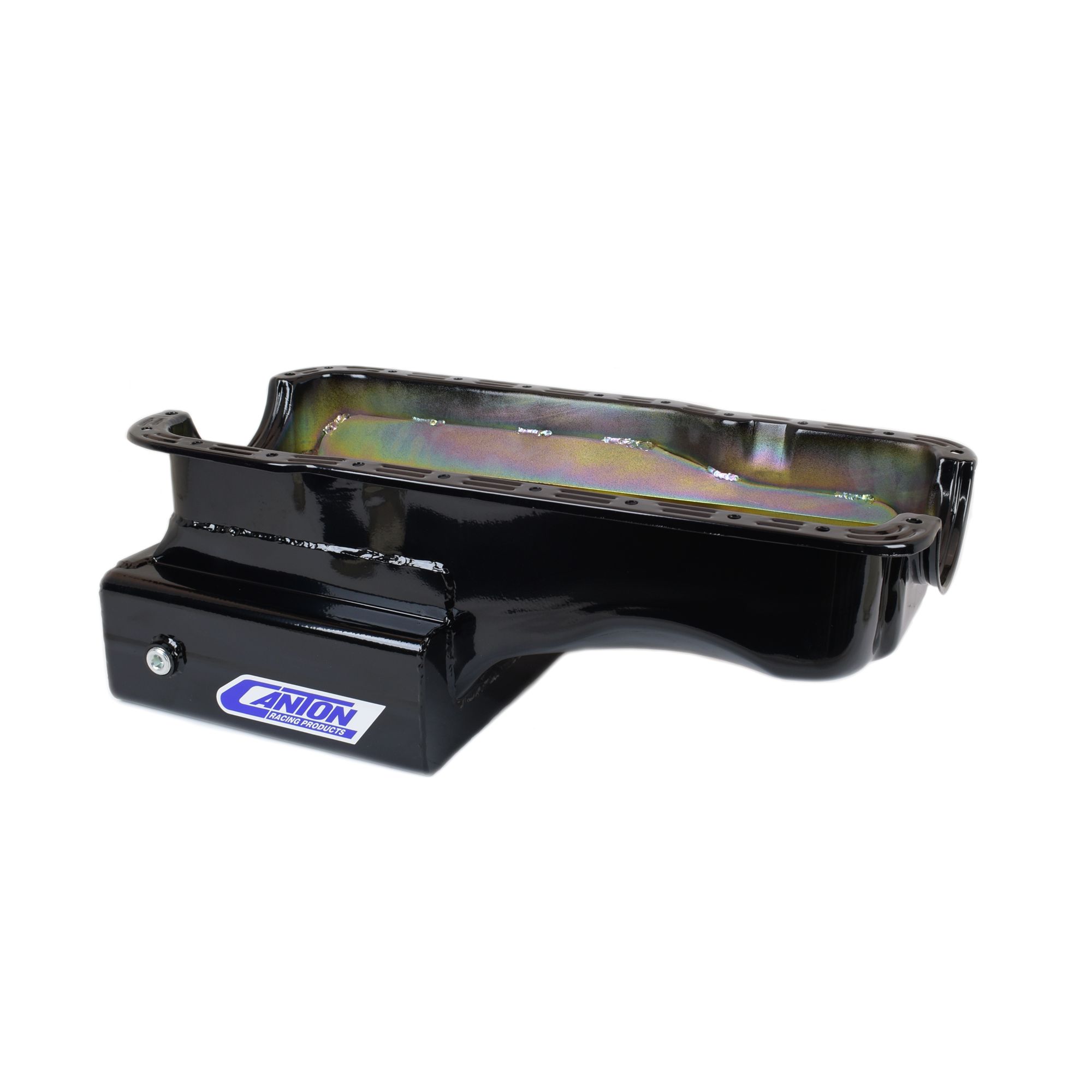

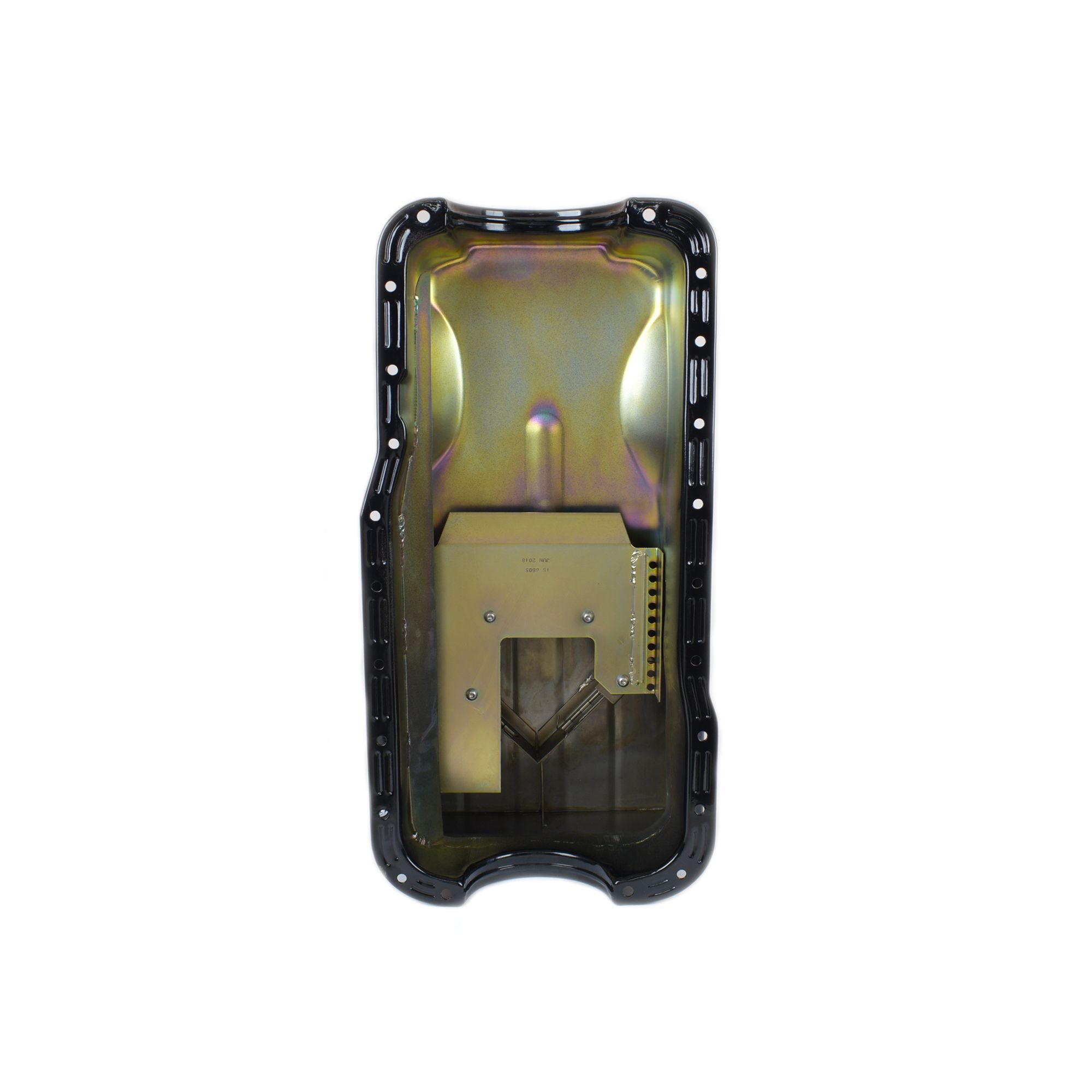

This black powder coat front sump road race pan is for Ford 351 Windsor blocks. It has a 9 qt. system capacity, 8" deep, 12" wide, 14 ga. sump designed with 14 gauge steel for Cobra kit cars. Will work with stock & aftermarket starters. This pan requires our 15-661 pickup.
Additional Attributes:
GTIN: 00887753713193
Baffled: Yes
Capacity: 9 Quart System Capacity
Crank Scraper Included: Yes
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 8 qt System Capacity
Feature 2: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Feature 3: Crank Scraper
Feature 4: Removable Windage/Anti-Slosh Baffle
Feature 5: 1/2″ NPT Temperature Bung
Feature 6: Provision For Our Pan Mounted Dipstick
Feature 7: Magnetic Drain Plug
Finish: Black Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 15-661 – Pickup with 3/4″ Dia. Inlet
Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 4: 88-650 ? Small Block Ford 351W Four Piece Oil Pan Gasket
Stoke: 4.0 inches
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 18 PG
Pan Install – Standard Part B
