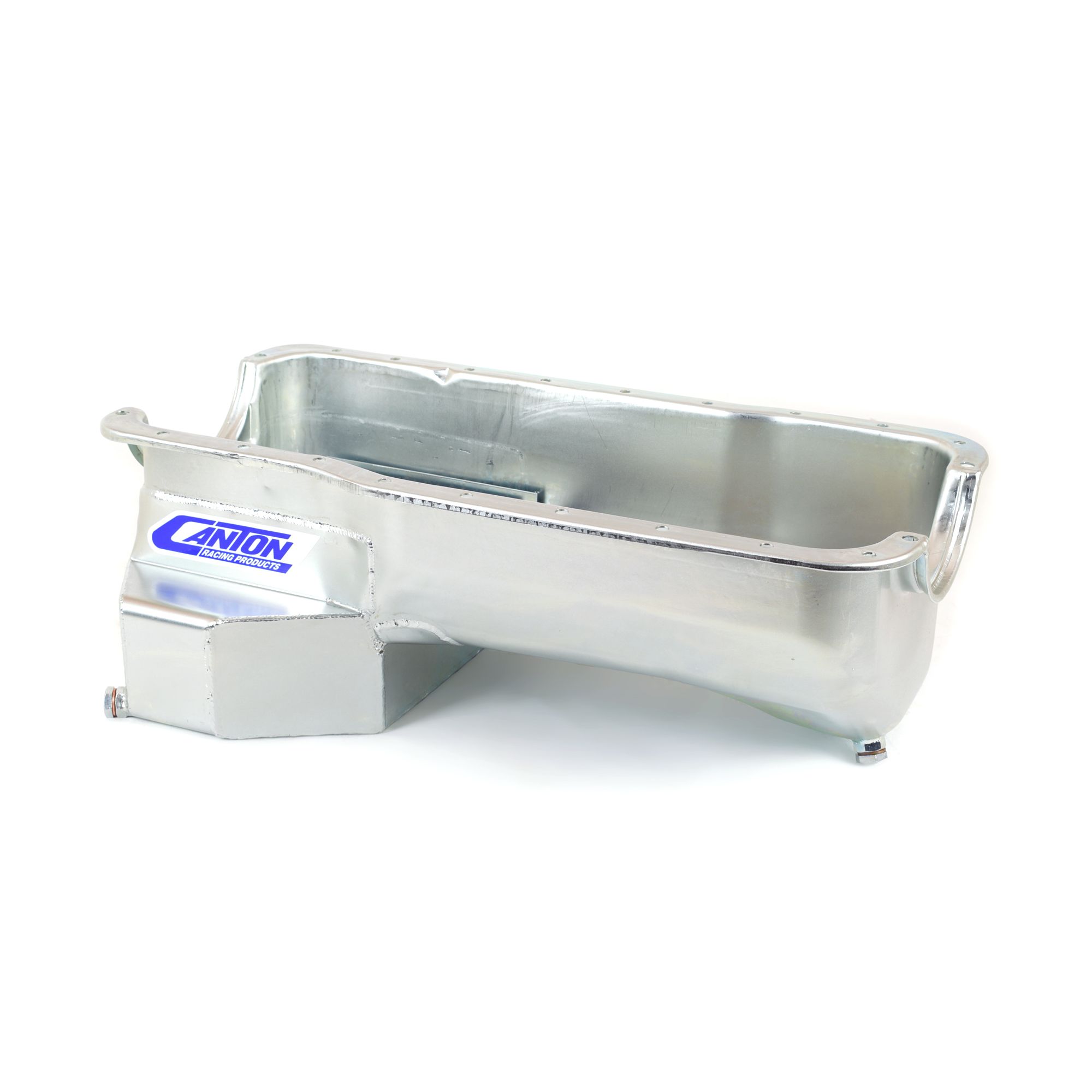

This "T" style rear sump oil pan is for Ford 351W blocks in Fox Body Mustangs. It has a 7-1/2" deep 8" long by 13-1/2" wide sump and a 7 quart system capacity. This pan requires our 15-695 pickup. Pan does not include crank scraper to provide main support clearance. Some long tube headers require modification. Note: Modification needed for manual transmission 94-95 Mustangs for clutch cable clearance.
Additional Attributes:
GTIN: 00887753713254
Baffled: Yes
Capacity: 7 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 7 qt System Capacity
Feature 2: Retains Stock Depth

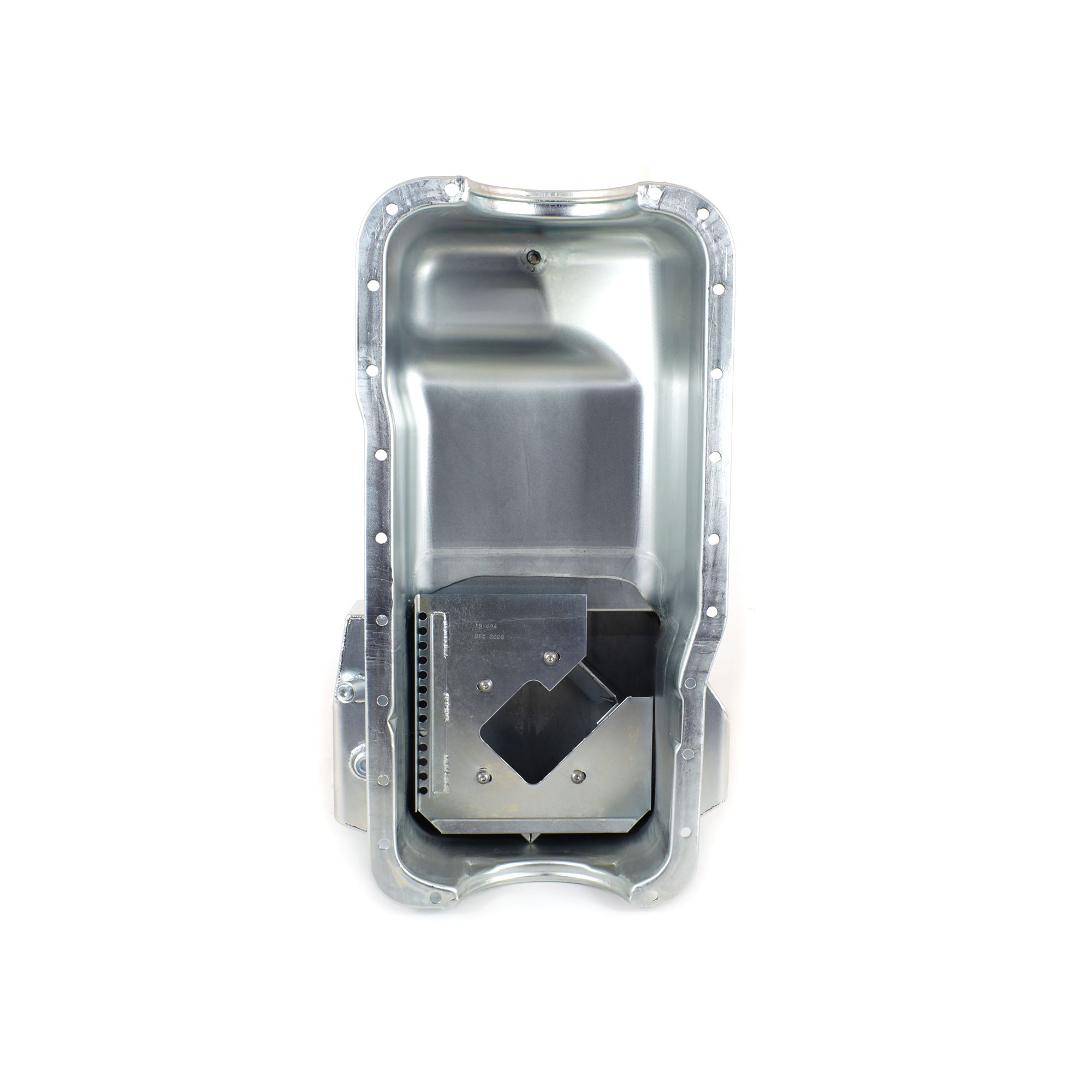

Feature 3: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Feature 4: Removable Windage/Anti-Slosh Baffle
Feature 5: 1/2″ NPT Temperature Bung
Feature 6: Provision For Our Pan Mounted Dipstick
Feature 7: Magnetic Drain Plug
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 15-695 – Pickup with 3/4″ Dia. Inlet
Recommended Accessory 2: 21-062 – Canton Steel 351W Main Support
Recommended Accessory 3: 20-962 Ford 351W Main Support Mounted Windage Tray
Recommended Accessory 4: 20-953 – Pickup Mounting Stud for 351W Based Engines
Recommended Accessory 5: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 6: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 7: 88-652 ? Small Block Ford 351W One Piece Oil Pan Gasket
Stoke: 4.0 inches
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Superseded
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 17 PG
Pan Install – Standard Part B
