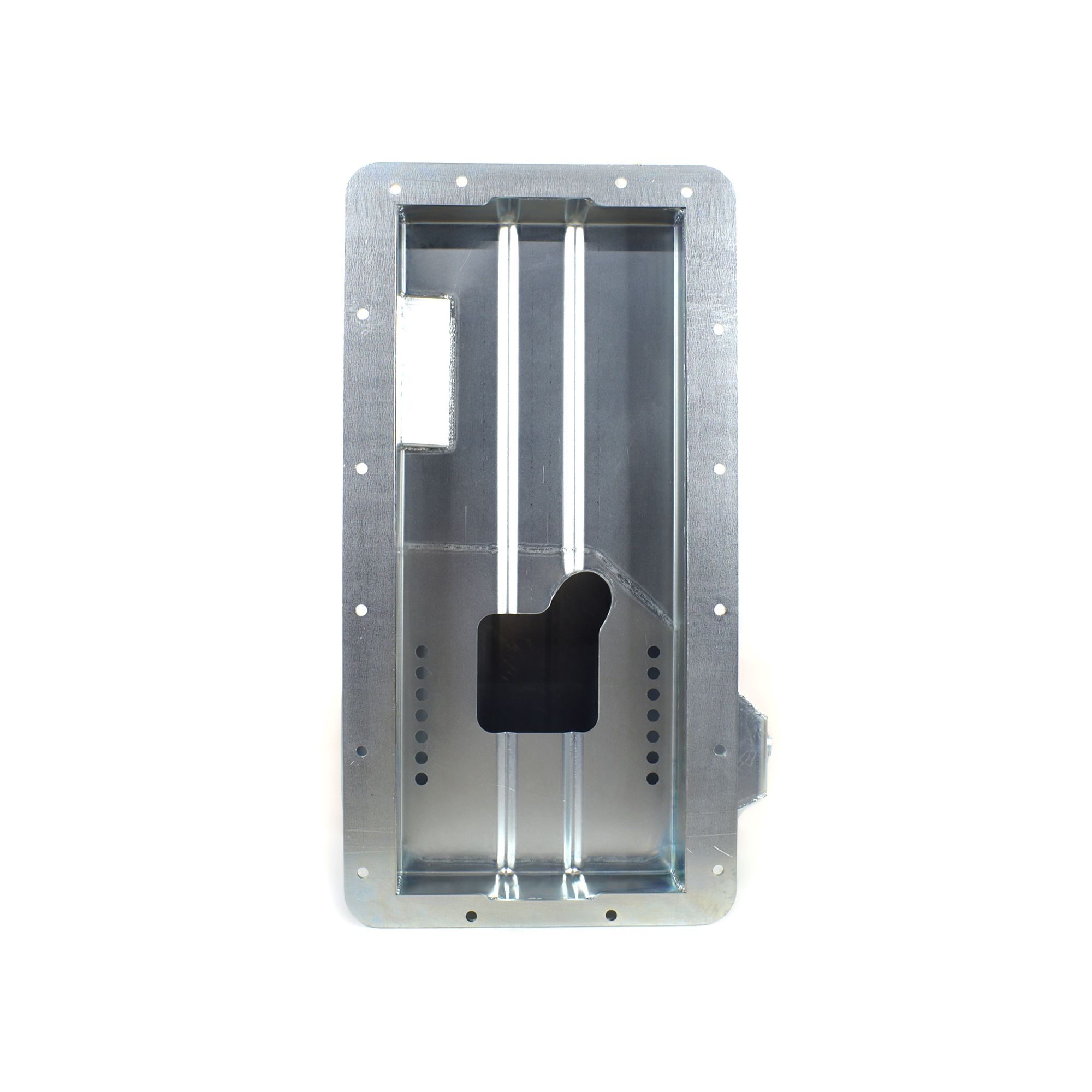

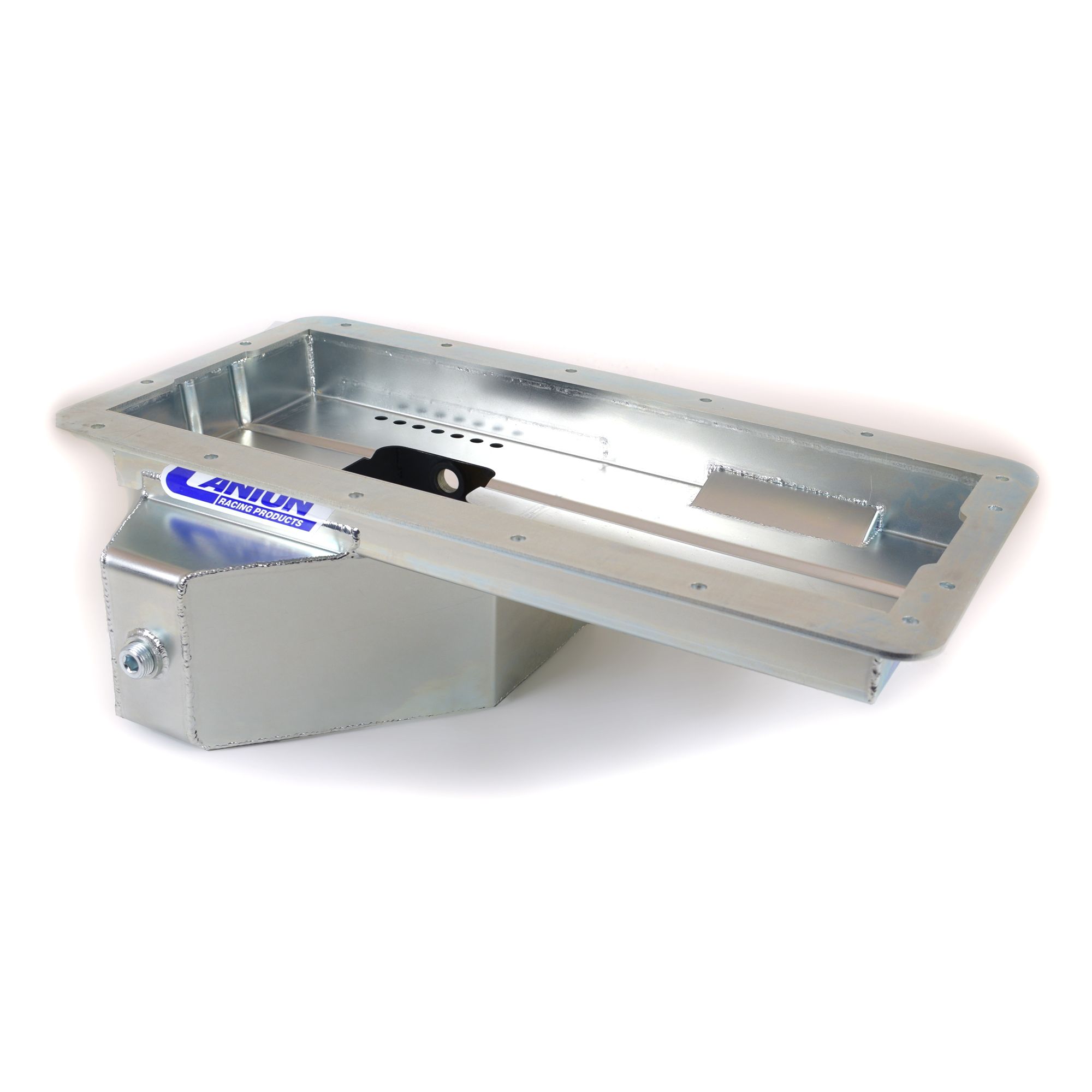

This 15-730 Ford 5.0 Coyote oil pan is designed for 96-04 and 05-12 Mustangs that are used on the street or strip. It's rear sump design offers extra capacity without sacrificing ground clearance and includes a slosh baffle for oil control to keep the oil off the crank shaft under heavy driving conditions.
Additional Attributes:
GTIN: 00887753713346
Baffled: Yes
Capacity: 7 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: No
Drain Plug Included: Yes
Feature 1: 3/16″ Lasercut Rail
Feature 2: Slosh Baffle
Feature 3: Magnetic Drain Plug
Feature 4: 7 qt System Capacity
Feature 5: 1/2″ NPT bung for temperature sensor
Feature 6: Provison for our Pan Mounted Dipstick
Feature 7: 20 mm bung for low oil warning sender (Plug required if sender isn’t used)
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 22-405 – 20mm Plug For Oil Level Sender Port
Recommended Accessory 2: 20-850 – Universal Dipstick Kit – 1/4″ NPT Fitting
Recommended Accessory 3: 20-854 – Flexible Universal Steel Braided Dipstick Kit – 1/4″ NPT Fitting
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 13.5 x 9.75 inches
Weight: 13.5 PG
Pan Install – Standard Part B
