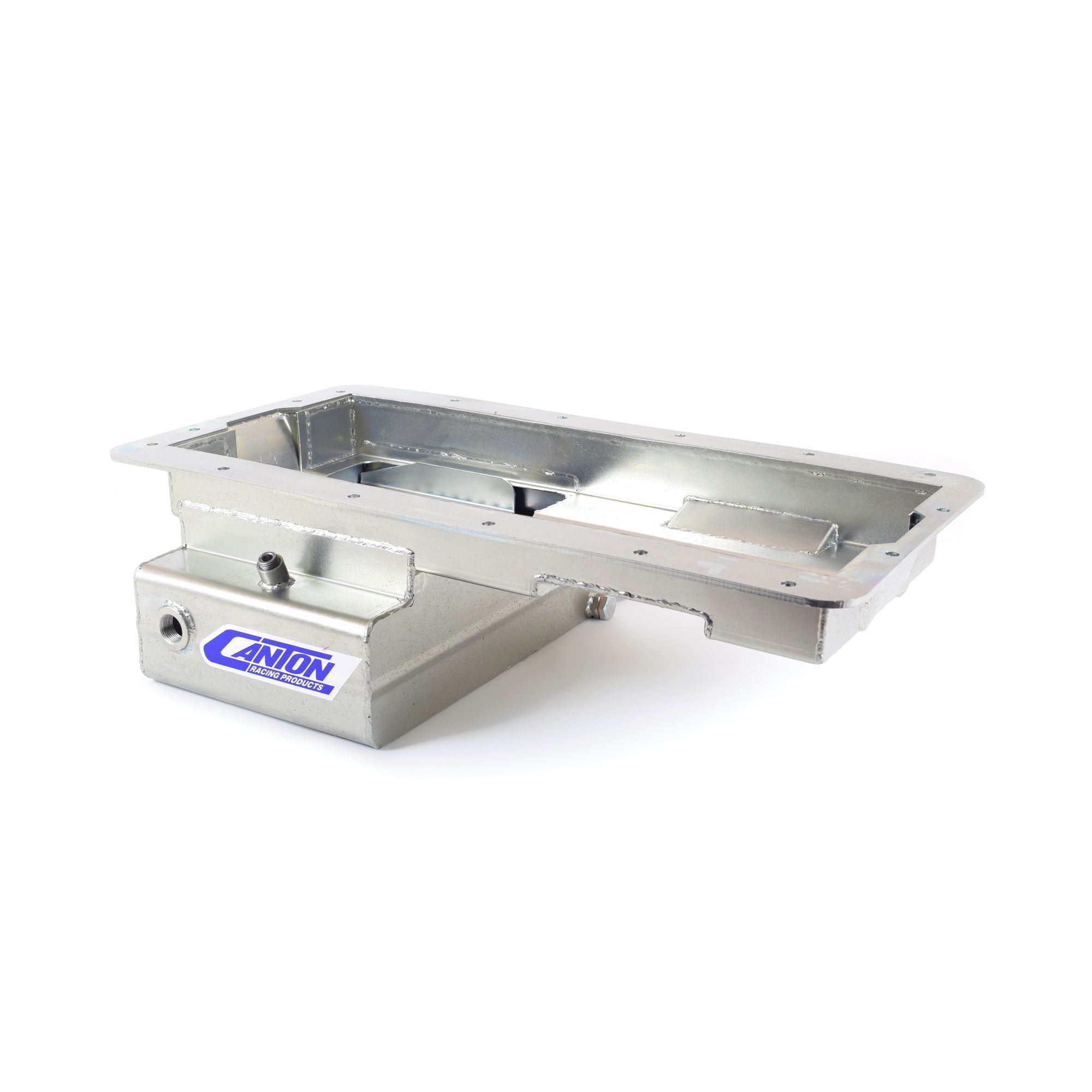

Cantons new 15-738 Ford 5.0 Coyote oil pan is designed for early Ford chassis and others that required a front sump oil pan. The pan is designed with a ?t?sump for extra capacity and is used in road race applications where ground clearance is important. It features a diamond shaped road race baffle assembly with four trap doors and a removable Windage/anti-slosh baffle. For Gen 3 Coyote part #20-937P38 Coyote Gen 3 Louvered Tray Pickup Combo For Oil Pan 15-738 is required.
Additional Attributes:
GTIN: 00887753713414
Baffled: Yes
Capacity: 7 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: Designed for 5.0 Coyote Blocks

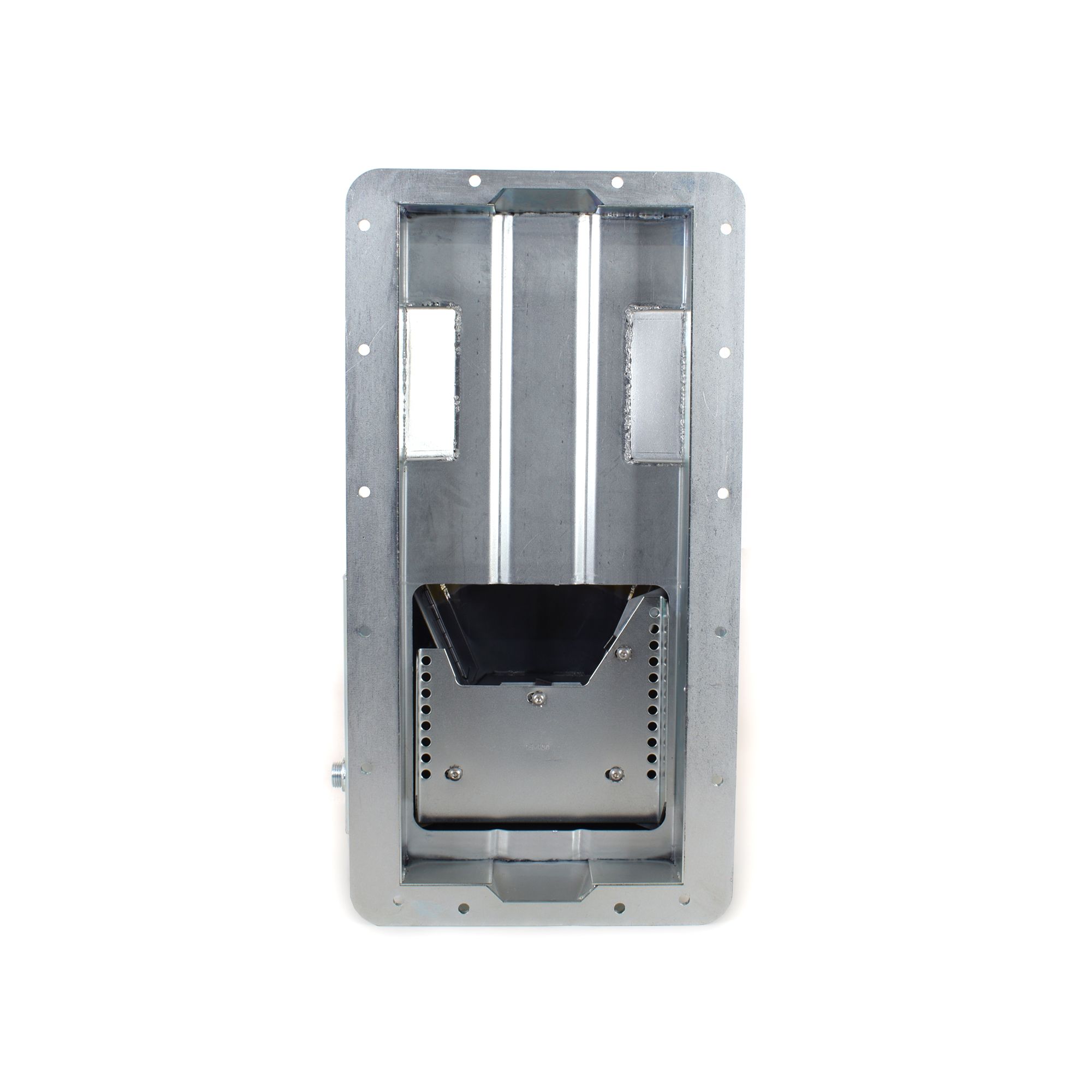

Feature 2: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Feature 3: Removable Windage/Anti-Slosh Baffle
Feature 4: 1/2″ NPT Temperature Bung
Feature 5: 20mm Bung for low Oil Warning Sender
Feature 6: Made In USA
Feature 7: Tig Welded
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 15-739 – Pickup for 5.0 Coyote Front Sump Pan
Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T Fitting
Recommended Accessory 4: 20-937P38 Coyote Gen 3 Louvered Tray Pickup Combo For Oil Pan 15-738
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26.5 x 13.5 x 10 inches
Weight: 15.05 PG
Pan Install – Standard Part B
