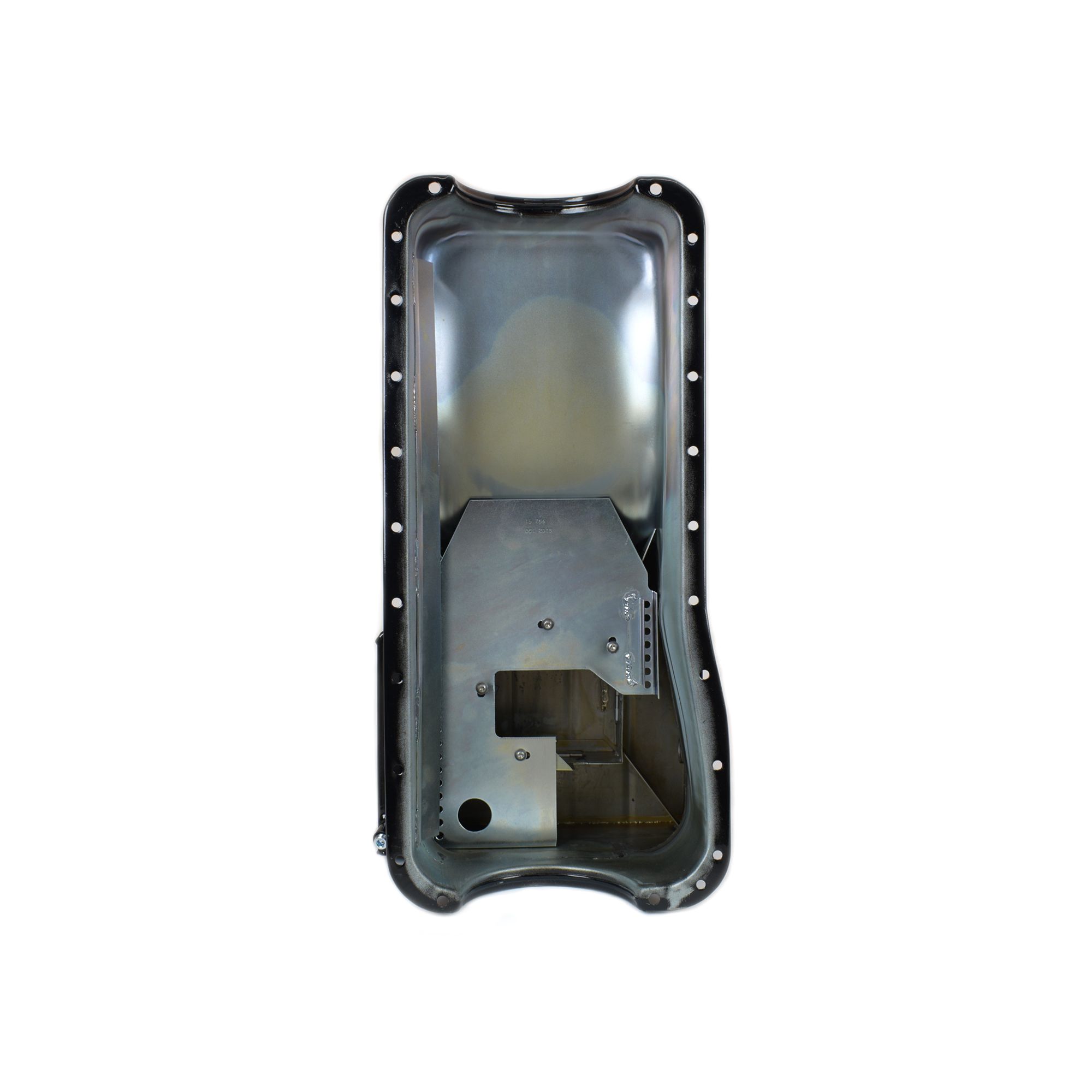

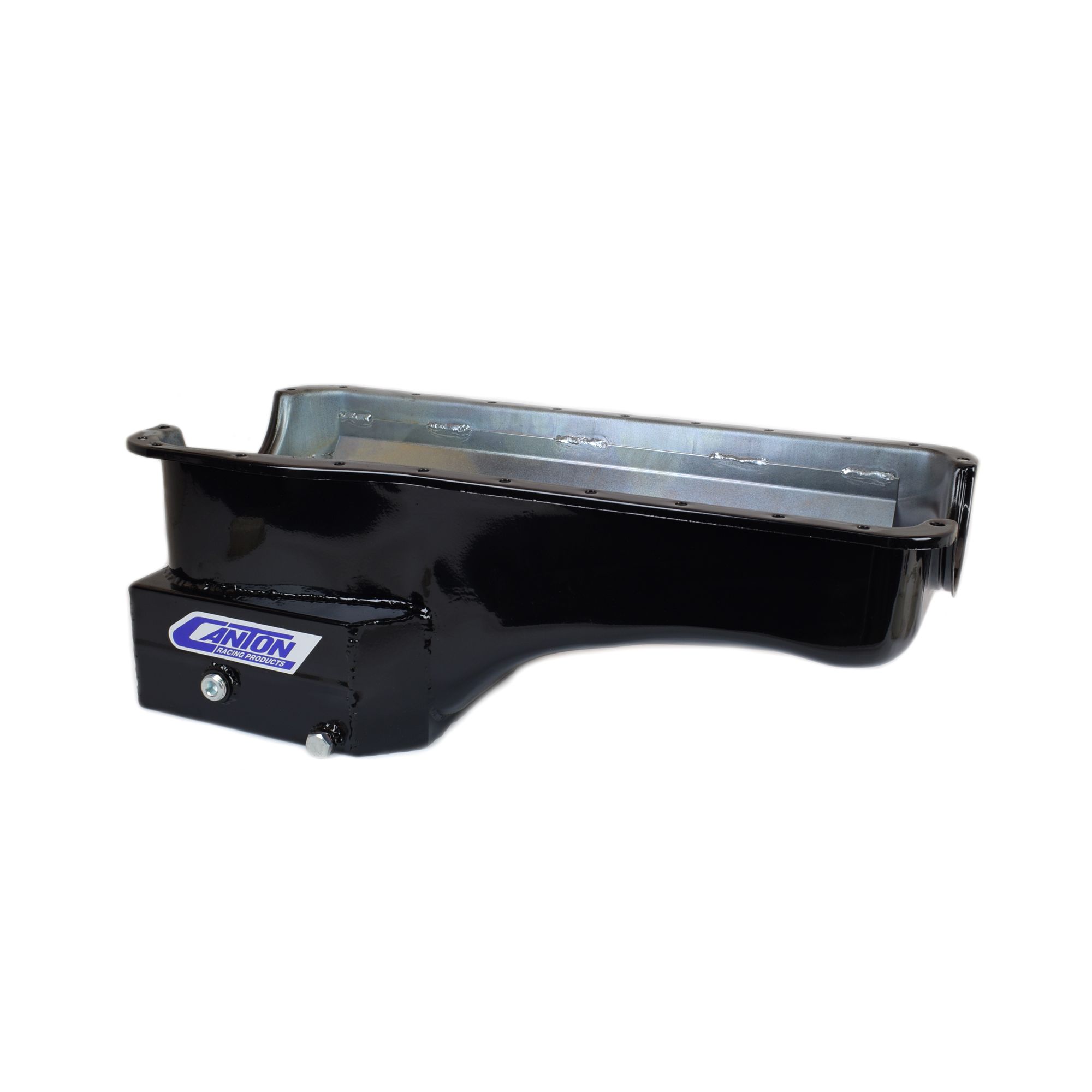

This black powder coat front sump road race pan is for big block Ford 429-460 blocks. It has a 8-1/2" deep, 12" wide sump for a 7 quart system capacity. This pan requires our 15-763 pick-up.
Additional Attributes:
GTIN: 00887753713513
Baffled: Yes
Capacity: 7 Quart System Capacity
Crank Scraper Included: Yes
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 7 qt System Capacity
Feature 2: Shallow “T” Sump Pan Fully Baffled For Road Race
Feature 3: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Feature 4: Crank Scraper
Feature 5: Removable Windage/Anti-Slosh Baffle
Feature 6: 1/2″ NPT Temperature Bung
Feature 7: Provision For Our Pan Mounted Dipstick
Feature 8: Magnetic Drain Plug
Finish: Black Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 15-763 – Pickup for M-84DHV
Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 4: 88-750 – Big Block Ford 429-460 Four Piece Oil Pan Gasket
Stoke: 4.5 inches
Sump Depth: 8.5 inches
Sump Width: 12 inches
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 16 PG
