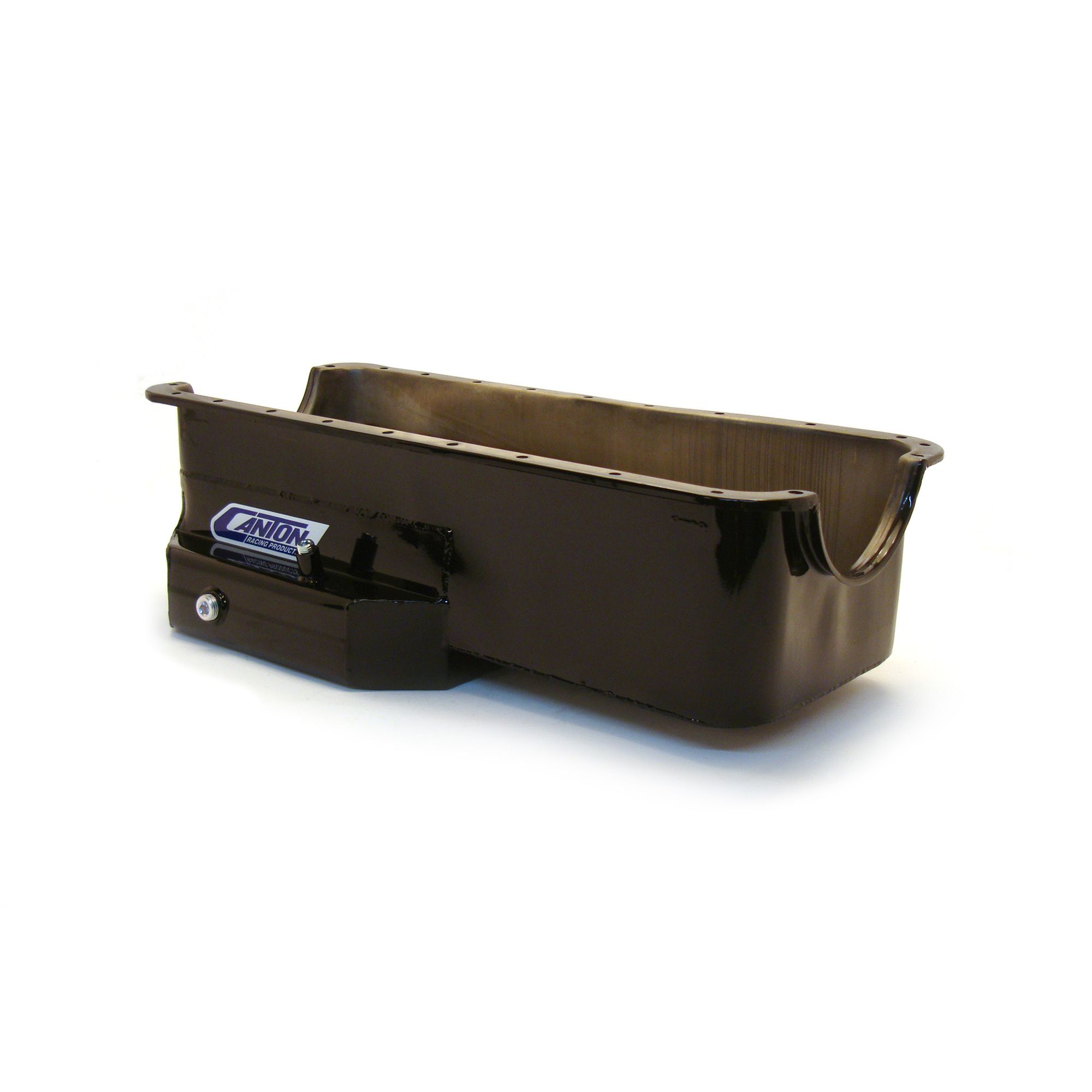

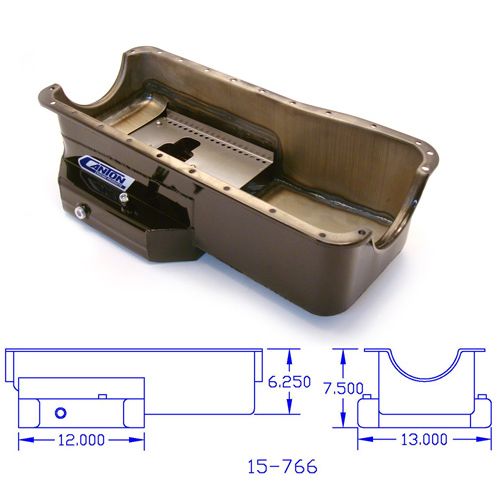

This "T" style rear sump oil pan is designed for Ford 429/460 blocks in Cobras. It has a 7.5? deep, 13? wide by 12? long sump, with an 8 qt system capacity. This pan requires our 15-767 pickup.
Additional Attributes:
GTIN: 00887753713520
Baffled: Yes
Capacity: 8 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 8 qt System Capacity
Feature 2: Shallow “T” Sump Pan Fully Baffled For Road Race
Feature 3: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Feature 4: Crank Scraper
Feature 5: Removable Windage/Anti-Slosh Baffle
Feature 6: 1/2″ NPT Temperature Bung
Feature 7: Provision For Our Pan Mounted Dipstick
Feature 8: Magnetic Drain Plug
Feature 9: Gloss Black Powder Coat Finish for Maximum Durability
Finish: Black Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 15-767 – Pickup for 15-766 pan and M-84DHV Pump
Recommended Accessory 2: 21-066 – Canton 429-460 Steel Main Support
Recommended Accessory 3: 20-966 – Ford 429-460 Main Support Mounted Windage Tray
Recommended Accessory 4: 20-956 – Pickup Mounting Stud for 429-460 Based Engine
Recommended Accessory 5: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 6: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T.
Recommended Accessory 7: 88-750 ? Big Block Ford 429-460 Four Piece Oil Pan Gasket
Stoke: 4.5 inches
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 16 PG
Pan Install – Standard Part B
