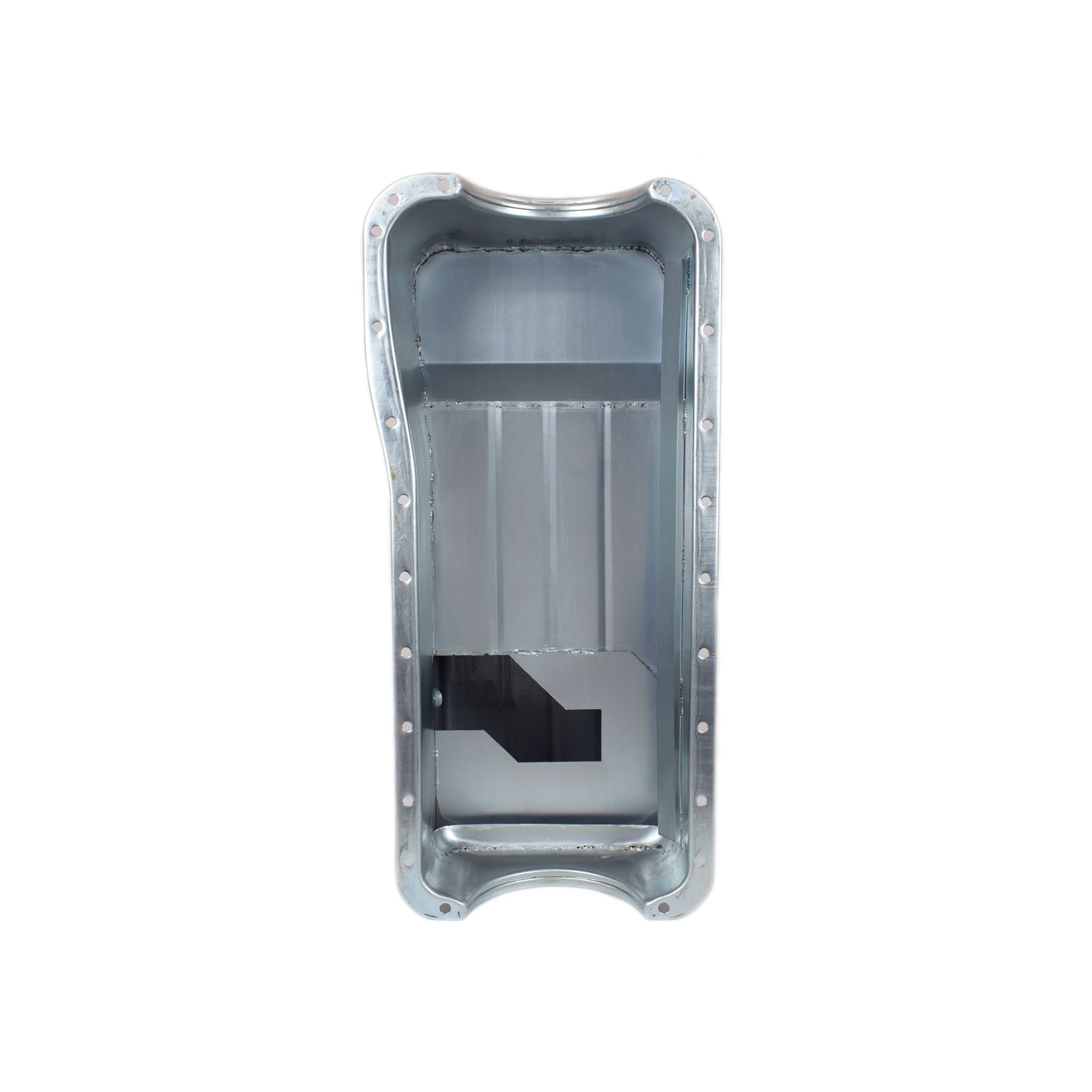

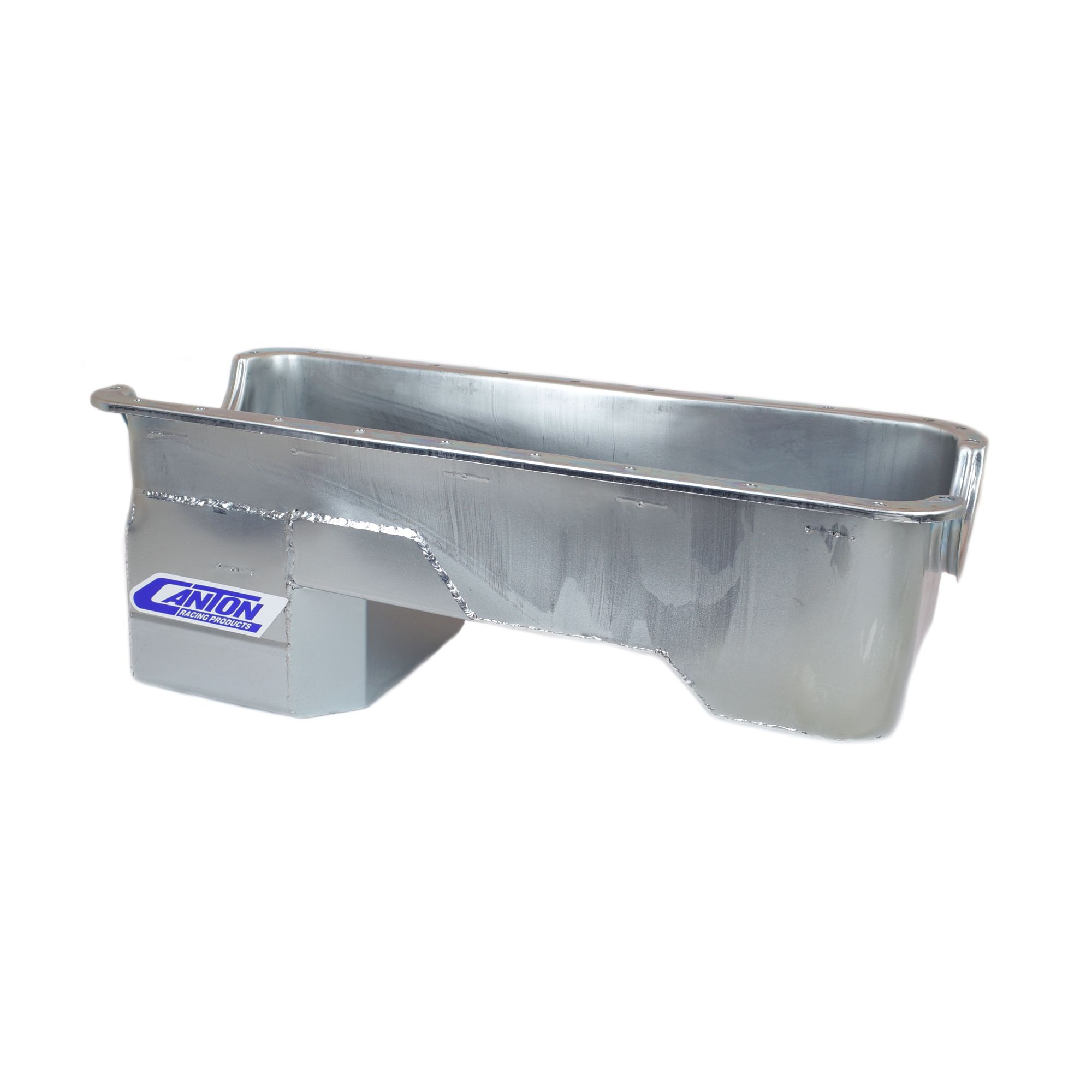

Rear sump for Ford 429-460 blocks for Fox Body Mustang conversions. It has a 9" deep by 7-1/2" long sump giving it a 7 quart system capacity. Note: This Ford 429-460 pan for '79 and up Mustang and '80 & up T-Bird chassis will require special motor mounts and may require modification when used in 79-80 Mustangs. Requires 15-771 pickup for Melling oil pump M84DHV or 15-777 pickup for use with our Main Support #21-066.
Additional Attributes:
GTIN: 00887753713544
Baffled: Yes
Capacity: 7 Quart System Capacity
Crank Scraper Included: Yes
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 7 qt System Capacity
Feature 2: Extra Deep Sump For Increased Oil Control & Capacity
Feature 3: Crank Scraper
Feature 4: Slosh Baffle
Feature 5: Provision For Our Pan Mounted Dipstick
Feature 6: Magnetic Drain Plug
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: No
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 15-771 – Pickup 3/4″ Dia. Inlet
Recommended Accessory 2: 15-777 – Pickup 3/4″ Dia. Inlet for use with Canton Main Support
Recommended Accessory 3: 21-066 – Canton 429-460 Steel Main Support
Recommended Accessory 4: 20-966 – Ford 429-460 Main Support Mounted Windage Tray
Recommended Accessory 5: 20-956 – Pickup Mounting Stud for 429-460 Based Engine
Recommended Accessory 6: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 7: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T.
Recommended Accessory 8: 88-750 ? Big Block Ford 429-460 Four Piece Oil Pan Gasket
Stoke: 4.5 inches
Sump Depth: 9 inches
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 16 PG
Pan Install – Standard Part B
