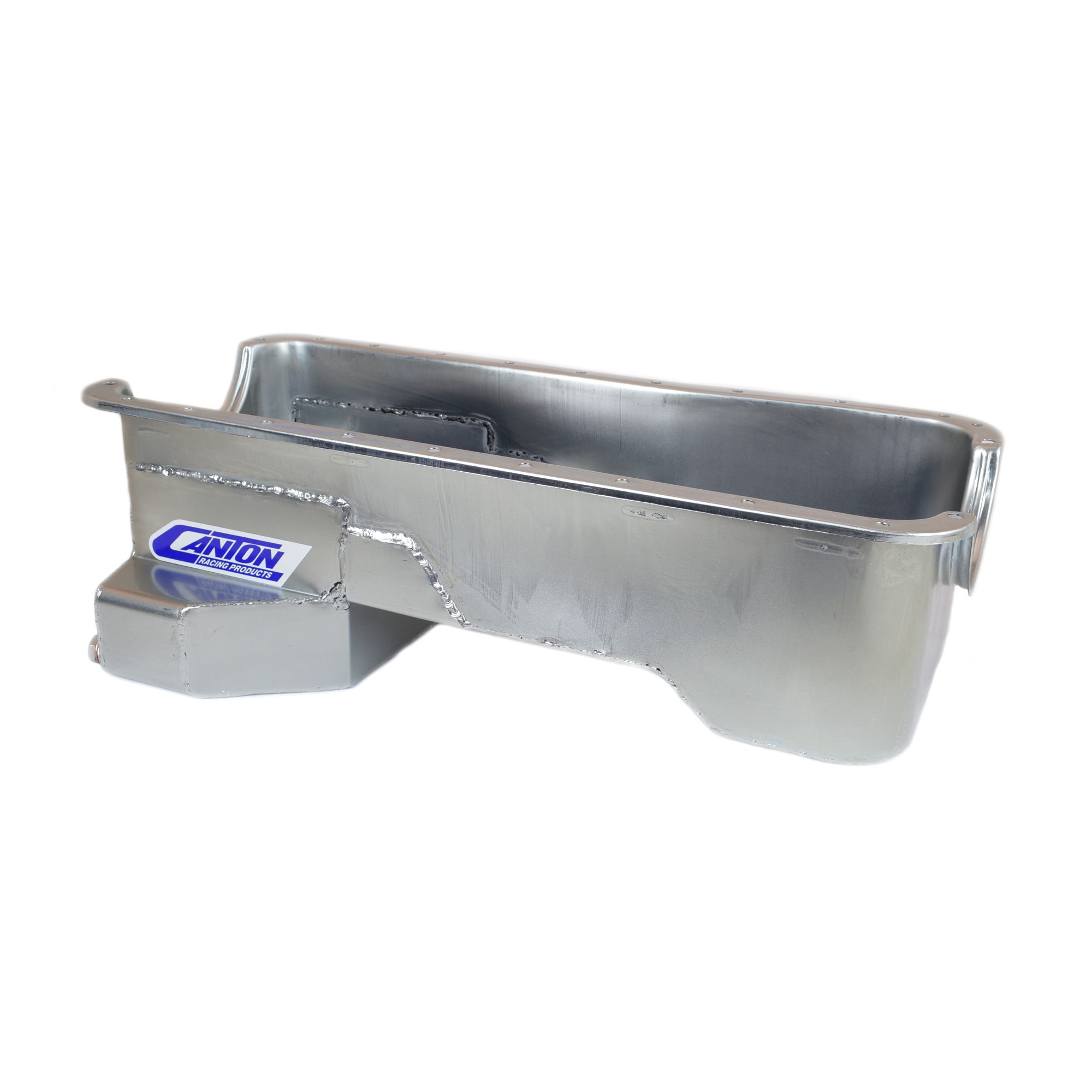

This ?T? style rear sump road race baffled oil pan is designed for Ford 429-460 engines in ?79 and up Mustangs and other rear sump applications, such as Cobra Kits. It has a 7-1/2" deep by 8" long by 13-1/2" wide sump with a 7 quart system capacity. This pan requires our 15-775 pickup & M84DHV Oil pump.
Additional Attributes:
GTIN: 00887753713575
Baffled: Yes
Capacity: 7 Quart System Capacity
Crank Scraper Included: Yes
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 7 qt System Capacity

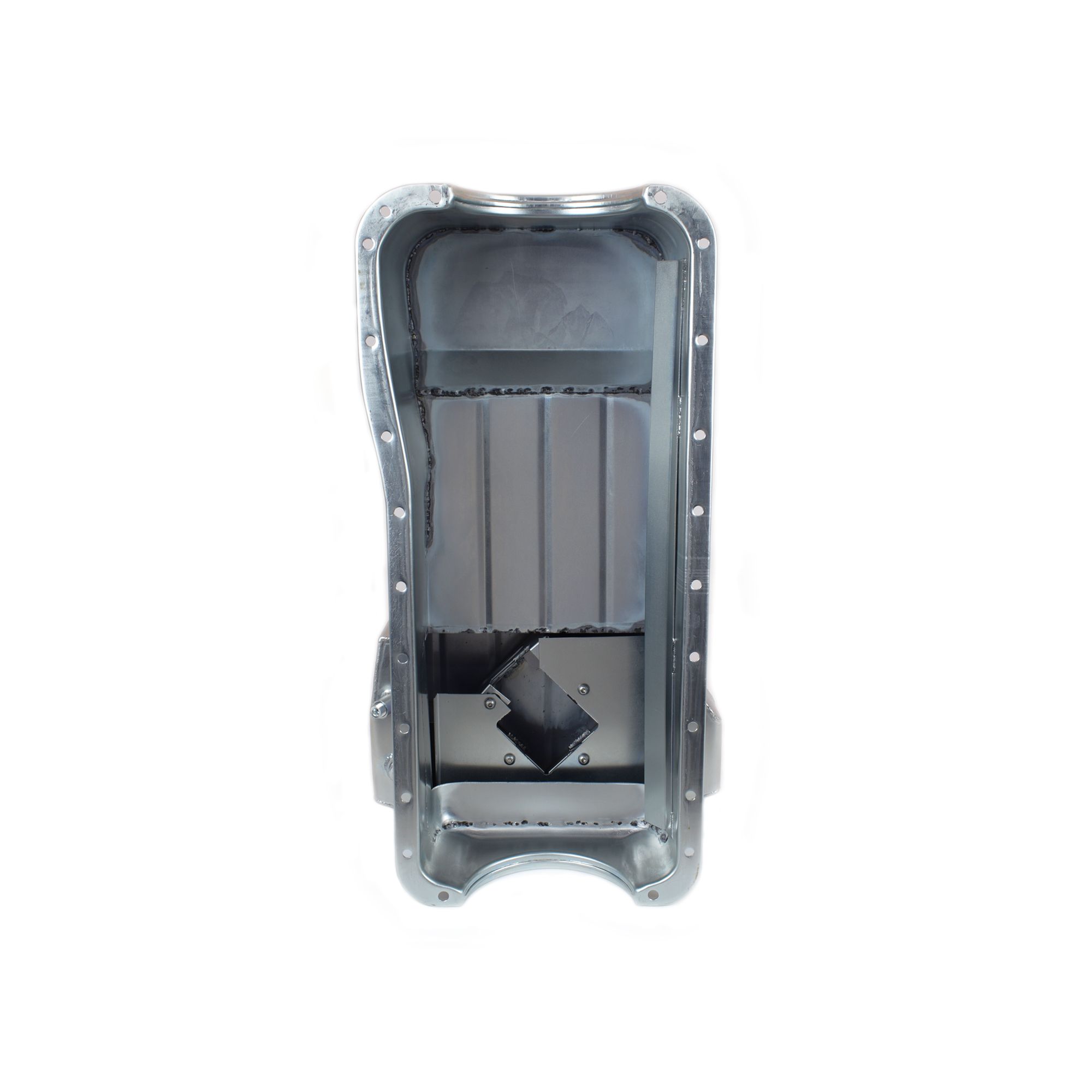

Feature 2: Diamond Shape Road Race Trap Door Baffle Assembly
Feature 3: Crank Scraper
Feature 4: Removable Windage/Anti-Slosh Baffle
Feature 5: 1/2″ NPT Temperature Bung
Feature 6: Provision For Our Pan Mounted Dipstick
Feature 7: Magnetic Drain Plug
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 15-775 – Pickup
Recommended Accessory 2: 20-956 – Pickup Mounting Stud for 429-460 Based Engines
Recommended Accessory 3: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 4: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 5: 88-750 ? Big Block Ford 429-460 Four Piece Oil Pan Gasket
Stoke: 4.5 inches
Sump Depth: 7.5 inches
Sump Width: 13.5 inches
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 16 PG
Pan Install – Standard Part B
