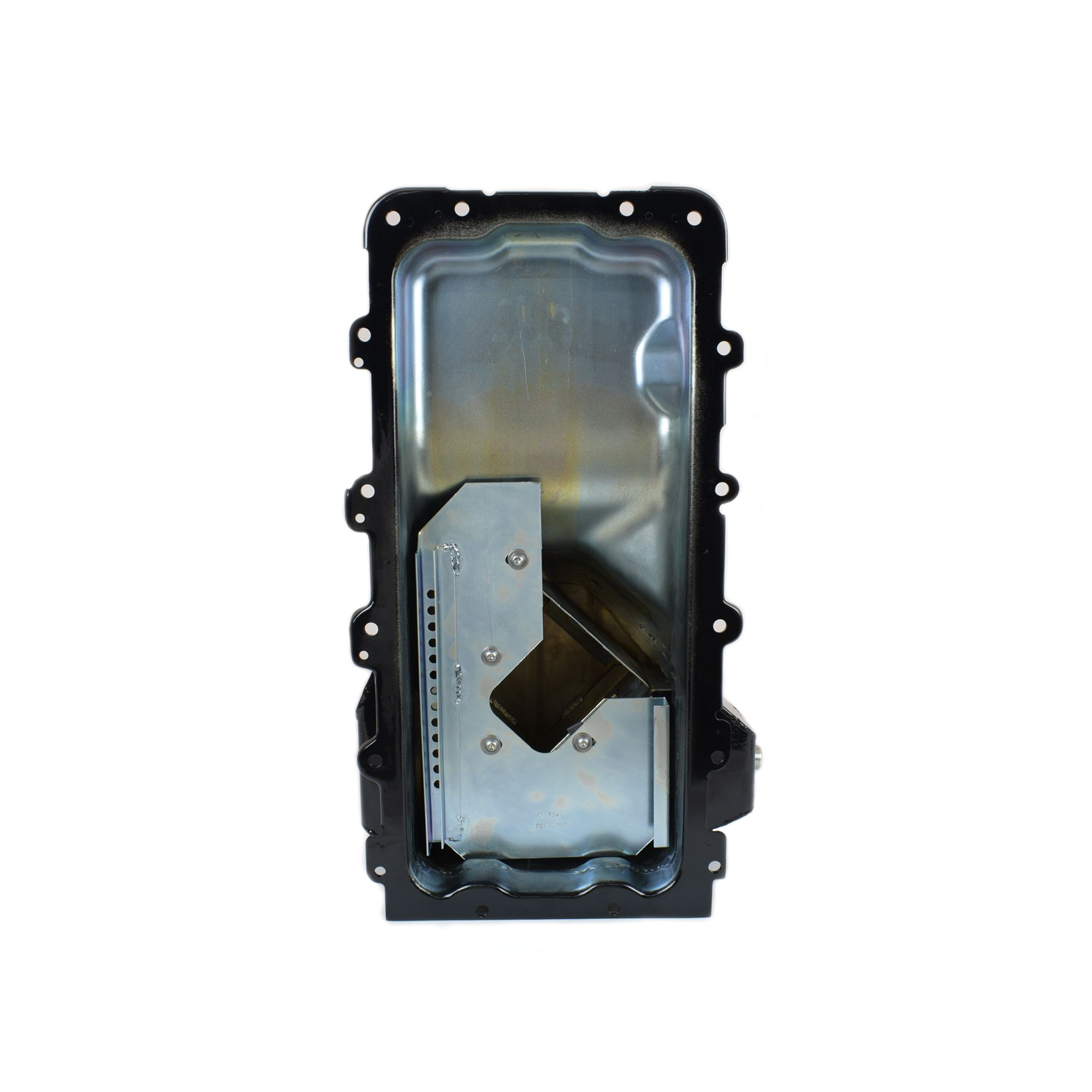

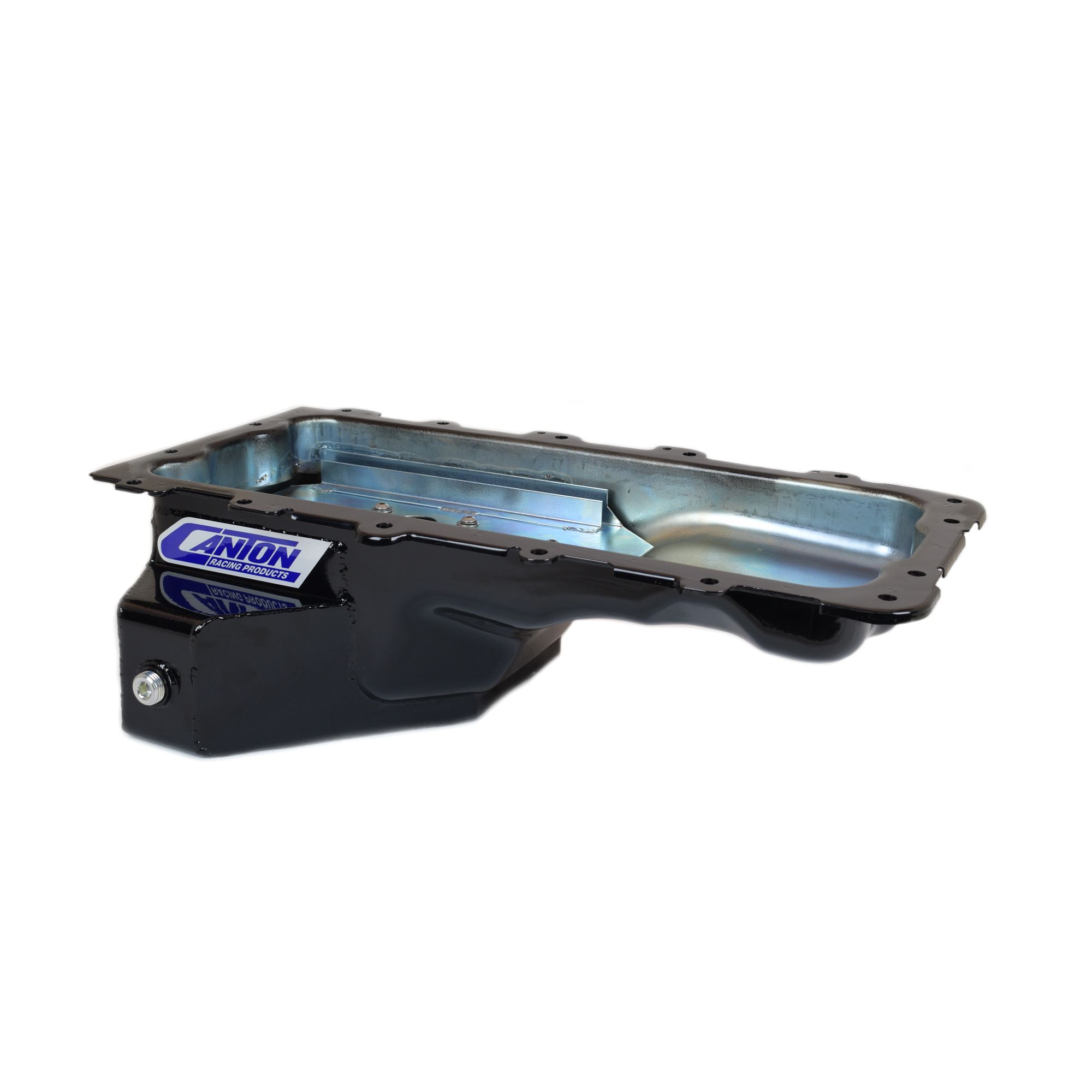

This black powder coat ?T? style modular rear sump road race oil pan is designed for Ford 4.6L/5.4L blocks in ?96-?04 & ?05-up Mustangs. It has 6-1/4" deep, 12-3/4" wide by 9-1/4" long sump and a 7 quart system capacity. Use Your OEM pickup for this pan.
Additional Attributes:
GTIN: 00887753713650
Baffled: Yes
Capacity: 7 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: No
Drain Plug Included: Yes
Feature 1: Uses stock pickup * 7 qt System Capacity
Feature 2: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Feature 3: Removable Windage/Anti-Slosh Baffle
Feature 4: 1/2″ NPT Temperature Bung
Feature 5: Magnetic Drain Plug
Feature 6: Black Powdercoat
Finish: Black Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 20-939 – Ford 4.6L/5.4L Screen Windage Tray
Recommended Accessory 2: 88-780 ? Modular Ford 4.6L/5.4L One Piece Oil Pan Gasket
Stoke: 106MM
Sump Depth: 6.25 inches
Sump Width: 12.75 inches
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 16 PG
Pan Install – Standard Part B
