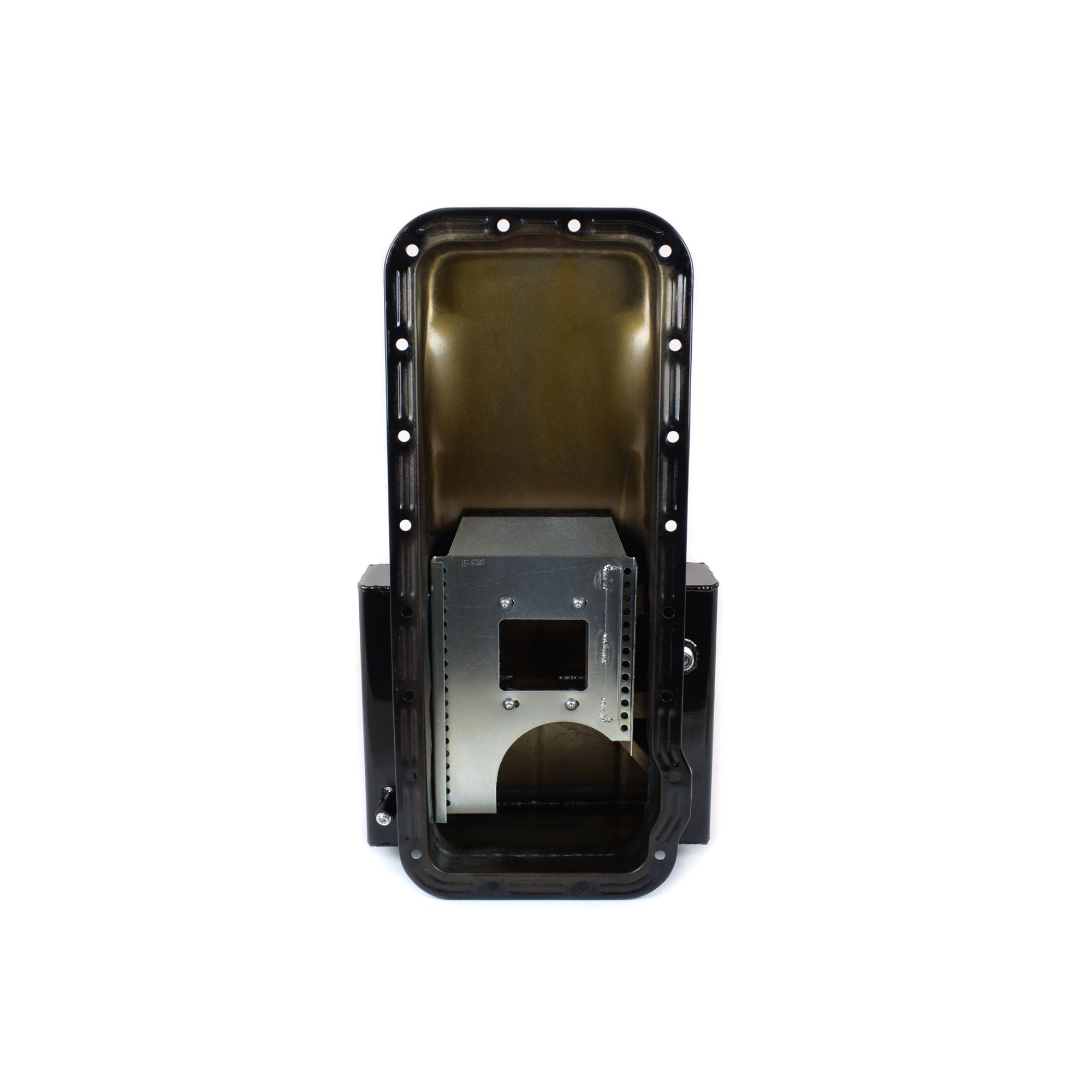

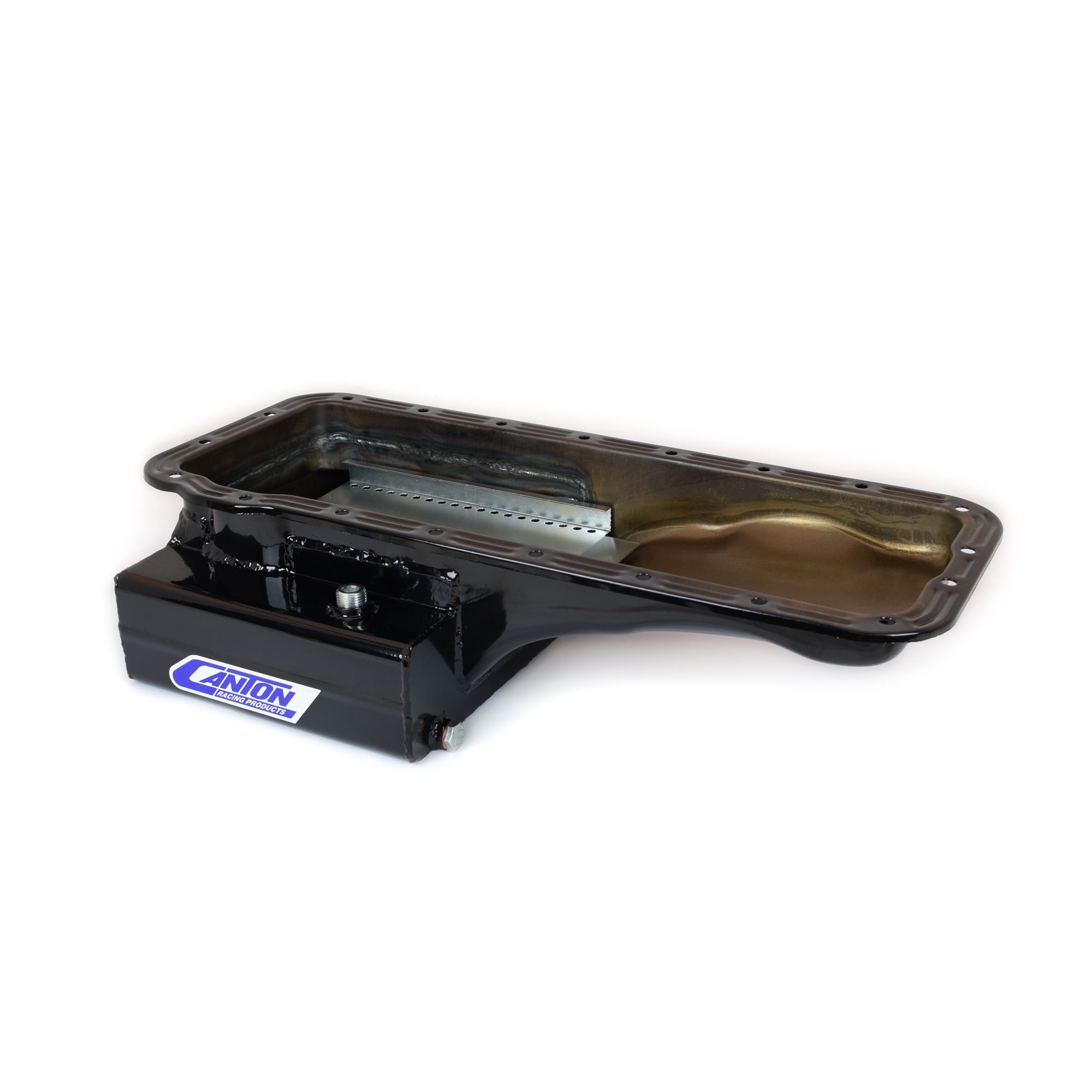

This front sump Ford 332-428FE road race black powdercoated oil pan is ideal for Mustangs or Cobra Kit Cars. It has a 6" deep, 13" wide by 10" long sump for an 8 quart system capacity. "T" style sump to increase capacity without losing ground clearance. This pan requires our 15-821 pickup.
Additional Attributes:
GTIN: 00887753713803
Baffled: Yes
Capacity: 8 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 8 qt System Capacity
Feature 2: Diamond Shape Road Race Baffle Assembly With Six Trap Doors
Feature 3: Removable Windage/Anti-Slosh Baffle
Feature 4: 1/2″ NPT Temperature Bung
Feature 5: Provision For Our Pan Mounted Dipstick
Feature 6: Magnetic Drain Plug
Finish: Black Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 15-821 – Pickup 3/4″ Dia. Inlet
Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 4: 20-938 – Ford 332-428FE Screen Windage Tray
Stoke: 4.125 inches
Sump Depth: 6 inches
Sump Width: 13 inches
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 16 PG
Pan Install – Standard Part B
