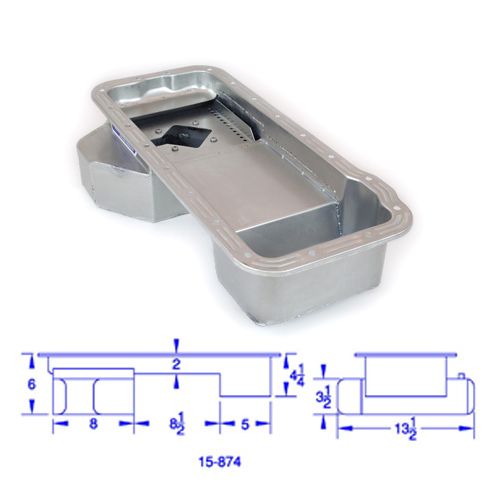

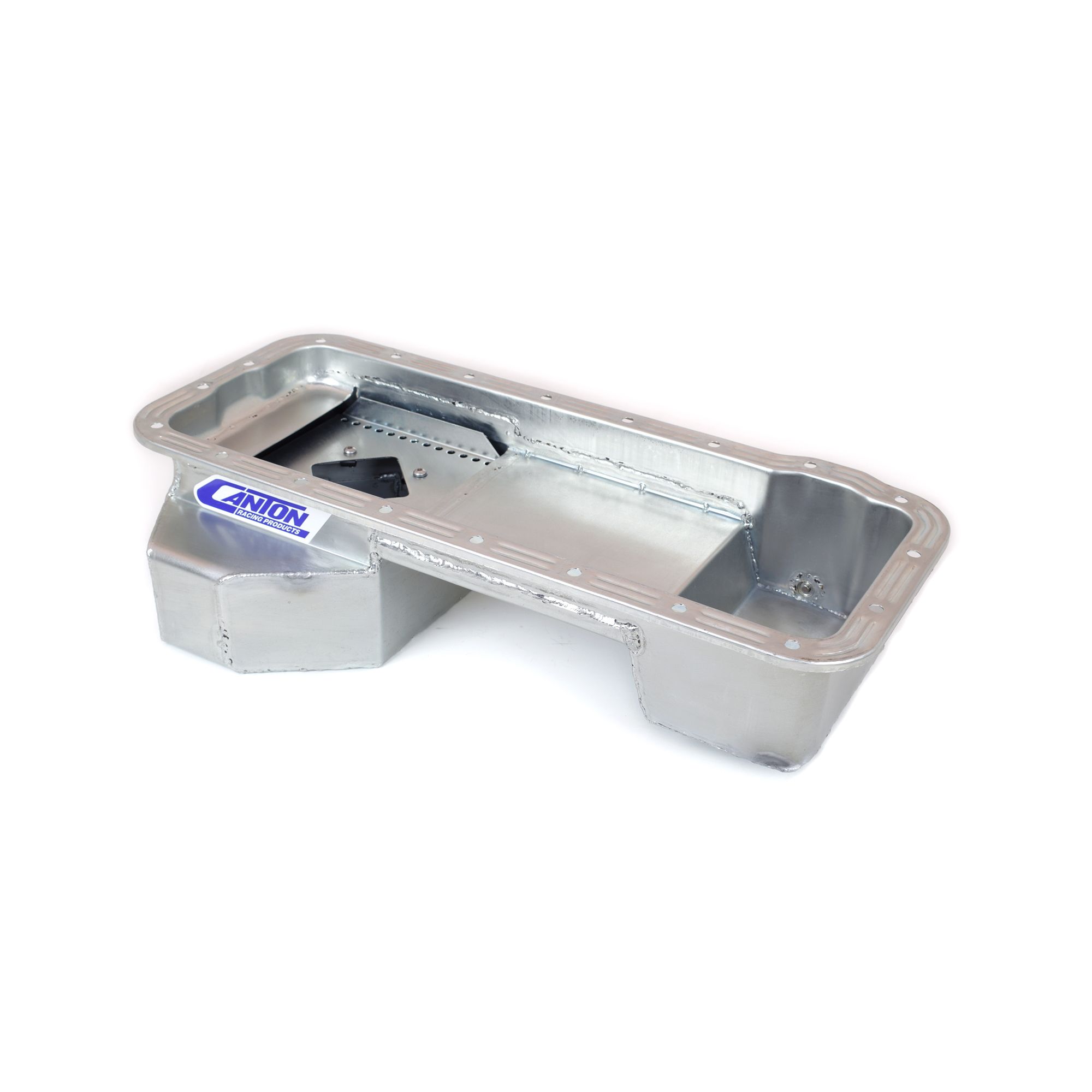

This "T" style Ford 332-428 FE rear sump oil pan is is designed for early Mustangs with Rack and Pinion conversion front ends installed, or 79 to 93 Mustang, 80-97 T-Birds, or Rear Sump Cobra Kit Cars. It has a 6? deep, 13? wide by 8? long sump with a 7 quart system capacity. This pan requires our 15-875 pickup.
Additional Attributes:
GTIN: 00887753713858
Baffled: Yes
Capacity: 7 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 7 qt System Capacity
Feature 2: Diamond Shape Road Race Baffle Assembly With Six Trap Doors
Feature 3: 1/2″ NPT Temperature Bung
Feature 4: Provision For Our Pan Mounted Dipstick
Feature 5: Magnetic Drain Plug
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 15-875 – Pickup for FE 15-784 Pan
Recommended Accessory 2: 20-938 – Ford 332-428 FE Screen Windage Tray
Recommended Accessory 3: 88-800 ? Ford FE Oil Pan Gasket
Recommended Accessory 4: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 5: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 6: 20-953 – Pickup Main Cap Mounting Stud for Ford 332-428 FE Based Engines
Stoke: 4.125 inches
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26.5 x 13.25 x 10.25 inches
Weight: 16.1 PG
Pan Install – Standard Part B
