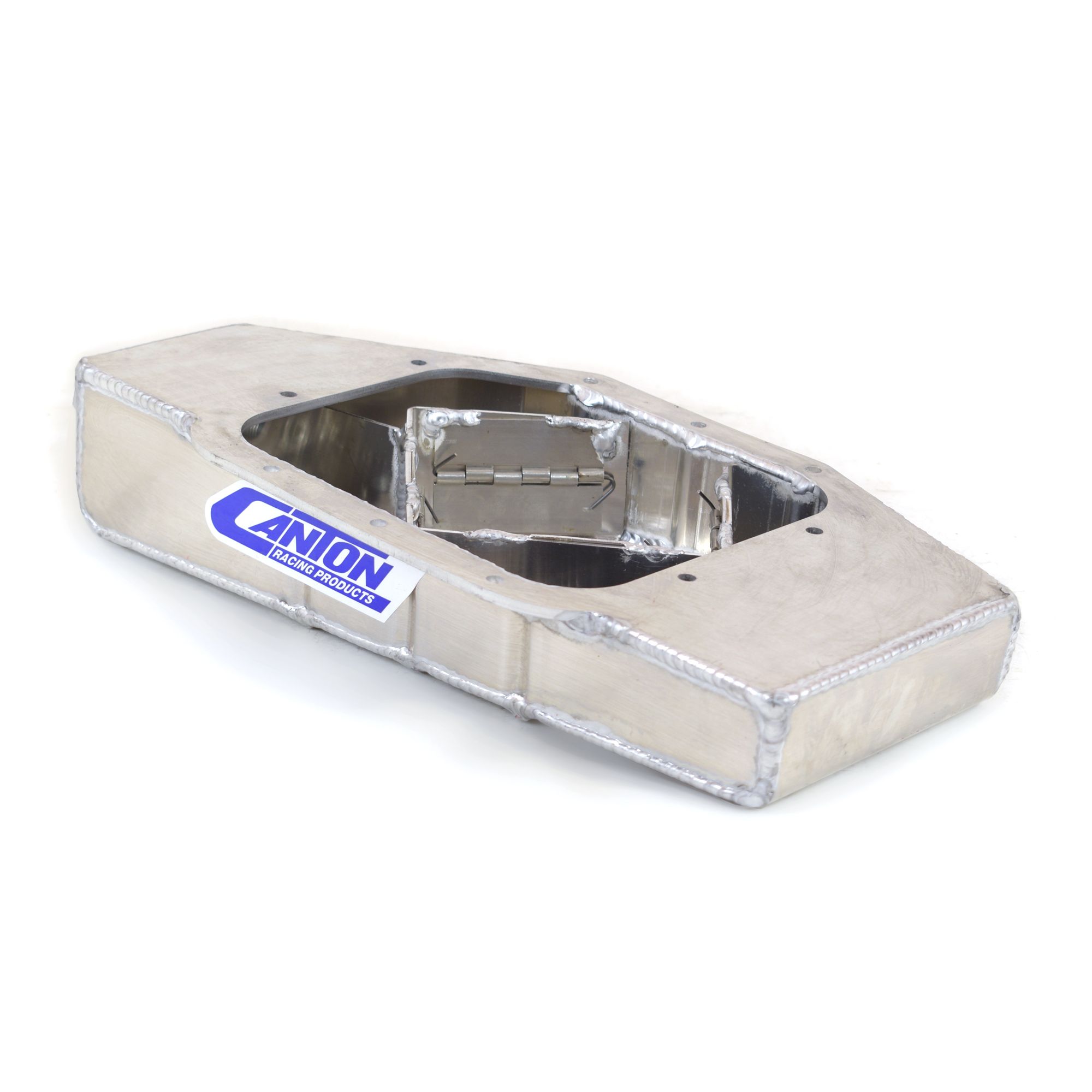

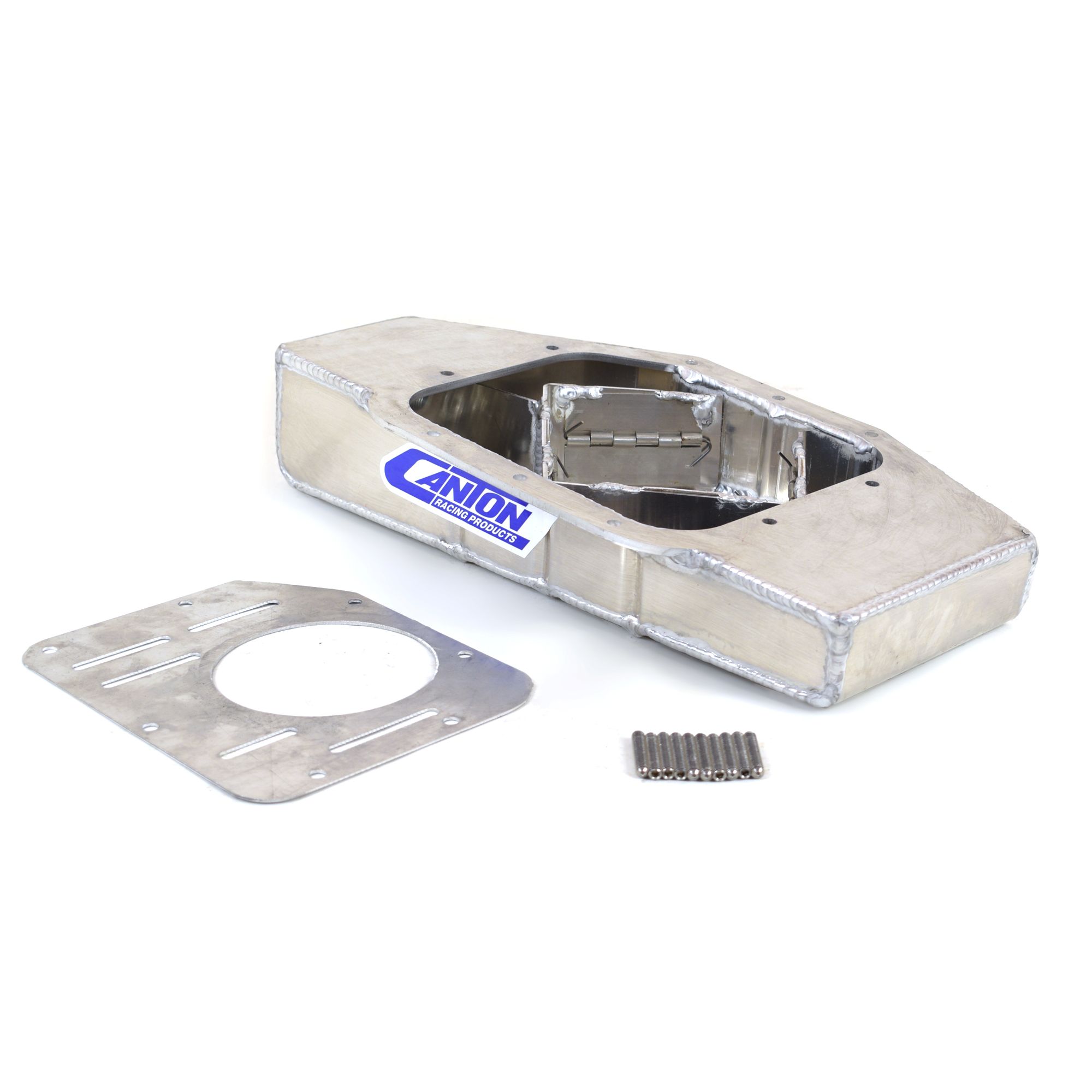

Canton 15-934A Oil Pan for Nissan SR20 Baffled Lower Aluminum Pan

This fabricated aluminum Nissan Sr20 oil pan is the best way to upgrade the oiling system on your Nissan Sr20 motor. The pan includes our diamond shape road race baffle along with an upgrade anti slosh/windage tray to improve oil control. extra capacity is also provided by the extended sides and a 1/2" NPT bung for the turbo drain back.

Additional Attributes:

GTIN: 00887753713933
Baffled: Yes
Capacity: 1.5 Quart Capacity
Crank Scraper Included: No
Dipstick Port: No
Drain Plug Included: Yes
Engine: Nissan Sr20
Feature 1: .190 Aluminum Mounting Rail
Feature 2: Diamond Shape Road Race Baffle
Feature 3: Anti-Slosh Baffle to Replace Plastic OE Piece
Feature 4: 1/2 NPT Turbo Drain / Temp Sensor Bung
Feature 5: Includes Stainless Steel Mounting Hardware
Feature 6: Magnetic Drain Plug
Finish: Raw Aluminum
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: .100 Aluminum
Pickup Included: No
Windage Tray Included: No

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 11 x 22 x 8 inches
Weight: 6.5 PG

PDF:

Pan Install – Standard Part B
