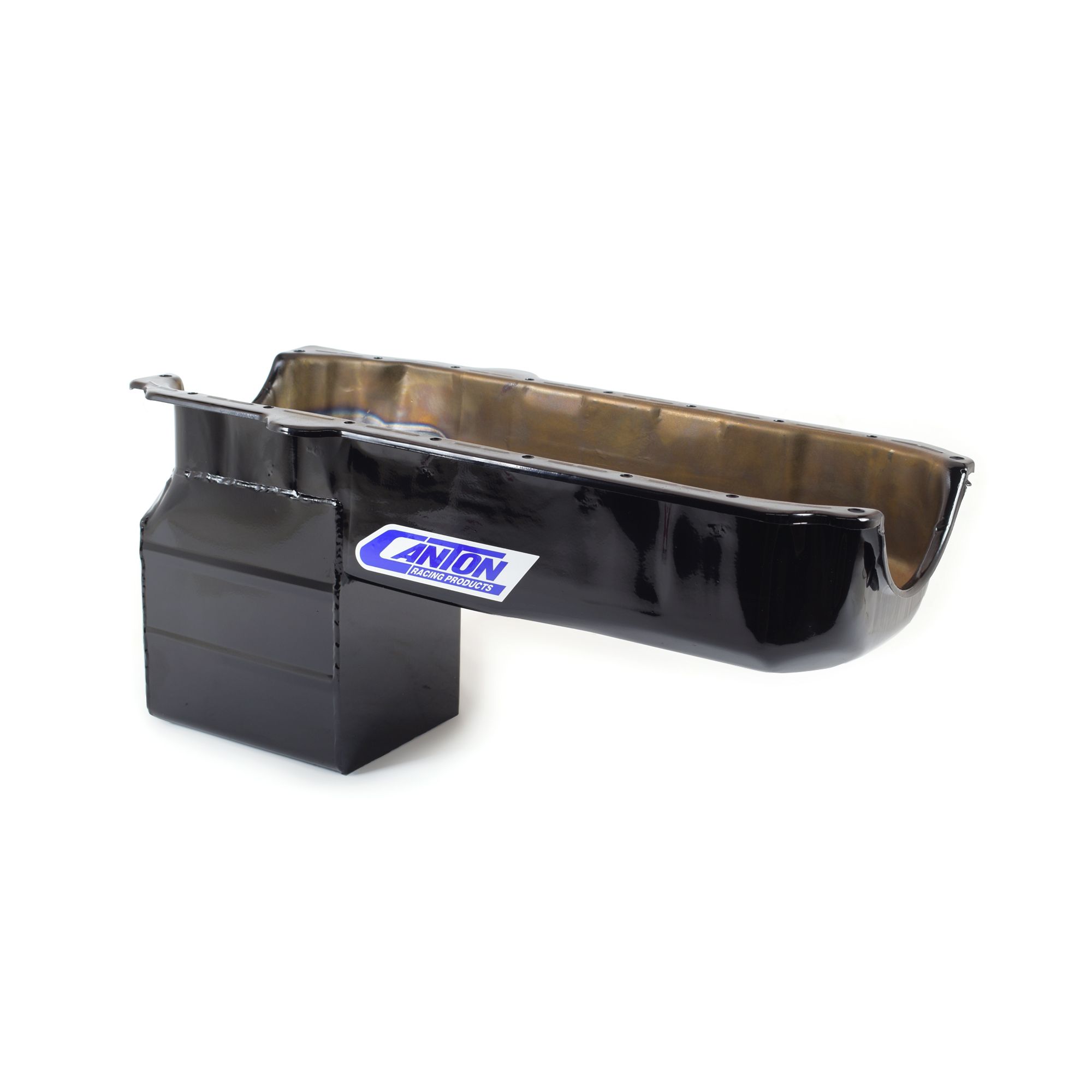

Canton 16-100 Oil Pan Small Block Chevy S10 Truck Conversion Black Powder Coat

$666.56

Designed for 5.0 Coyote Blocks
Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Removable Windage/Anti-Slosh Baffle
1/2″ NPT Temperature Bung
20mm Bung for low Oil Warning Sender
Made In USA
Tig Welded

SKU: BGTF-16-100 Category: Engine Oil Pan

This SBC S-10 V-8 conversion oil pan is for pre-'86 blocks. It is designed to install a Chevy small block into the popular S-10 / S-15 pickup & Blazer 4×4 chassis when used in conjunction with Hooker Mount #12610 and Hooker Headers #2839. The 10" deep sump gives a 7 quart system capacity. This pan requires a M210S or M211S pickup.

Additional Attributes:

GTIN: 00887753714077
Baffled: Yes
Capacity: 7 Quart System Capacity
Crank Scraper Included: Yes
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 7 qt System Capacity
Feature 2: Crank Scraper
Feature 3: Slosh Baffle

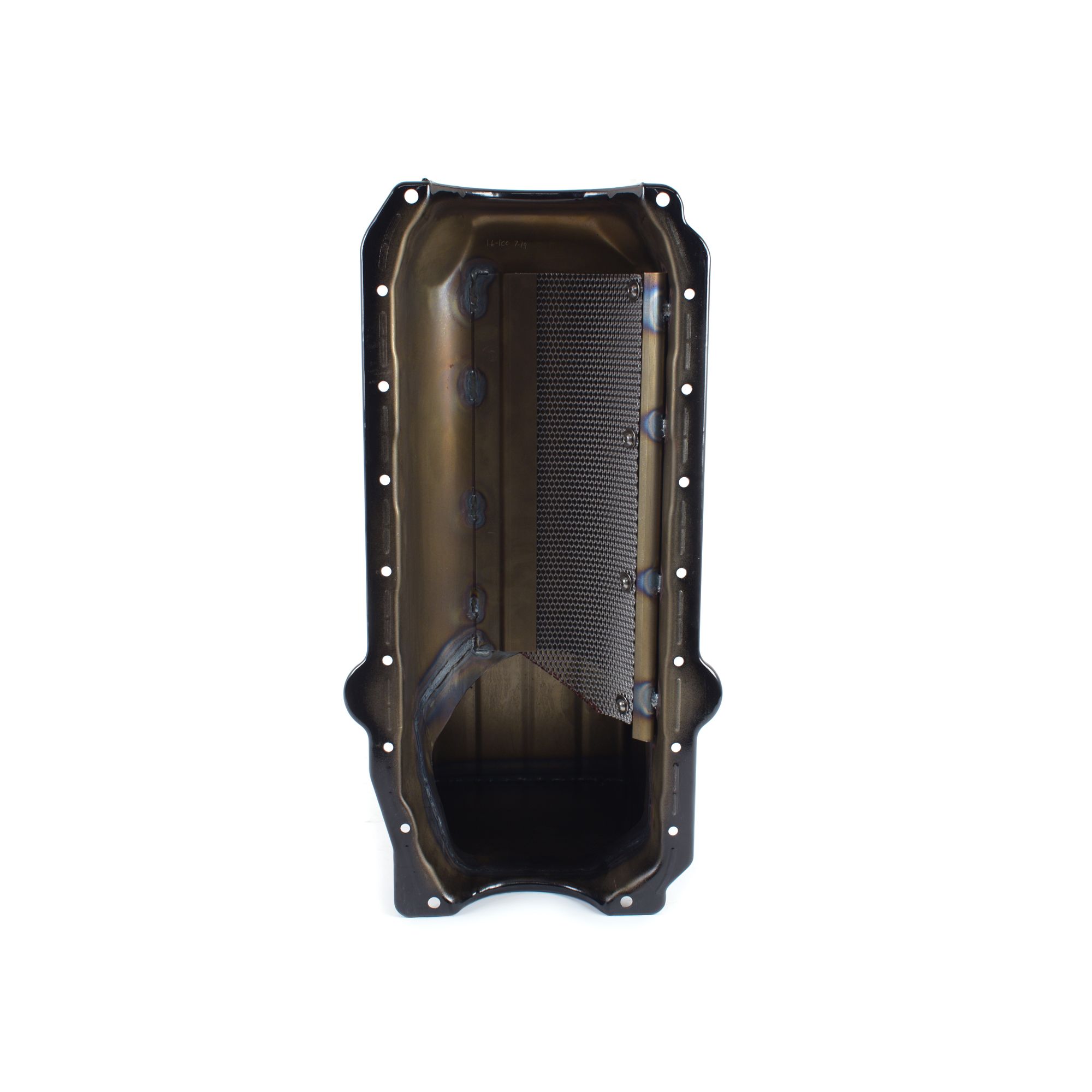

Feature 4: Built In Screen Windage Tray
Feature 5: Provision For Our Pan Mounted Dipstick
Feature 6: Magnetic Drain Plug
Finish: Black Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: Steel
Pickup Included: No
Recommended Accessory 1: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 2: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 3: 88-100 – SBC Pre ?85 Oil Pan Gasket
Stoke: 3.875 inches
Sump Depth: 10 inches
Sump Width: 7.75 inches
Windage Tray Included: Yes
