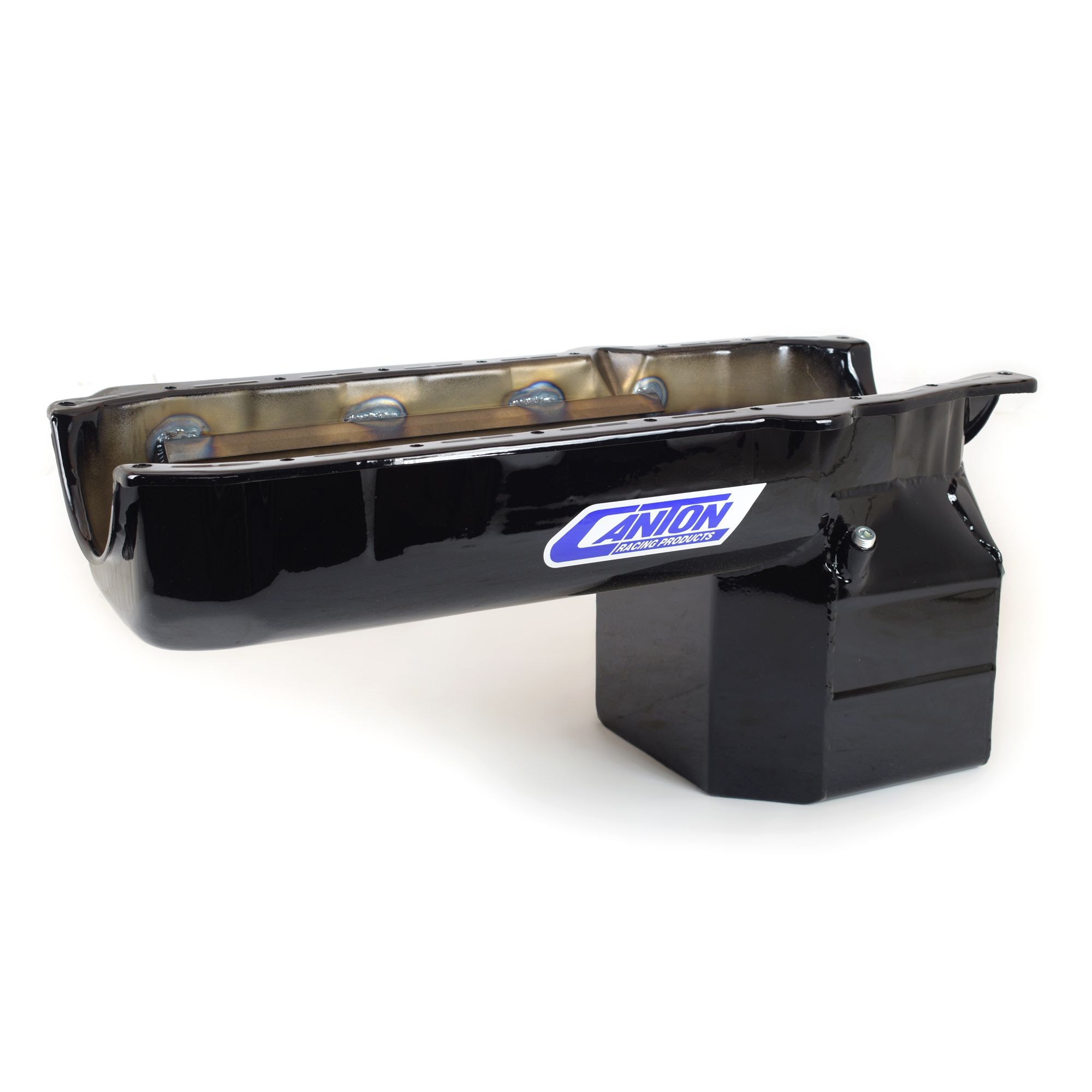

This SBC S-10 V-8 conversion oil pan is for '86 and newer blocks with a one piece seal. It is designed to install a Chevy small block into the popular S-10 / S-15 pickup & Blazer 4×4 chassis when used in conjunction with Hooker Mount #12610 and Hooker Headers #2839. The 10" deep sump gives a 7 quart system capacity. This pan requires a M210S or M211S pickup.
Additional Attributes:
GTIN: 00887753714084
Baffled: Yes
Capacity: 7 Quart System Capacity
Crank Scraper Included: Yes
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 7 qt System Capacity
Feature 2: Crank Scraper
Feature 3: Slosh Baffle
Feature 4: Built In Screen Windage Tray
Feature 5: Provision For Our Pan Mounted Dipstick
Feature 6: Magnetic Drain Plug
Finish: Black Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: Steel
Pickup Included: No
Recommended Accessory 1: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 2: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 3: 88-100T ? SBC 86+ Oil Pan Gasket
Stoke: 3.875 inches

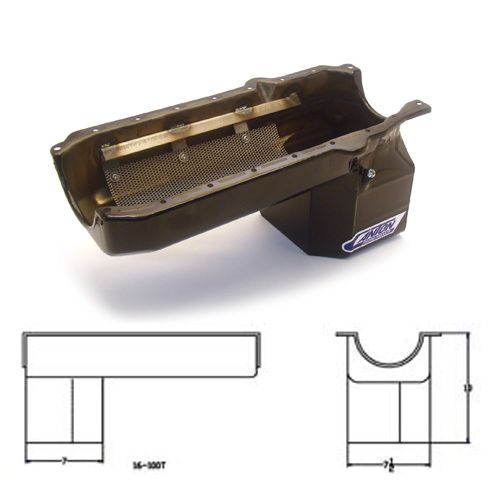

Sump Depth: 10 inches
Sump Width: 7.75 inches
Windage Tray Included: Yes
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 15 PG
Pan Install – Standard Part B
