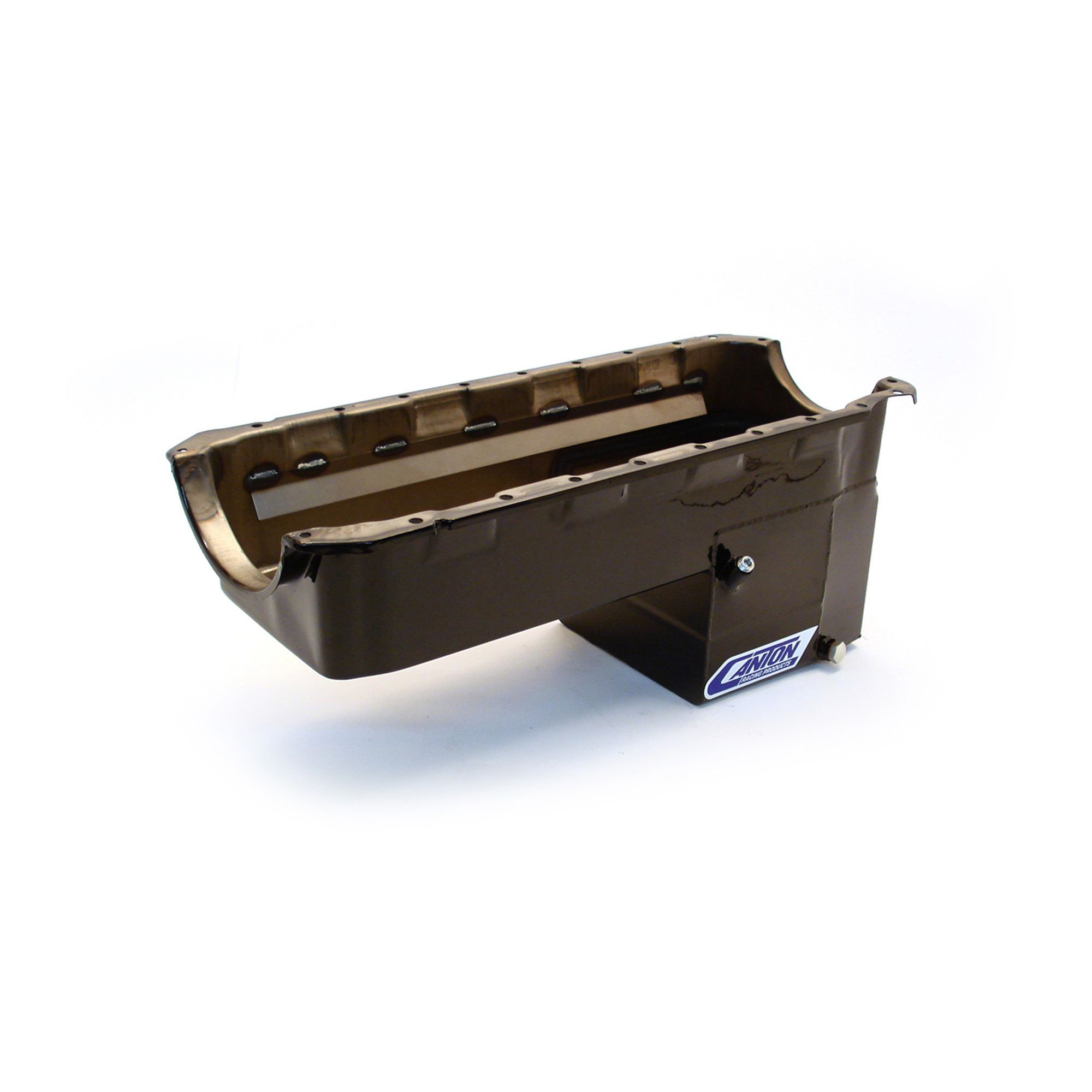

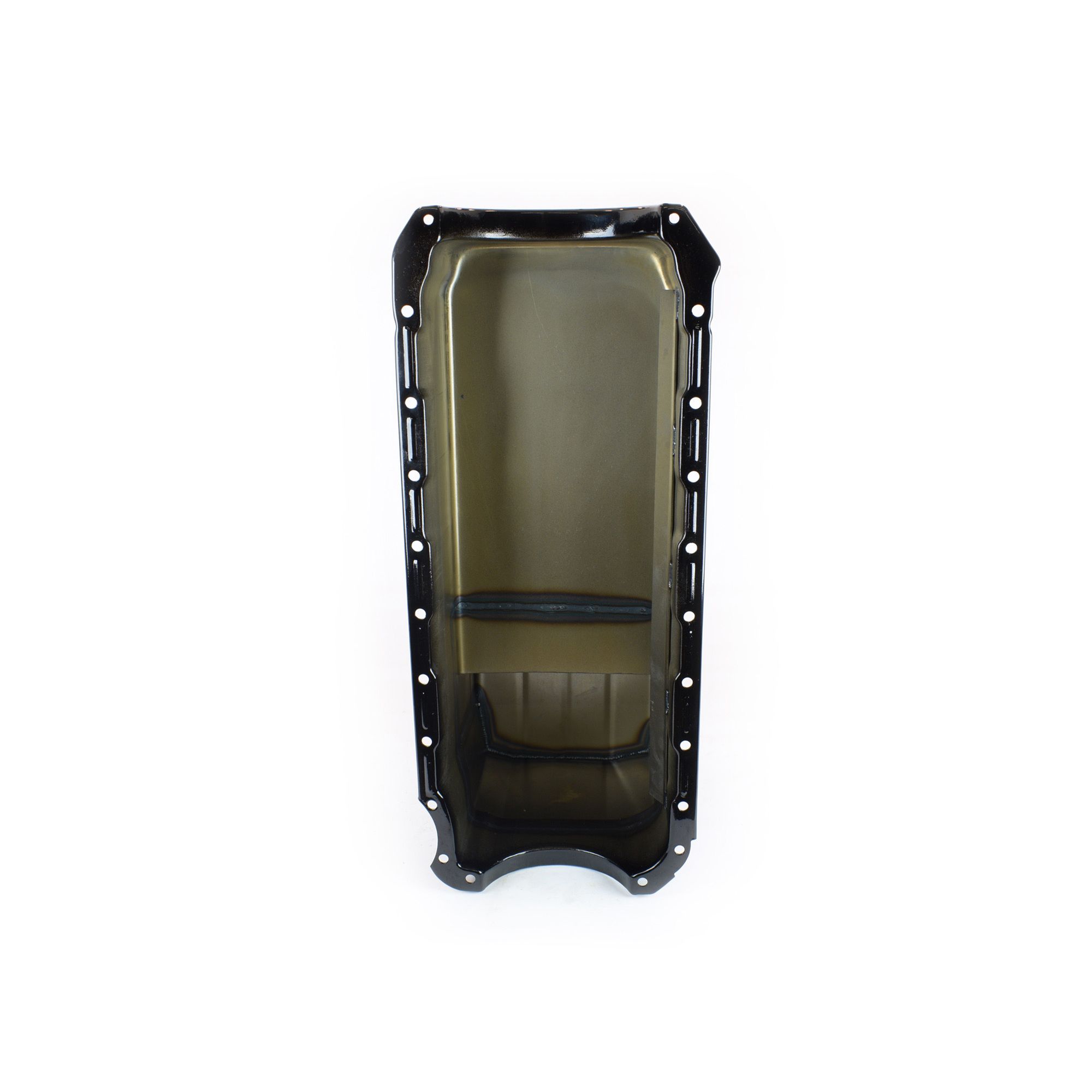

This oil pan is designed for Mark 4 Big Block Chevys in 67-01 Chevy 4×4 chassis. It's 10? deep sump design provides superior oil control and an 8 quart system capacity. This pan requires our 16-331 pick up.
Additional Attributes:
GTIN: 00887753714114
Baffled: Yes
Capacity: 8 Quart System Capacity
Crank Scraper Included: Yes
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 8 qt System Capacity
Feature 2: Crank Scraper
Feature 3: Slosh Baffle
Feature 4: Provision For Our Pan Mounted Dipstick
Feature 5: Magnetic Drain Plug
Feature 6: Gloss Black Powder Coat Finish
Finish: Black Gloss Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: No
Material: 14 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 16-331 – BBC Pickup for M77/M77HV Oil Pumps
Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 4: 88-300 – BBC Mk IV Oil Pan Gasket
Stoke: 4.5 inches
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26.5 x 13.25 x 10.25 inches
Weight: 18.35 PG
Pan Install – Standard Part B
