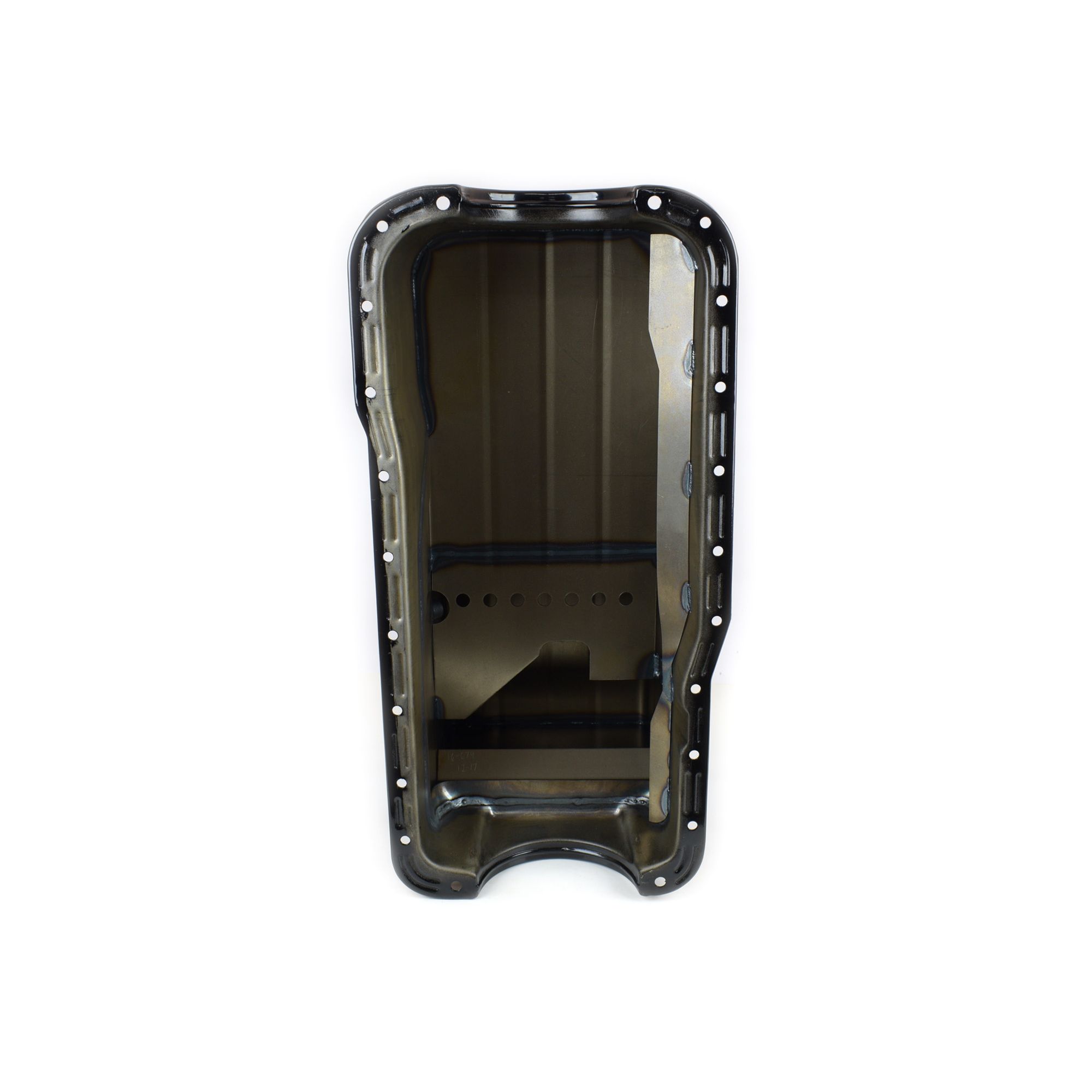

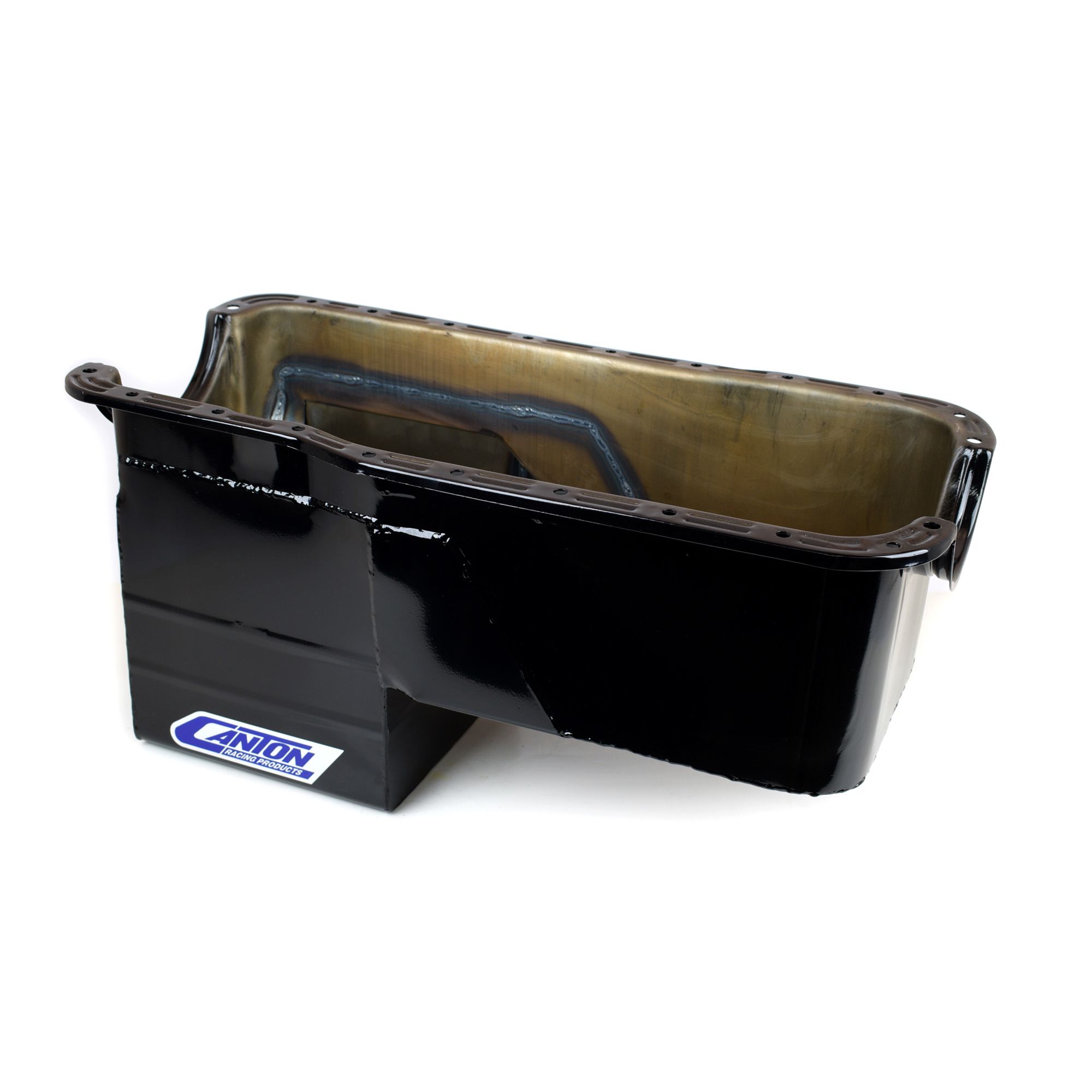

This truck rear sump pan is for Ford 4WD Trucks and Vans with 351W with 2 bolt rear mains. It has 10-3/4" deep sump with an 8 quart system capacity. Will not clear crossover exhaust. Designed for use with long tube headers. This pan requires our 16-675 pickup.
Additional Attributes:
GTIN: 00887753714183
Baffled: Yes
Capacity: 8 Quart System Capacity
Crank Scraper Included: Yes
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 8 qt System Capacity
Feature 2: Crank Scraper
Feature 3: Slosh Baffle
Feature 4: Provision For Our Pan Mounted Dipstick
Feature 5: Magnetic Drain Plug
Finish: Black Gloss Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: No
Material: 14 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 16-675 – Pickup with M-83 or M-83HV pumps
Recommended Accessory 2: 20-953 – Main Cap Pickup Stud
Recommended Accessory 3: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 4: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 5: 88-652 ? Small Block Ford 351W One Piece Oil Pan Gasket
Stoke: 4.0 inches
Sump Depth: 10.75 inches
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 14 PG
Pan Install – Standard Part B
