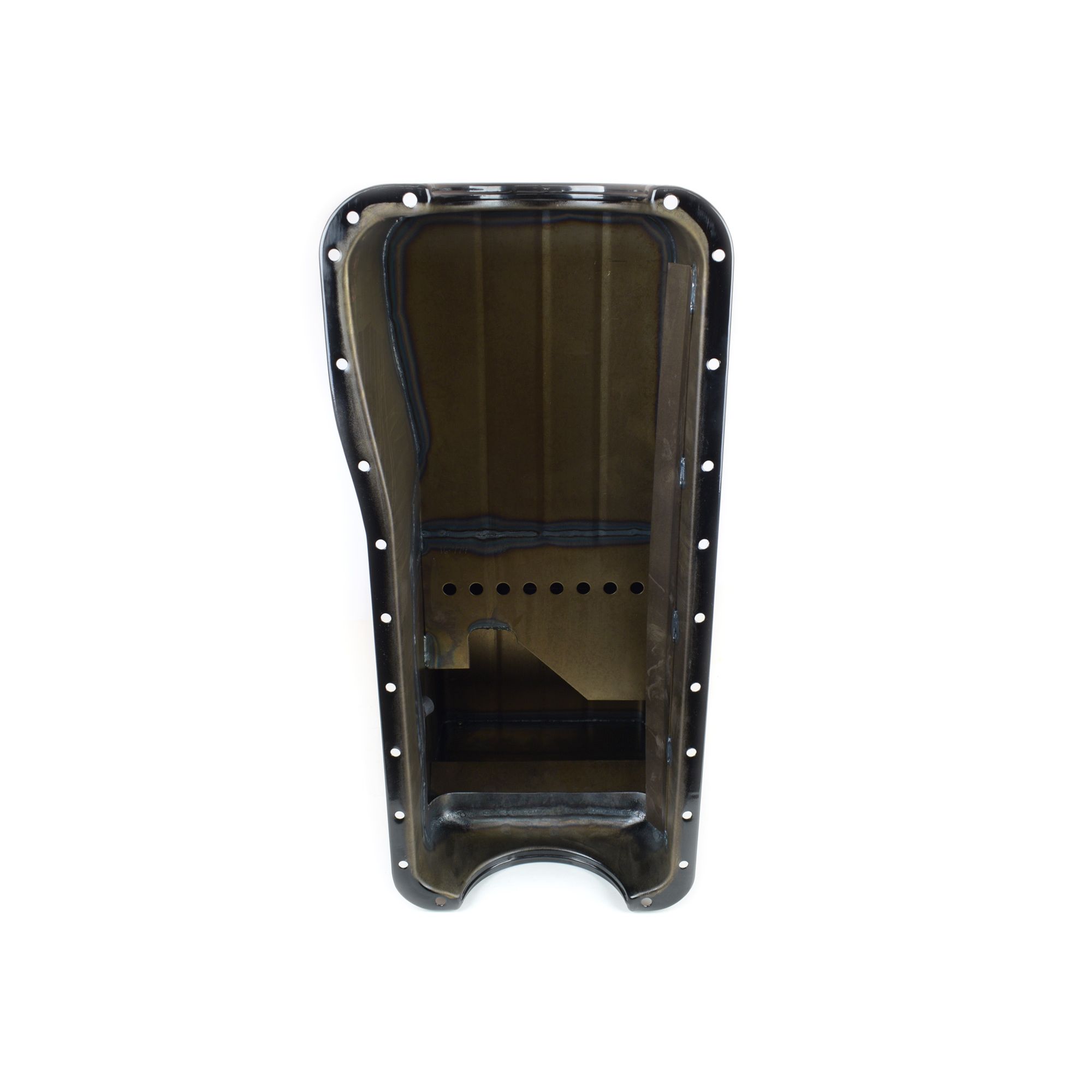

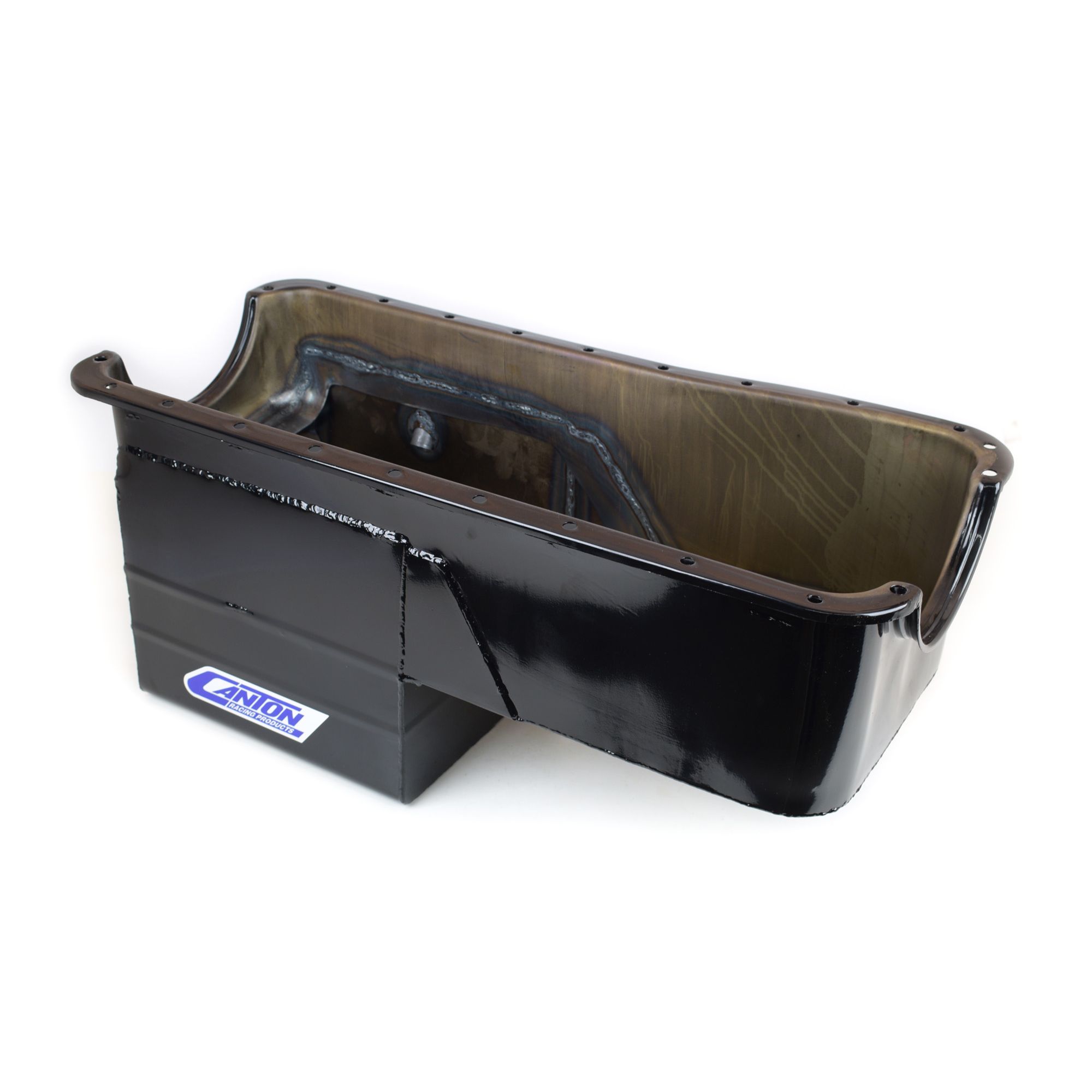

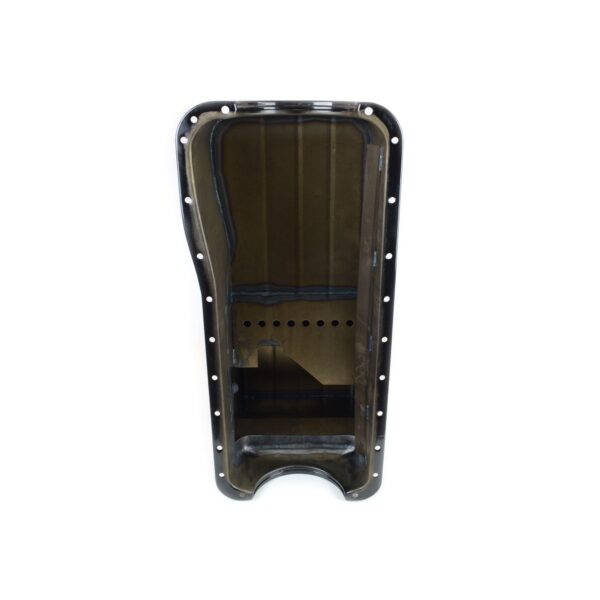

This rear sump truck pan is for all Ford 4WD trucks and vans with 429-460 blocks. It has 10-3/4" deep by 10-1/2" long sump with an 8 quart system capacity. Will not clear crossover exhaust. Designed for use with long tube headers. This pan requires our 16-775 pickup.
Additional Attributes:
GTIN: 00887753714220
Baffled: Yes
Capacity: 8 Quart System Capacity
Crank Scraper Included: Yes
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: Designed to be used in Ford 4WD trucks and vans
Feature 2: Trap Door Baffle
Feature 3: Slosh Baffle
Feature 4: Provision for Pan Mounted Dipstick
Feature 5: 14 ga. Steel Sump Construction
Feature 6: Made In USA
Feature 7: Tig Welded
Finish: Black Gloss Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: No
Material: 14 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 16-775 – Pickup with M-84D or M-84DHV Oil Pump
Recommended Accessory 2: 20-956 – Main Cap Pickup Stud
Recommended Accessory 3: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 4: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 5: 88-750 ? Big Block Ford 429-460 Four Piece Oil Pan Gasket
Stoke: 4.5 inches
Sump Depth: 10.75 inches
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 13 x 13 inches
Weight: 14 PG
Pan Install – Standard Part B
