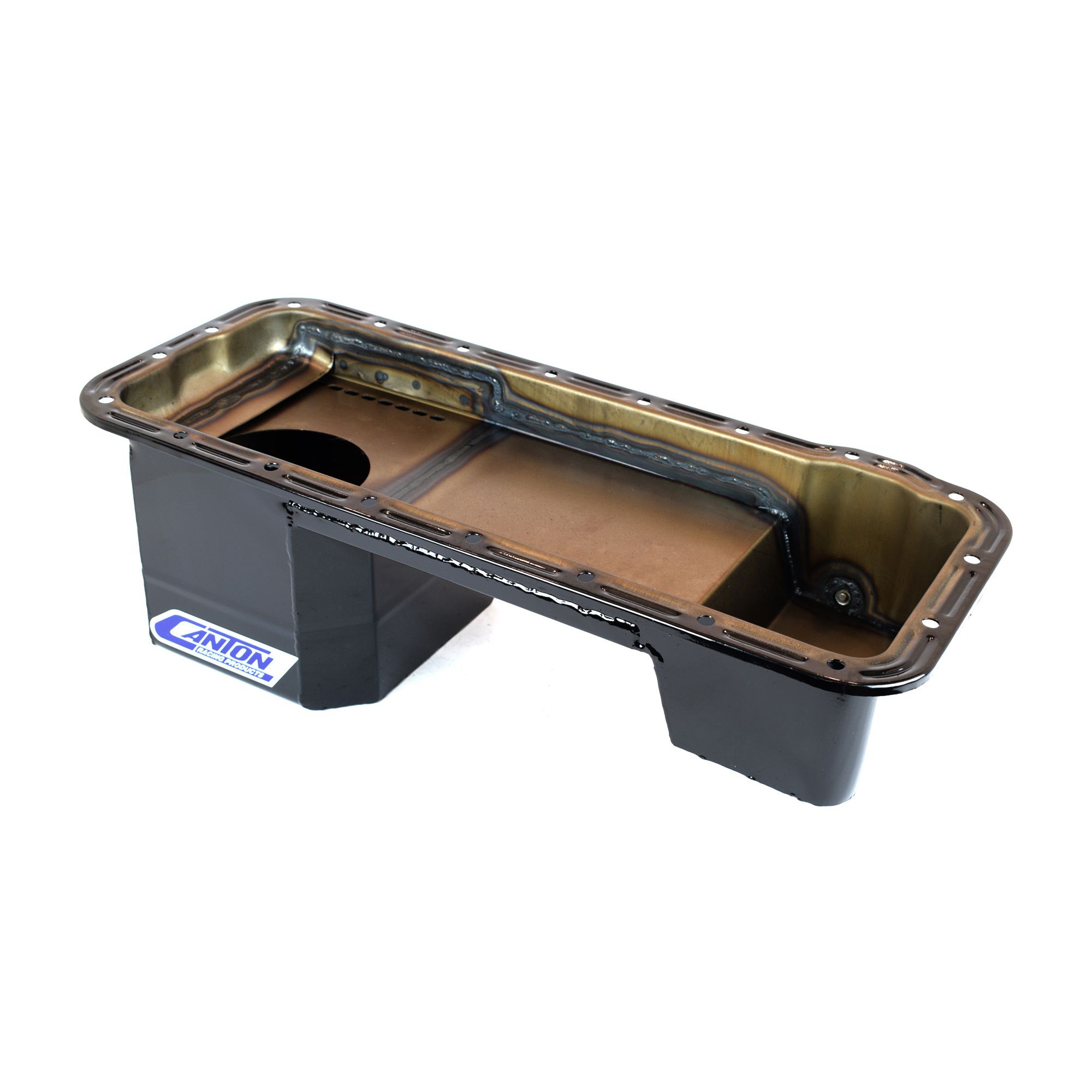

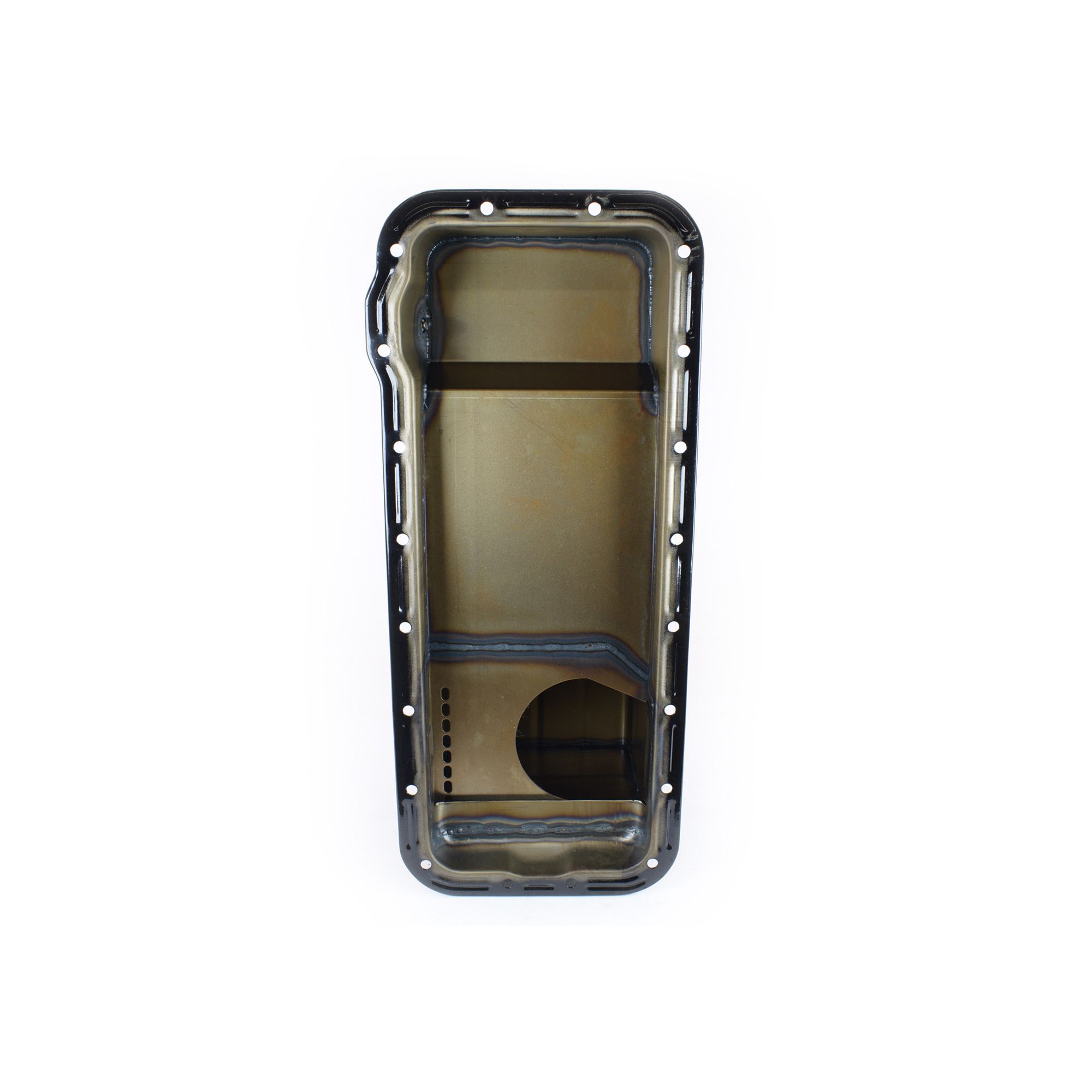

This deep rear sump pan is designed for increased oil capacity and oil control for Ford 332-428 FE truck applications. It can also be used to install FE engines in ?79 and up Mustang and T-Bird applications. Check the dimensions of your application to ensure proper fit. It has an 8" deep by 7-1/2" long sump, with a 7 quart system capacity. This pan requires our 16-871 pickup.
Additional Attributes:
GTIN: 00887753714268
Baffled: Yes
Capacity: 7 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 7 qt System Capacity
Feature 2: Slosh Baffle
Feature 3: Provision For Our Pan Mounted Dipstick
Feature 4: Magnetic Drain Plug
Finish: Black Gloss Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: No
Material: 14 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 16-871 – Pickup with 3/4″ Inlet
Recommended Accessory 2: 20-938 – Ford 332-428 FE Screen Windage Tray
Recommended Accessory 3: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 4: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 5: 88-800 ? Big Block Ford 390-428 FE One Piece Oil Pan Gasket
Stoke: 4.125 inches
Sump Depth: 8 inches
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 15 PG
Pan Install – Standard Part B
