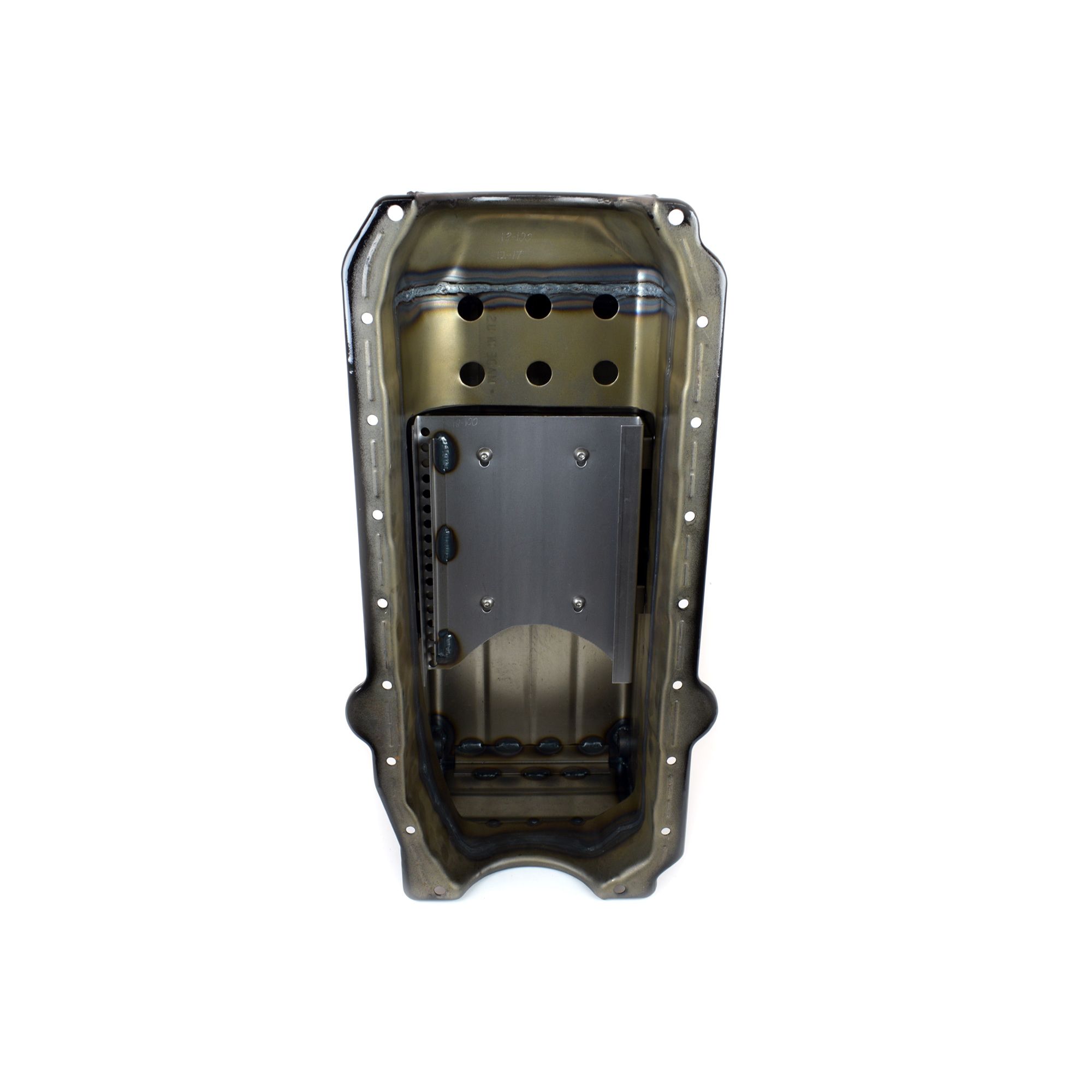

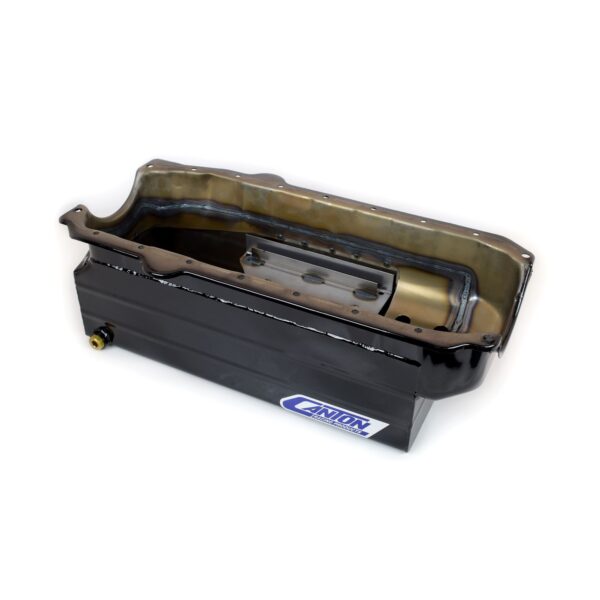

This SBC High Capacity Marine Pan is for pre-85 blocks. With a deep 7-1/2" full length sump it holds 8 quarts of oil for greater oil capacity. Designed for applications with the pickup at the flywheel end of the engine. This pan requires our 18-101 pickup.
Additional Attributes:
GTIN: 00887753714282
Baffled: Yes
Capacity: 8 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 8 qt Pan Capacity
Feature 2: 14 ga. Steel Construction
Feature 3: Double Trap Door Baffles
Feature 4: Removable Windage/Anti-Slosh Baffle
Feature 5: 1/2″ NPT Drain Fittings
Feature 6: Provision For our Pan Mounted Dipstick
Feature 7: Powder Coating & Brass Plugs For Corrosion Protection
Finish: Black Gloss Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: No
Material: 14 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 18-101 – Stock Replacement Pickup for SBC Oil Pump
Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 4: 88-100 ? SBC Pre ?85 Oil Pan Gasket
Stoke: 3.875 inches
Sump Depth: 7.5 inches
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 20 PG
Pan Install – Standard Part B
