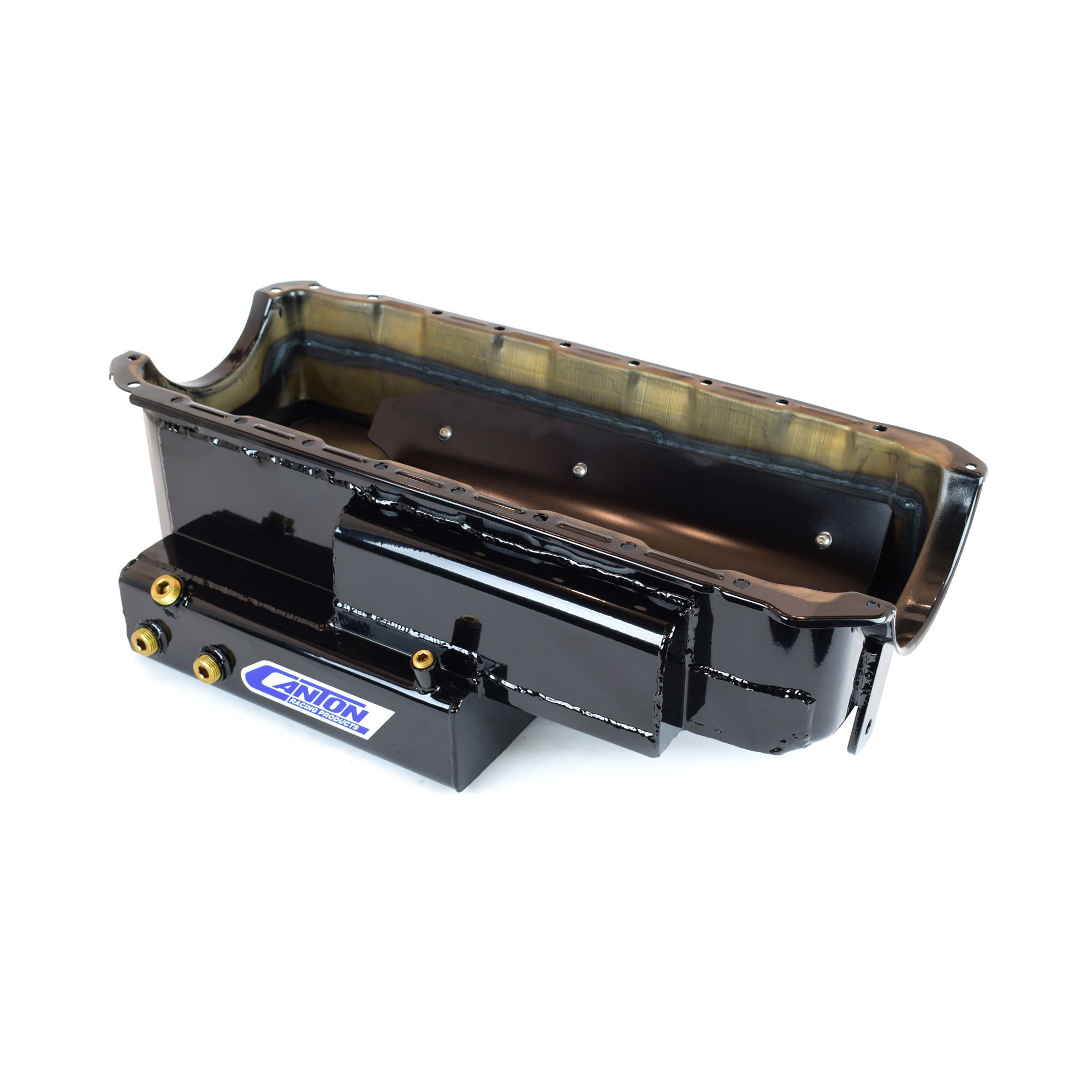

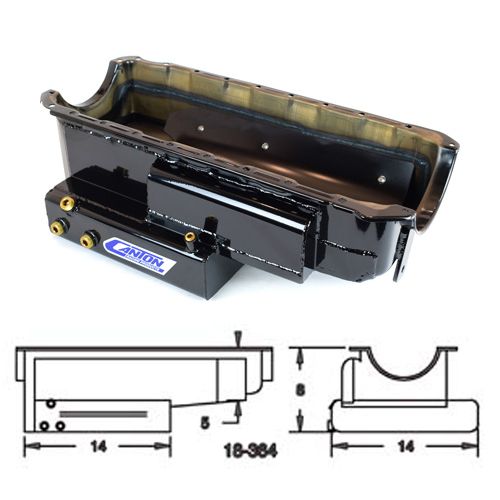

This extra high capacity ?T? sump is for standard Big Block Chevys with 2 piece rear seals. The 8" deep by 14" long by 14" wide sump holds 10 quarts of oil. The pan is angled in the front for improved drain back & is notched for a sea pump. Note: These pans have been REDESIGNED to clear O.E.M. marine starters with a 168 tooth flywheel. This pan requires our 18-365 pickup.
Additional Attributes:
GTIN: 00887753714398
Baffled: Yes
Capacity: 10 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 10 qt Pan Capacity
Feature 10: Powder Coating & Brass Plugs For Corrosion Protection
Feature 2: 14 ga. Steel Construction
Feature 3: Six Trap Door Baffles
Feature 4: Oil Recovery Pouch
Feature 5: Crank Scraper
Feature 6: Bolt In Slosh Baffle
Feature 7: Built In Louvered Windage Tray
Feature 8: Three 1/2″ NPT Bungs
Feature 9: Provision For our Pan Mounted Dipstick
Finish: Black Gloss Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 14 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 18-365 – Pickup BBC Oil Pumps
Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
Stoke: 4.5 inches
Sump Depth: 8 inches
Sump Width: 14 inches
Windage Tray Included: Yes
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 27 PG
Pan Install – Standard Part B
