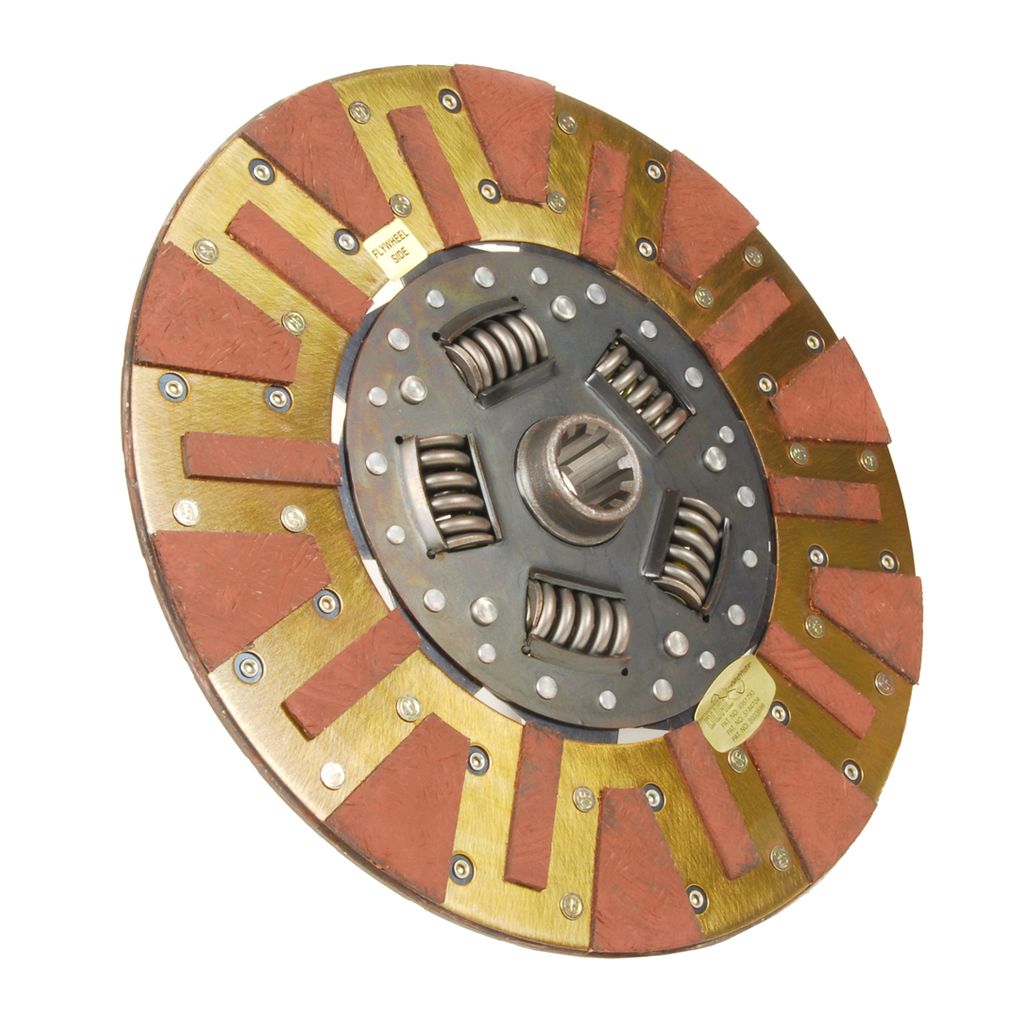

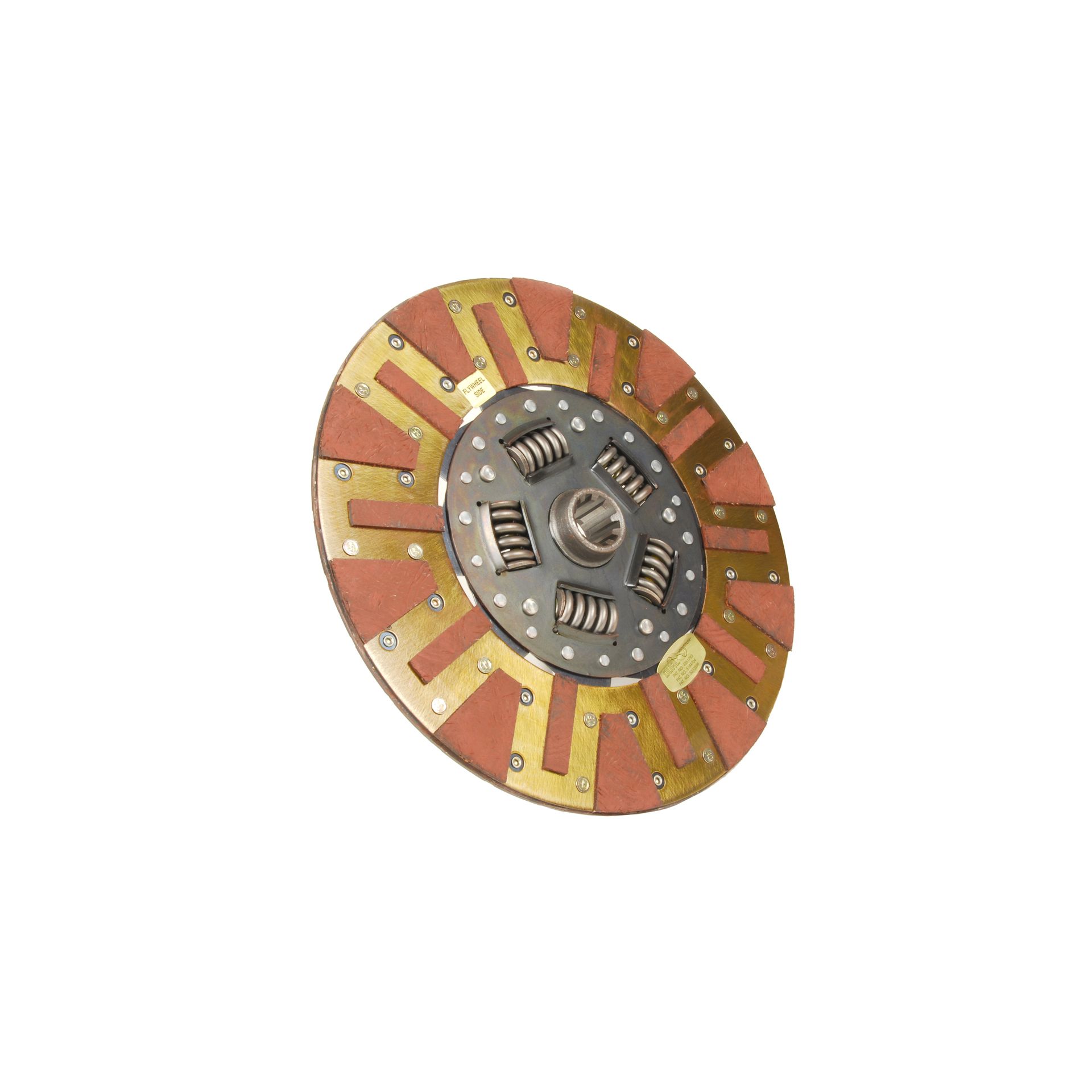

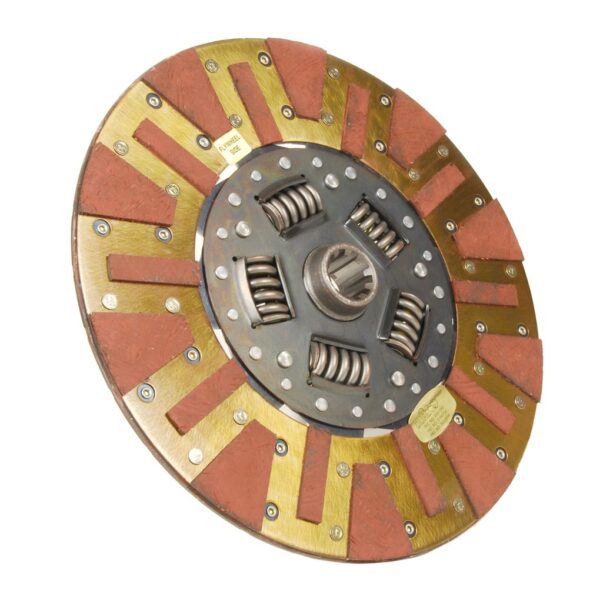

The Centerforce(R) Dual Friction(R) Disc Series uses a single disc with patented dual friction technology by distributing pressure plate clamp force evenly over a 360-degree friction-facing on one side of the clutch disc, while the opposing side uses a segmented friction-facing to concentrate clamping pressure and increase clutch holding-capacity. These discs are made for Centerforce Dual Friction pressure plates.
Additional Attributes:
GTIN: 00788442027693
California Proposition 65: WARNING – Includes Nickel – cancer. www.P65Warnings.ca.gov.
Clutch Disc Diameter: 12
Clutch Disc Diameter: 304.8
Disc Material1: Organic/Carbon composite
Disc Type Sprung Solid2: Sprung
Disc Type4: Full face/Segmented face
Input Shaft Diameter0: 1-1/16
Input Spline Quantity1: 10
Inside Diameter of Friction Surface0: 6.750
Made In The USA9: Assembled
Material3: Full Face and Segmented Organic Friction
Out of Package Weight: 5.28
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 14 x 14 x 2 inches
Weight: 5.83 PG
