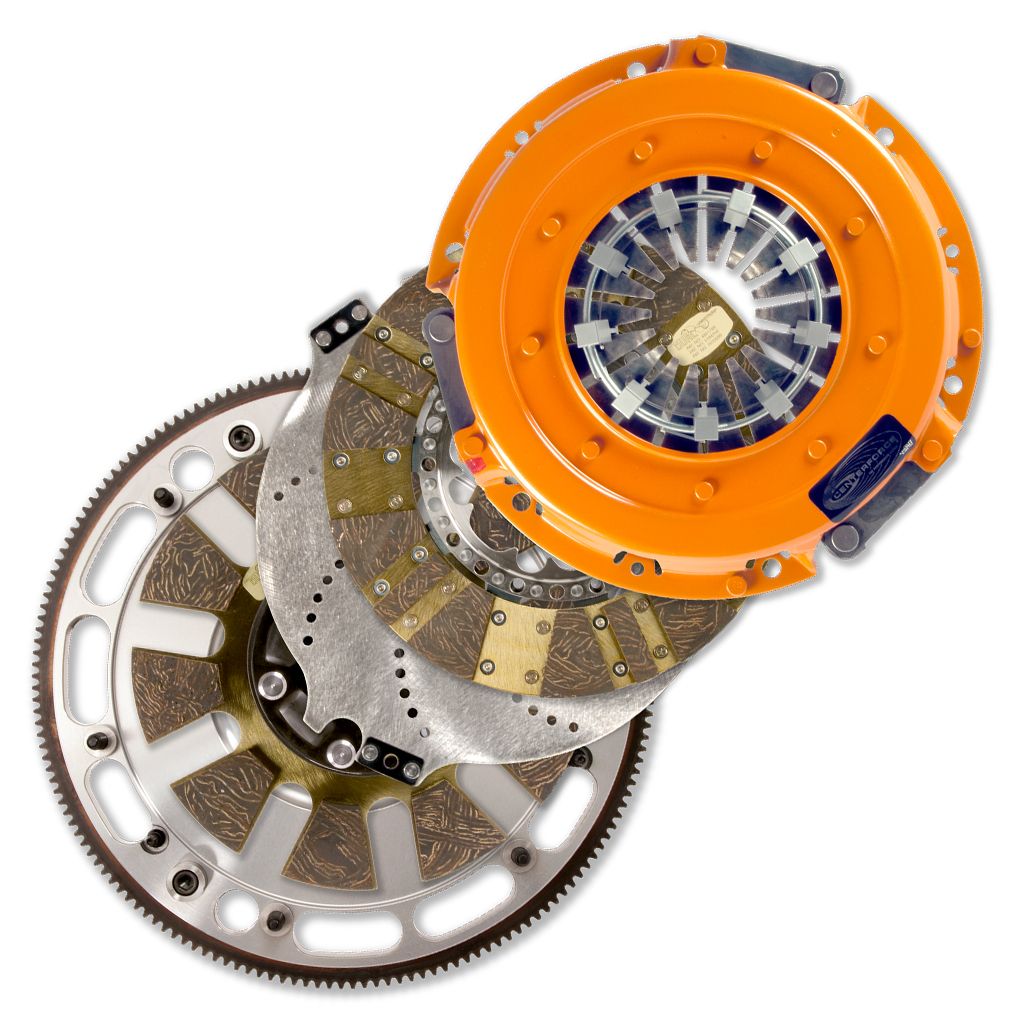

The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Additional Attributes:
GTIN: 00788442034080
Alignment Tool Included9: Yes
California Proposition 65: WARNING – Includes Nickel – cancer. www.P65Warnings.ca.gov.
Clutch Disc Diameter8: 10.4
Clutch Disc Diameter9: 264.2
Counterweight Assist2: YES
Crankshaft Bolt Hole Quantity7: 6
Disc Material4: Organic/Carbon composite
Disc Type Sprung Solid: Sprung
Disc Type5: Segmented face
Flywheel Crank Bolt Size1: 7/16 in x 20 x 0.875
Flywheel Crank Flange Register8: 2.160
Input Shaft Diameter1: 1-1/8
Input Spline Quantity3: 26
Installed Height2: 2.960
Made In The USA9: Assembled
Material2: Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
Mounting Hardware Included0: Yes
Ring Gear O.D.7: 14.579
Tooth Quantity: 143
Torque Capacity: 1300
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 18 x 18 x 5.5 inches
Weight: 53.5 PG
