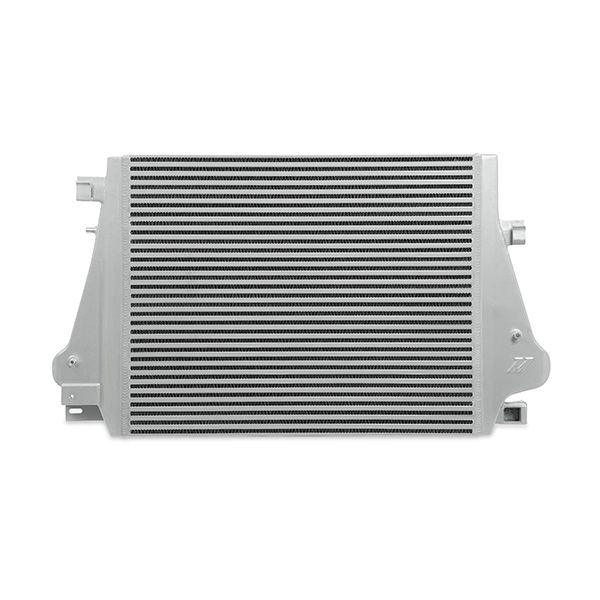

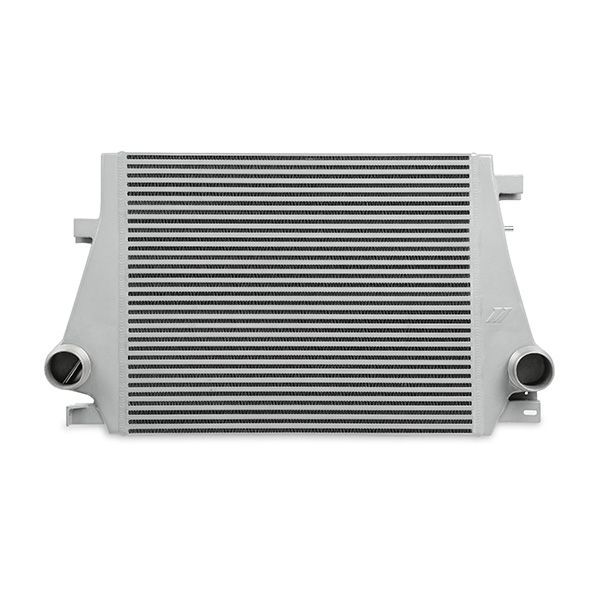

Chevrolet Camaro 2.0T Performance Intercooler

It's time to make our line of parts for the 2016+ Chevrolet Camaro 2.0T and the 2013+ Cadillac ATS 2.0T a little bit bigger by introducing a direct-fit performance intercooler. This will be a great part to add to your LTG powerplant if you're looking for increased airflow and higher power potential. An upgraded intercooler will also be a supporting platform for other bolt-on modifications such as an intake or an upgraded turbocharger. Our intercooler has an increased external fin surface area of 239-percent, an internal volume increase of 45-percent, and an overall core size increase of 78-percent over stock. While this is a direct replacement for the factory intercooler unit, these size increases greatly help with heat-soak. Extensive testing was conducted to be sure that our design combats heat-soak just as well as a front-mount design would, and the results showed maximum temperature drops of 25? F compared to the stock setup using factory charge pipes. Detailed testing conditions and methods are outlined in the attached engineering blog for the project. We also gained 15 hp and 12 ft-lbs of torque, which makes this a true bolt-on part yielding results. This intercooler is designed to be used with all factory equipment on both the 2016+ Chevy Camaro 2.0T and the 2013+ Cadillac ATS 2.0T, and will pair with our upgraded intercooler pipes. There is no modification or cutting required to install this intercooler and it comes with the Mishimoto Lifetime Warranty.

Additional Attributes:

GTIN: 00811580030413
Install Difficulty: 4
SellingPoint01: Direct fit for the 2016+ Chevrolet Camaro 2.0T and 2013+ Cadillac ATS 2.0T
SellingPoint02: 2-in thick intercooler design optimized for maximum airflow with minimal pressure drop
SellingPoint03: 25F (14C) reduction in AIT
SellingPoint04: 61F (34C) temperature drop over stock intercooler shown during heat-soak torture test
SellingPoint05: 45-percent increase in internal core volume and 239-percent increase in external fin surface area
SellingPoint06: 78-percent increase in core size
SellingPoint07: Bar-and-plate construction
SellingPoint08: Includes CNC-machined quick-disconnect fittings to mate with stock intercooler pipes
SellingPoint09: Cast end tanks with internal air diverter provide optimal airflow through intercooler
SellingPoint10: All-aluminum, TIG-welded
SellingPoint11: Fits with the Mishimoto Camaro 2.0T Oil Cooler Kit
SellingPoint12: Mishimoto Lifetime Warranty
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2016+ Chevrolet Camaro 2.0T–2013-2019 Cadillac ATS 2.0T
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: Alpha
TechSpec Core Height (in): 17.15
TechSpec Core Length (in): 21.65
TechSpec Core Thickness (in): N/A
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: LTG
TechSpec Includes: (1) Aluminum Intercooler–(3) Tree Clips–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.4
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: 450
TechSpec Note: N/A
TechSpec Outlet (in): 2.4
TechSpec Overall Height (in): 17.15
TechSpec Overall Length (in): 31.1
TechSpec Overall Width (in): 3.62
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 35.83 x 24.41 x 8.66 inches
Weight: 31 PG
