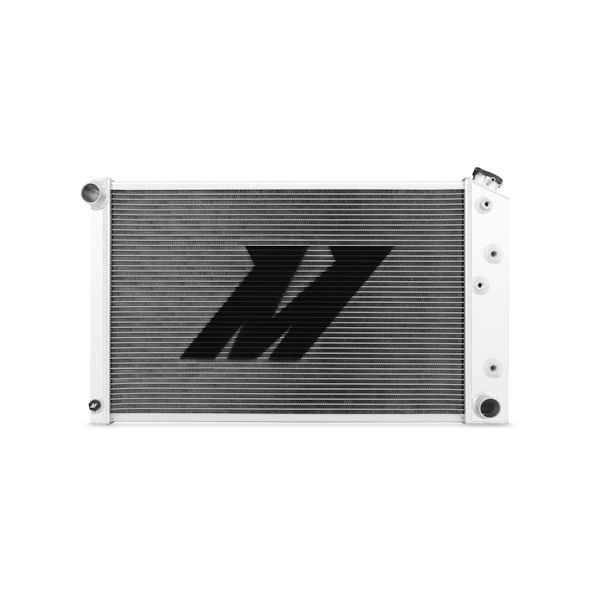

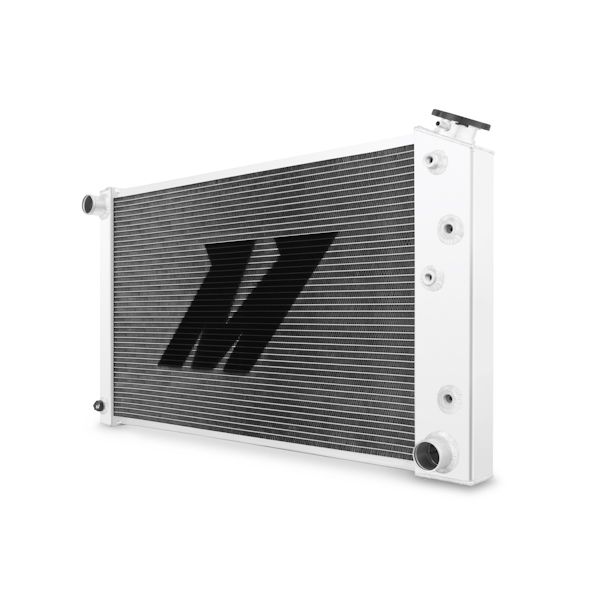

Chevrolet Camaro 2-Row Performance Aluminum Radiator, 1970 – 1981

The Mishimoto performance aluminum radiator for the Chevrolet Camaro / Pontiac Firebird is an ideal upgrade to the OEM radiator. Whether you are cruising to a car show or slinging rubber at the strip an efficient cooling system is a must. The Mishimoto Chevrolet Camaro aluminum radiator features a 2 row core and high pressure radiator cap to keep your stock or modified small block temperatures in check. Not only will this radiator improve engine cooling but the incorporated transmission cooler will provide significant reductions in fluid temperatures. The Mishimoto Chevrolet Camaro radiator is crafted from high quality TIG welded aluminum with polished end tanks. This aluminum radiator is a direct fit unit and will not require any trimming or cutting and is backed by the Mishimoto lifetime warranty.

Additional Attributes:

GTIN: 00748666002296
Install Difficulty: 3
SellingPoint01: Direct fit for the 1970-1981 Chevrolet Camaro w/ L6 and V8 engines
SellingPoint02: Full aluminum radiator featuring robust TIG-welded construction
SellingPoint03: Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip

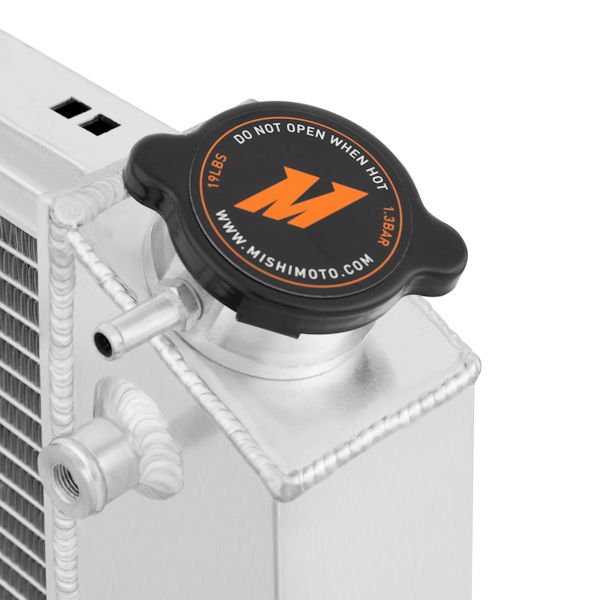

SellingPoint04: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint05: Polished aluminum end tanks enhance engine bay aesthetics
SellingPoint06: Includes Mishimoto M12 x 1.25-in Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1970-1981 Chevrolet Camaro–1970-1981 Chevrolet Camaro
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 16.5
TechSpec Core Length (in): 26.2
TechSpec Core Thickness (in): 1.41
TechSpec DPI: 162
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 4.87
TechSpec Includes: Mishimoto Radiator–Mishimoto Radiator Cap–Magnetic Drain Plug w/ Dowty Oil Seal–(2) 1/8-inch NPT Plugs–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.57
TechSpec Overall Height (in): 31
TechSpec Overall Length (in): 18.75
TechSpec Overall Width (ins): 4.2
TechSpec Rows: 2

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 29 x 9 x 24 inches
Weight: 21 PG
