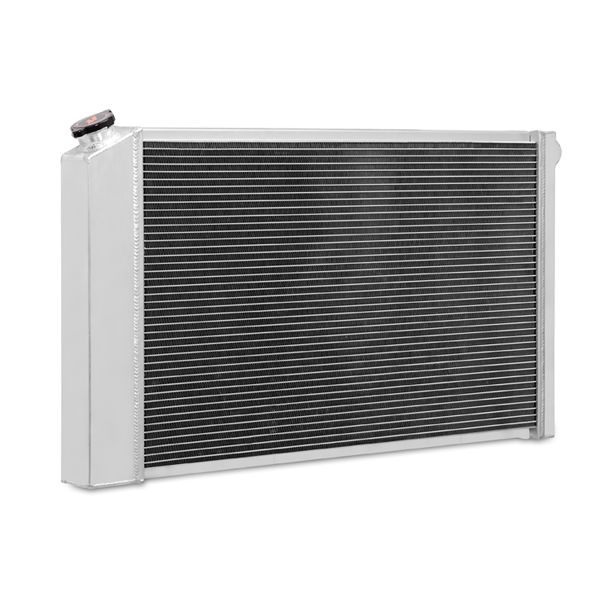

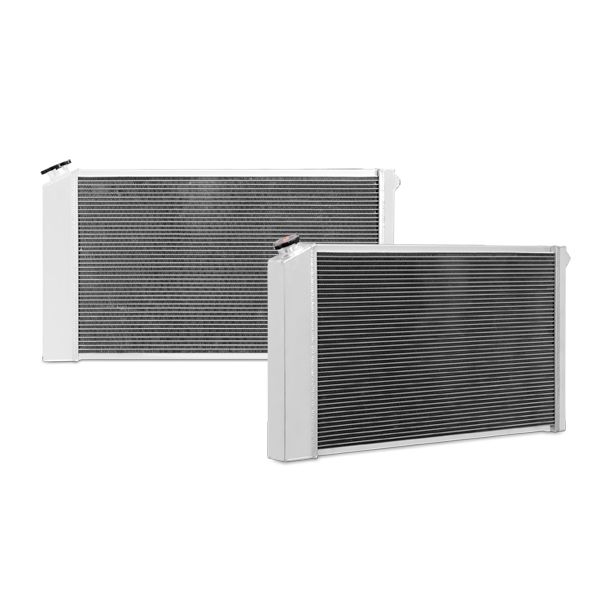

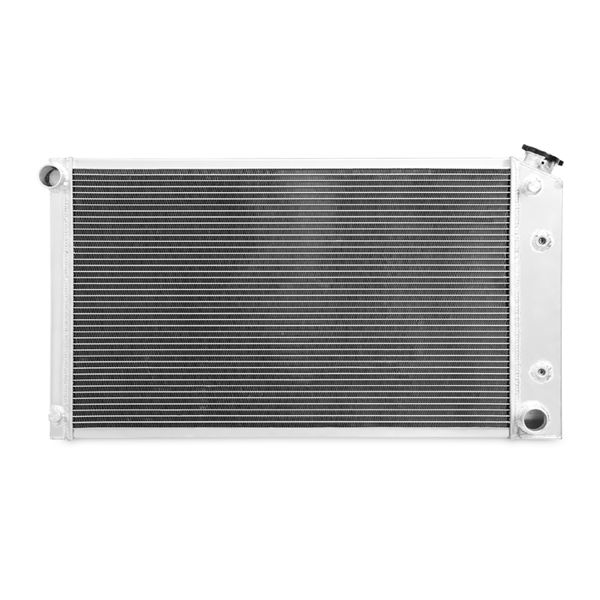

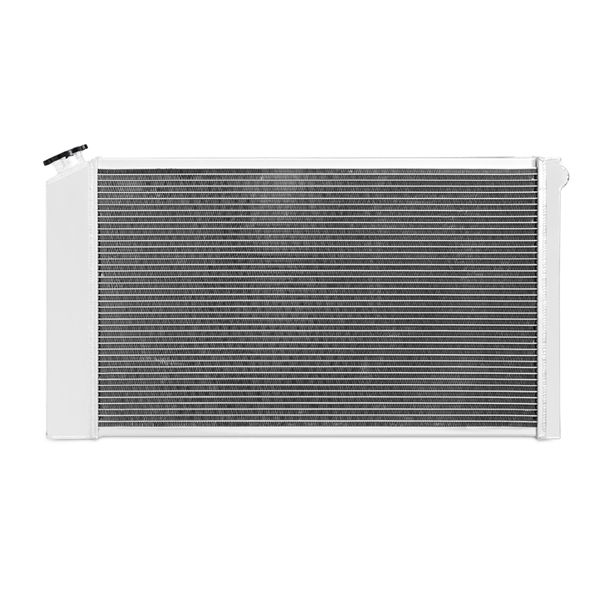

An ideal upgrade for the brittle stock radiator, the Mishimoto 1968-72 Chevrolet Chevelle X-Line Performance Aluminum Radiator provides your car with enhanced reliability and improved cooling efficiency. Whether you use your classic for daily driving or take it to the track, many people overlook the importance of installing an upgraded radiator in their engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. The Mishimoto Chevrolet Chevelle X-Line Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This performance radiator also includes a Magnetic Oil Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
Additional Attributes:
GTIN: 00748354016062
Install Difficulty: N/A
SellingPoint01: 100-percent aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
SellingPoint02: 3-row brazed aluminum core with TIG-welded end tanks
SellingPoint03: Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures
SellingPoint04: Includes an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
SellingPoint05: Billet aluminum fill neck
SellingPoint06: Includes magnetic drain plug
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1968-1973 Chevy Chevelle 307ci (5.0L) V8, 350ci (5.7L) V8–1970-1977 Chevy Monte Carlo 305ci (5.0L) V8, 350ci (5.7L) V8, 400ci (6.6L) V8–1968-1977 Chevy El Camino 250ci (4.1L) L6, 307ci (5.0L) V8, 327ci (5.3L) V8, 350ci (5.7L) V8, 400ci (6.6L) V8, 454ci (7.4L) V8–1973-1986 Chevy, GMC C, K Series 250ci (4.1L) L6, 292ci (4.8L) L6, 305ci (5.0L) V8, 350ci (5.7L) V8
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 16.9
TechSpec Core Length (in): 28.2
TechSpec Core Thickness (in): 2.2
TechSpec DPI: 161
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: 250ci (4.1L) L6–292ci (4.8L) L6–305ci (5.0L) V8–307ci (5.0L) V8–327ci (5.4L) V8–350ci (5.7L) V8–400ci (6.6L) V8–454ci (7.4L) V8
TechSpec Fluid Capacity (gal): 4.42
TechSpec Includes: Mishimoto Radiator–Mishimoto Radiator Cap–Magnetic Drain Plug–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Note: Transmission cooler fitting size: 1/4-inch BSPP
TechSpec Outlet (in): 1.6
TechSpec Overall Height (in): 33.7
TechSpec Overall Length (in): 18.9
TechSpec Overall Width (ins): 4.6
TechSpec Rows: 3
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 22 x 6 x 36 inches
Weight: 21 PG
