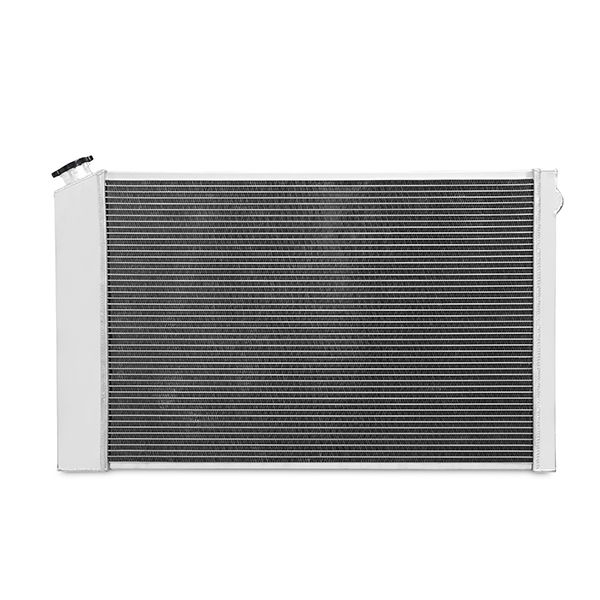

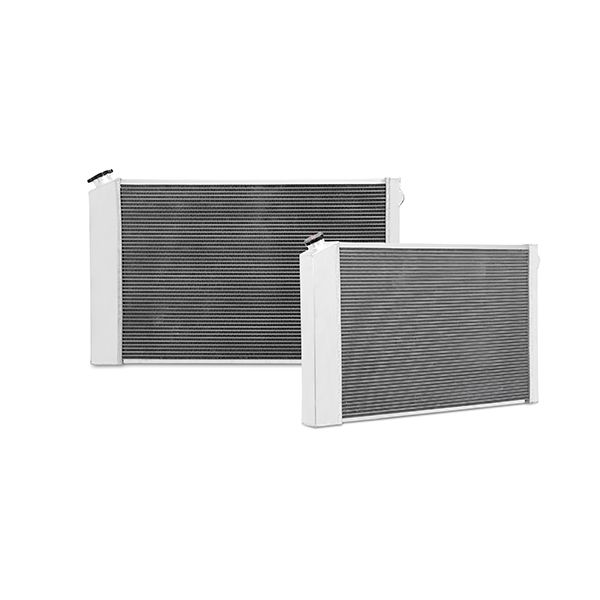

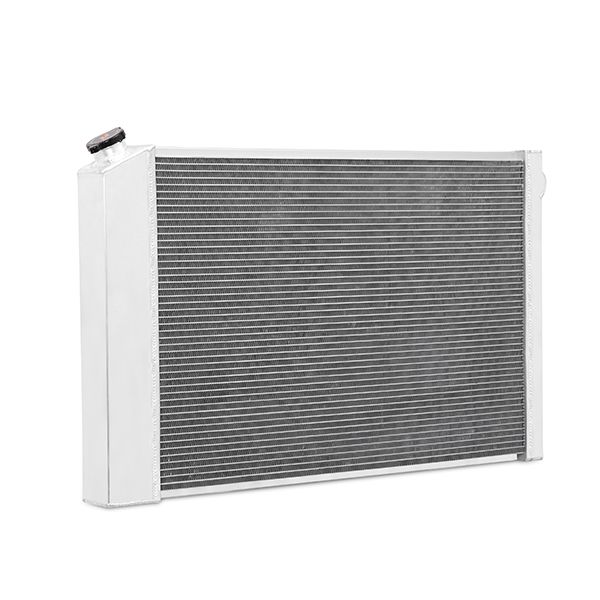

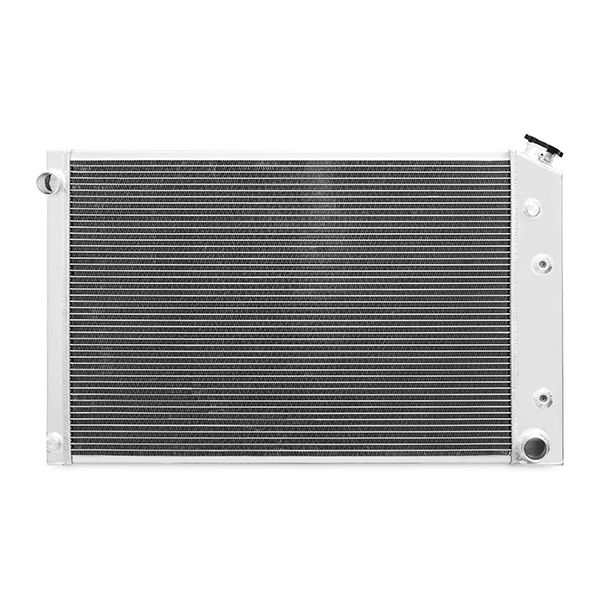

Chevrolet/GM C/K Truck Performance Aluminum Radiator w/ 19in Core, 1978-1986

An ideal upgrade for the brittle stock radiator, the Mishimoto 1978-1986 GM C/K Truck X-Line Performance Aluminum Radiator provides your truck with enhanced reliability and improved cooling efficiency. Whether you use your classic for daily driving or take it to the track, don't overlook the importance of installing an upgraded classic truck radiator in your engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. This GM C/K truck radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This classic car radiator also includes a magnetic oil drain plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, every GM C/K truck radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

Additional Attributes:

GTIN: 00748354016130
Install Difficulty: N/A
SellingPoint01: All-aluminum construction with durable, TIG-welded end tanks
SellingPoint02: Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
SellingPoint03: 3-row brazed aluminum core
SellingPoint04: Increased coolant capacity and superior heat dissipation
SellingPoint05: Billet aluminum fill neck
SellingPoint06: Includes magnetic drain plug to capture metallic debris and fragments in cooling system
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1978-1986 GM C/K Series Pickup 292ci (4.8L) L6, 305ci (5.0L) V8, 350ci (5.7L) V8, 454ci (7.4L) V8–1987-1991 Chevy Blazer 305ci (5.0L) V8, 350ci (5.7L) V8–1981-1991 GMC Jimmy 305ci (5.0L) V8, 350ci (5.7L) V8–1987-1991 R Series 305ci (5.0L) V8, 350ci (5.7L) V8, 454ci (7.4L) V8–1987-1991 V Series 305ci (5.0L) V8, 350ci (5.7L) V8, 454ci (7.4L) V8
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 18.9
TechSpec Core Length (in): 28.3
TechSpec Core Thickness (in): 2.5
TechSpec DPI: 716
TechSpec Drain Plug Thread Size: 1/4-18 NPT
TechSpec Engine Codes: 292ci (4.8L) L6–305ci (5.0L) V8–350ci (5.7L) V8–454ci (7.4L) V8
TechSpec Fluid Capacity (gal): 4.87
TechSpec Includes: Mishimoto Radiator–Mishimoto Radiator Cap–Magnetic Drain Plug–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Note: Transmission Cooler Thread Info:–On Radiator: Female 1/4-inch BSPP—-Fits with factory air conditioning.—-This radiator is not designed to work with the factory heavy-duty cooling system.
TechSpec Outlet (in): 1.6
TechSpec Overall Height (in): 33.9
TechSpec Overall Length (in): 20.7
TechSpec Overall Width (ins): 4.5
TechSpec Rows: 3

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 23 x 6 x 37 inches
Weight: 25 PG
