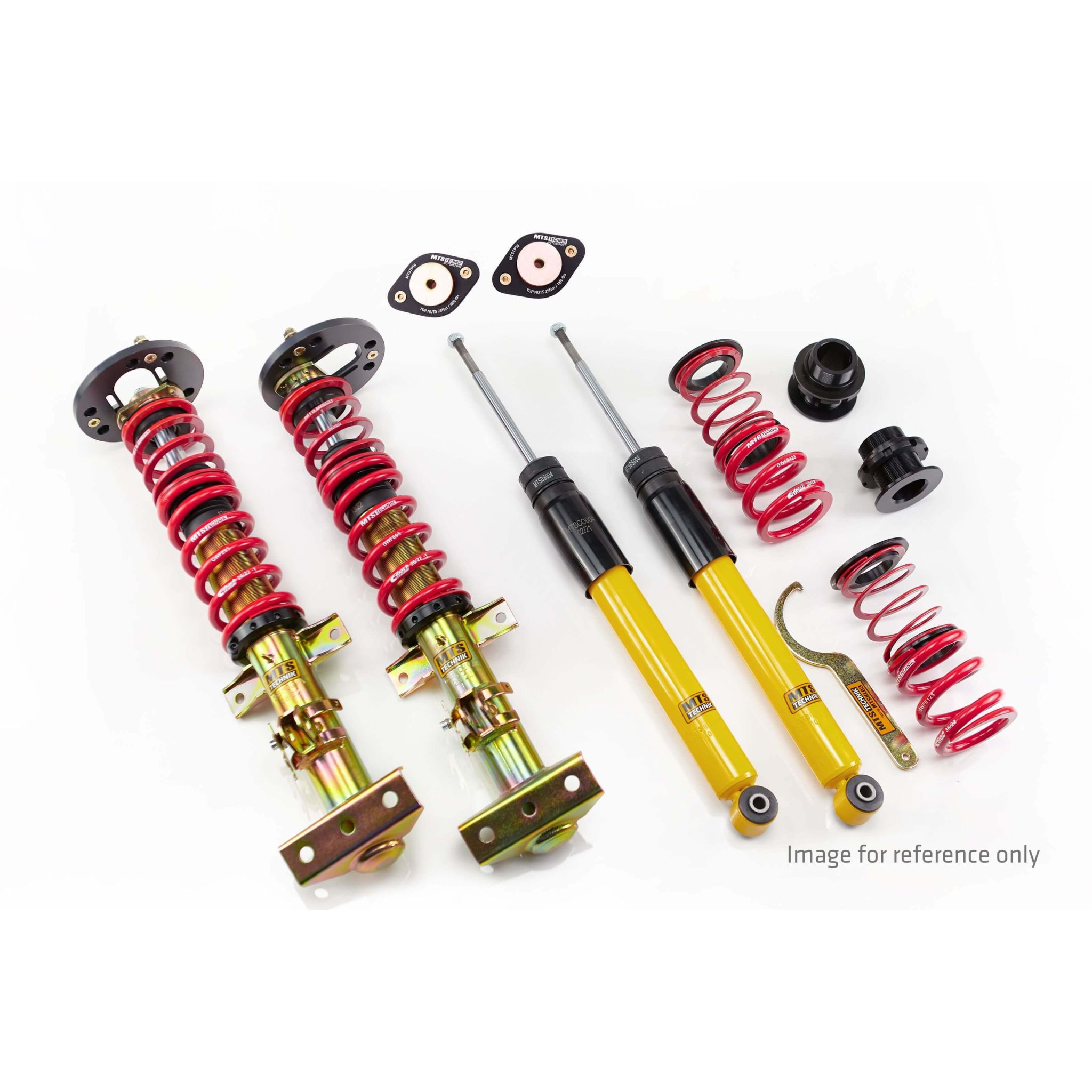

Coilover Suspension Comfort – MTSGWBM102-C

MTS Technik Coilover Suspension – the perfect choice for drivers who appreciate the flexibility and the ability to adjust the suspension altitudes depending on your preference and road conditions. Stiffening of the suspension makes the car better to drive, more predictable and more secure.

Optimum alignment of the MTS Technik coilover suspension components causes recognition of the growing number of users. Large rims in the summer, smaller in the winter – thanks to MTS Technik coilover kits You can adjust the ride height to Your needs.

Additional Attributes:

GTIN: 05903855621510
Additional information: strut diameter at the front axle of 51 mm
Camber / top mount FA: yes
Camber / top mount RA: yes
Coilover Helper Spring (Front): Spring rate (20 N/mm)
Coilover Main Spring (Front): Spring rate (50 N/mm)
Coilover Main Spring (Rear): Spring rate (46 – 90,1 N/mm)
Housing: Gold

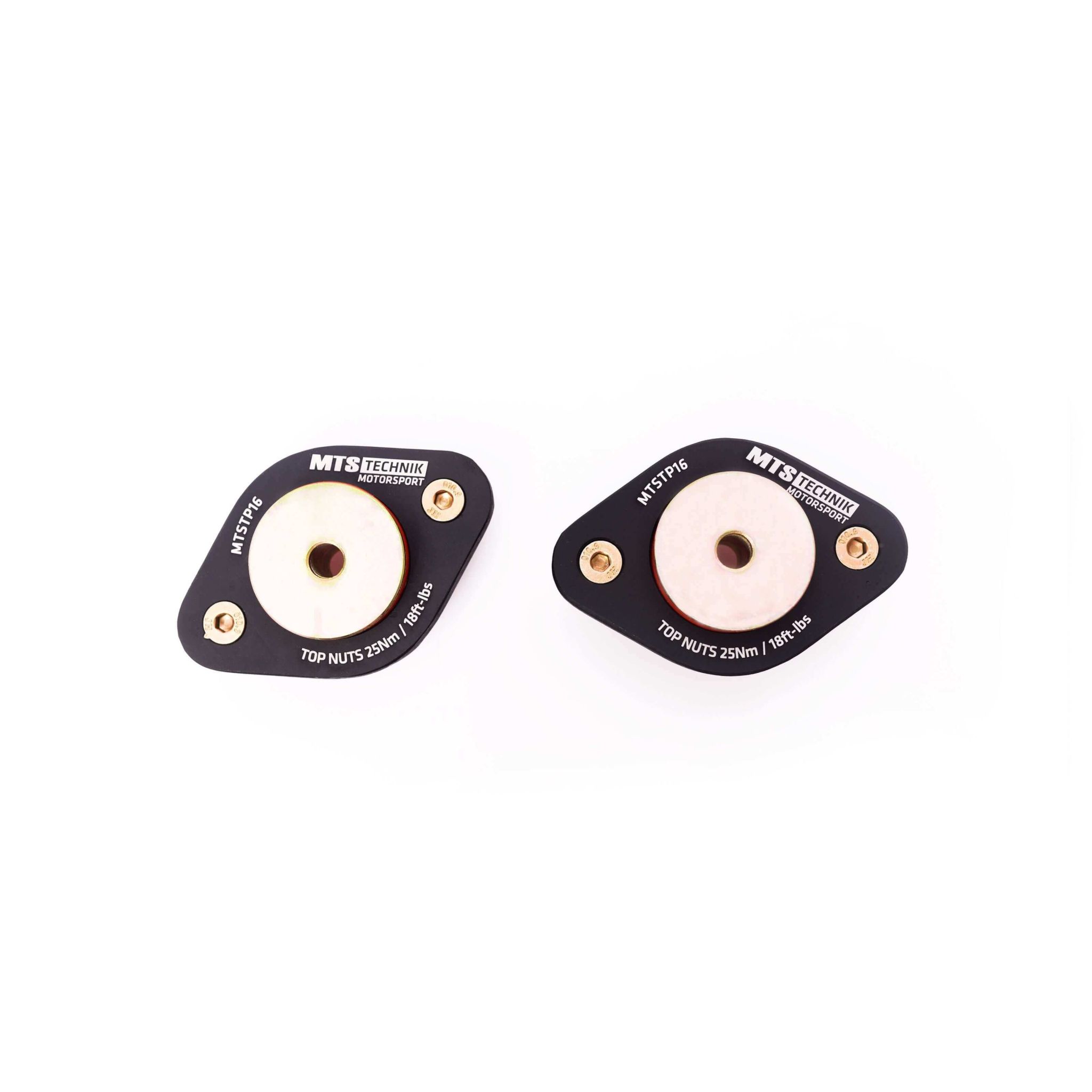

Product notes: 3 – Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear)., 8 – Not for 4×4., 21 – If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower., 24 – During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers., 26 – Independent height adjustment at the lower brackets on the front dampers., 28 – Set includes 2x upper “camber plates” on the front axle., 29 – The installation requires the use of OE front struts – they should be cut and welded as described in the attached manual., 33 – Including M-Technik., 35 – Rear thread adjustment block is mounted on the top., 73 – For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
Prop 65: N
Series: Comfort

Extended Information:

Emissions : 4
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: ST
Dimension: 25 x 18 x 9 inches
Weight: 22 PG
