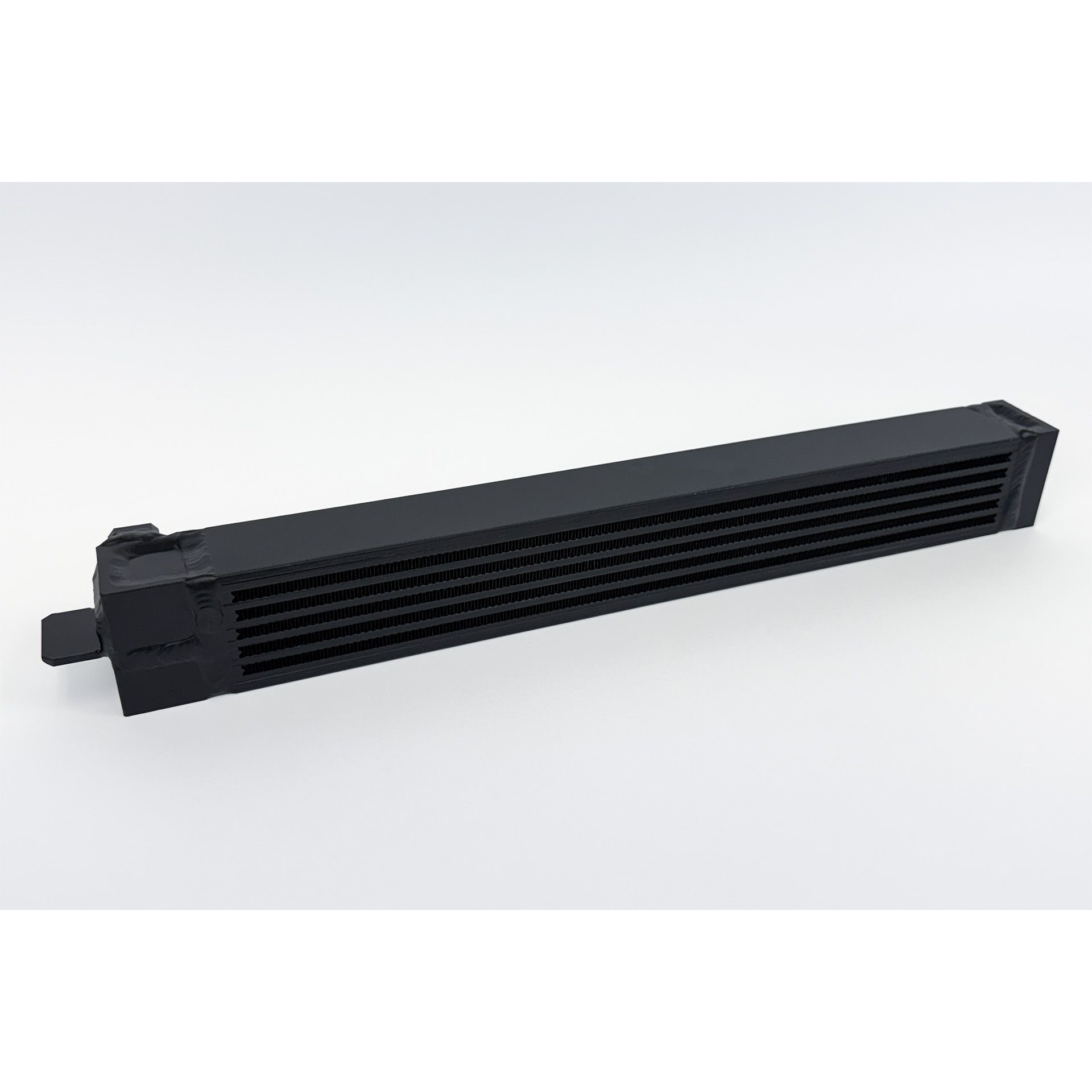

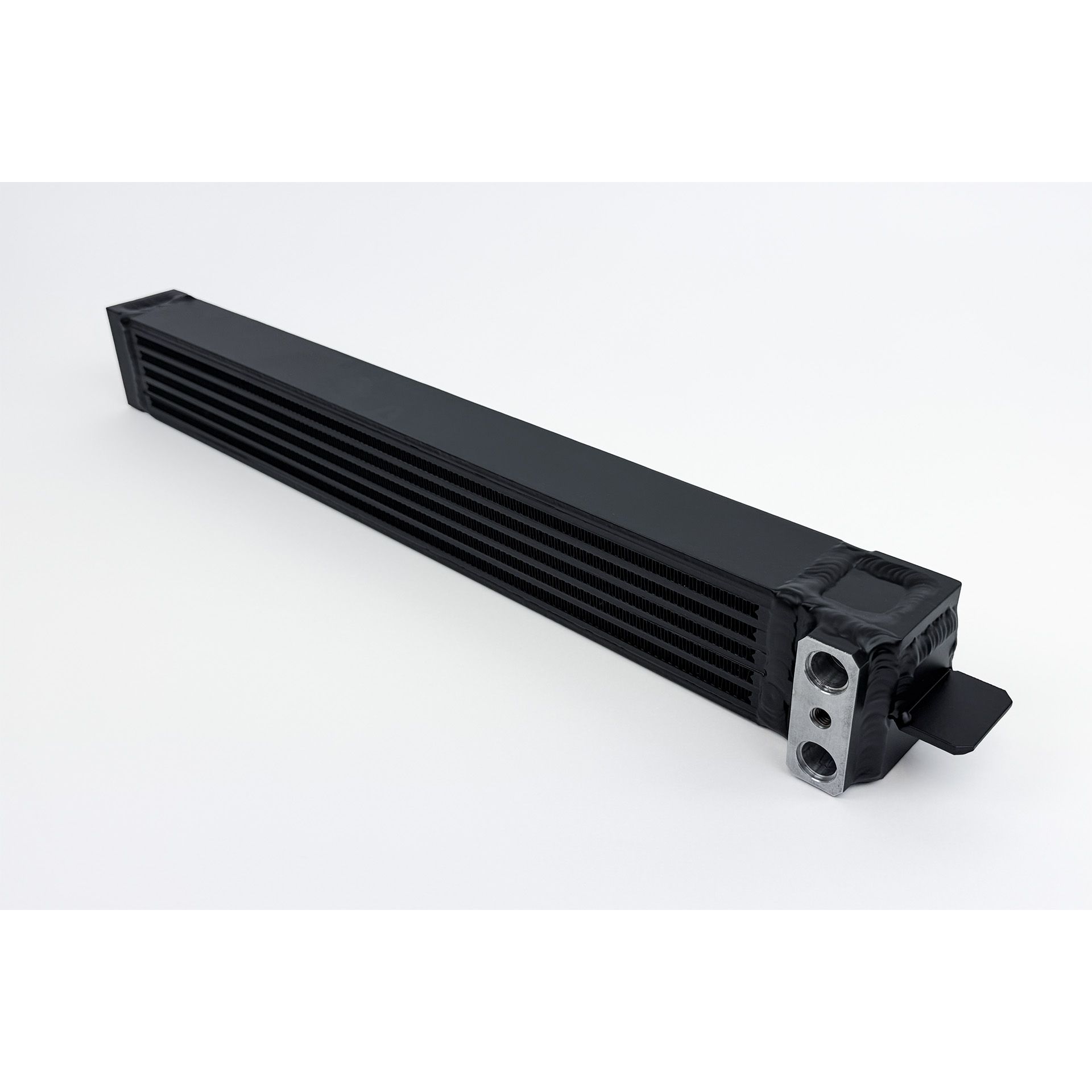

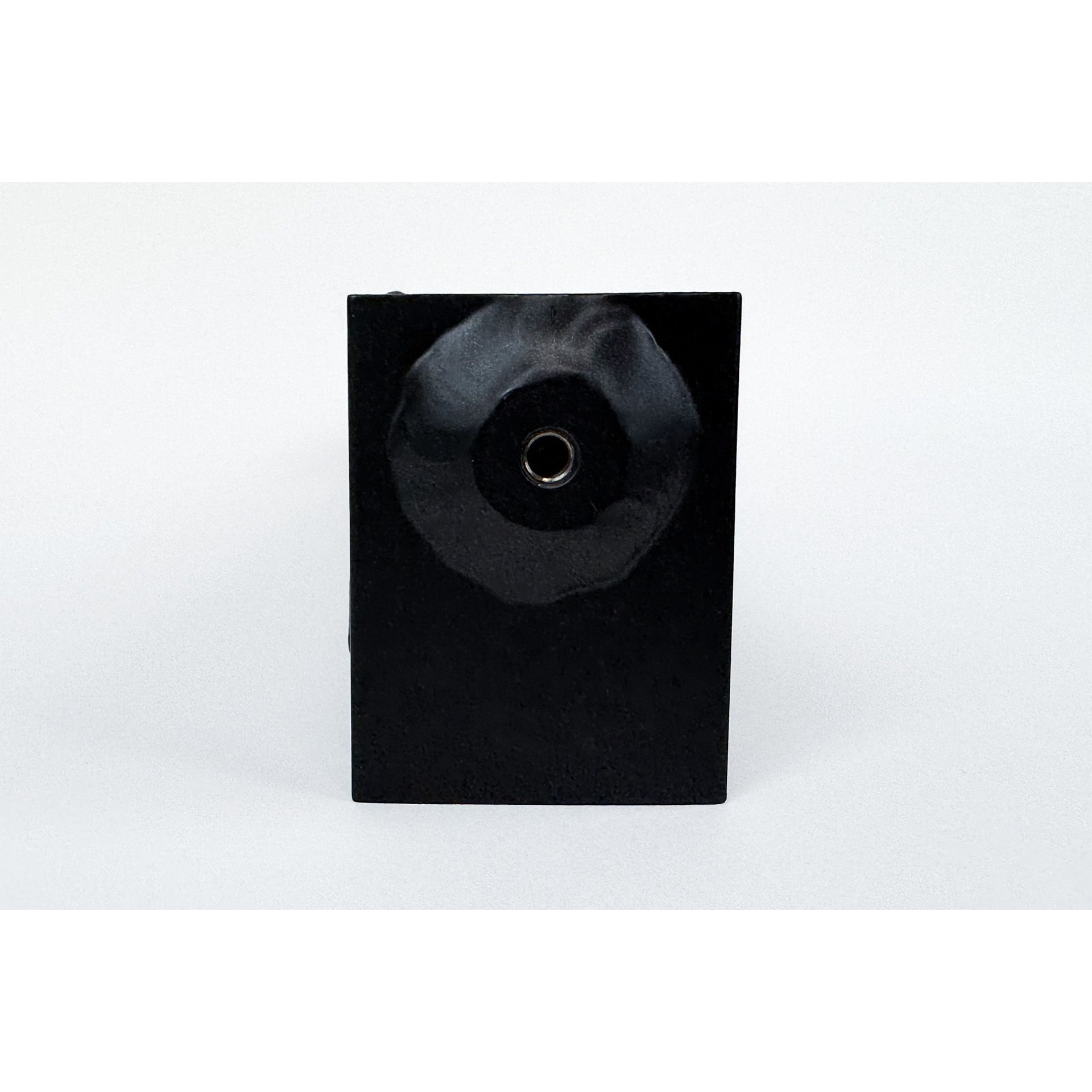

CSF E36 M3/3-Series Euro Spec Oil Cooler
CSF E36 M3/3-Series Euro Spec Oil Cooler
CSF E36 M3/3-Series Euro Spec Oil Cooler
CSF E36 M3/3-Series Euro Spec Oil Cooler

CSF E36 M3/3-Series Euro Spec Oil Cooler

$842.06

The factory Euro oil cooler was discontinued by BMW so Bimmerworld partnered with CSF to produce a direct replacement and keep this essential E36 oil cooler upgrade alive.

  • Unique Top/Bottom Dual-Pass Design for Maximum Surface Area and Flow
  • Fully TIG-Welded Extruded End Tank Design for Superior Reliability & Durability
  • Turbulated Heavy-Duty Bar/Plate Design for the Most Reliable & Durable Oil Cooler Available
  • 6 Rows of Maximum Cooling with a High Density Multi-Louvered Fin Pitch Design

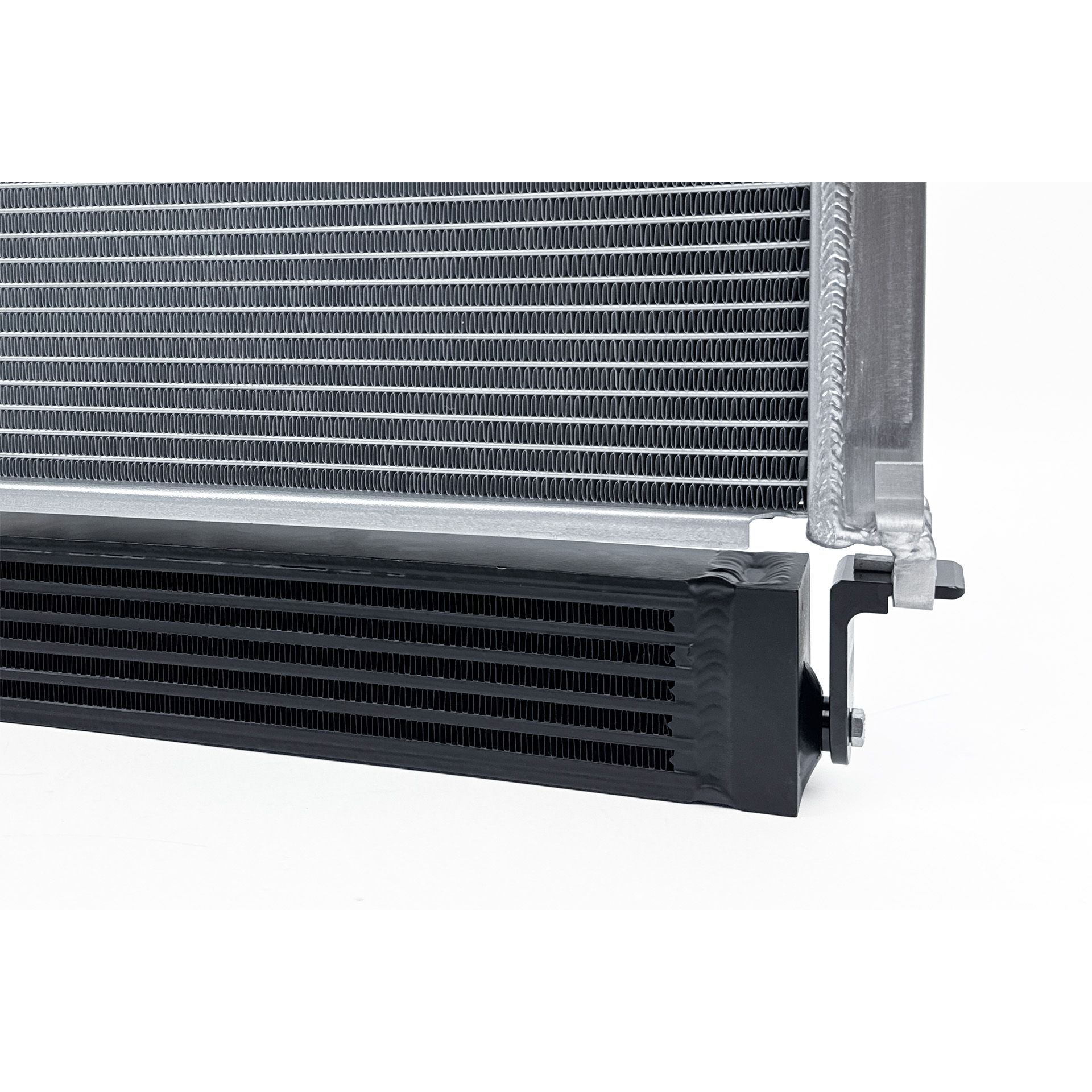

  • Designed to Work with OE & CSF All-Aluminum Radiator (CSF #3054)
  • OE Style Black Finish
  • Accepts Factory Oil-Line Connections
  • Mounts using OE Brackets or BimmerWorld Bracket Kit (#TEN3631201)
  • Uses OE E36 Euro Spec Oil Cooler Lines (Pipe) – BMW PN: 17212227235
SKU: GQPL-8301 Category:

The CSF Oil Cooler was designed to be a 1 to 1 replacement for the OEM unit in terms of fitment. This means it uses the same OE mounting points, hardware, and lines. For a EU E36 M3 or USMD Z3M the oil cooler will be a drop-in fit installation. E36 models that were not equipped with the oil cooler from the factory can use the BimmerWorld Euro Oil Cooler Bracket Kit which can attach to an OEM spec Radiator or the CSF #3054.

Additional Attributes:

GTIN: 00710353083017
ADD-ON: 3054
Cable Included: No
Color: Black
Core Charge Applicable: No
Core Material: Aluminum
Core Row Quantity: 1
Core Tube: No
Finish: Paint
Grade Type: Performance
Inlet Fitting Type: Female
Installation Type: Drop-In Fit Installation
Mounting Hardware Included: No
Outlet Fitting Type: Female
Prop 65 Yes/No: No
Strap Included: No
Tube Included: No

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 25 x 6 x 5 inches
Weight: 6 PG

Weight 2.72 kg
Dimensions 25 × 6 × 5 cm
