Dodge Ram 5.9L/6.7L Cummins Transmission Cooler, 2003-2009 PRE-SALE

no more replacing the entire cooler if the thermostat fails. Owners in cold climates can still enjoy the fast warm-up times that the thermostat provides, while owners in hot climates can choose to bypass the thermostat by replacing it with the supplied stainless-steel bypass plug. To make this cooler even easier to install and service, Mishimoto'saves you the hassle of removing seized fittings. The provided CNC-machined, stainless steel hose barb fittings let you cut to the chase, literally. These fittings and the supplied transmission cooler hose allow you to remove the quick-disconnect fittings and connect the stock soft-line to the Mishimoto cooler. Like all Mishimoto products, this transmission cooler is backed up by our Lifetime Warranty

Additional Attributes:

GTIN: 00811580033513
Install Difficulty: 3
SellingPoint01: Fits all 2003-2009 Dodge Ram 5.9L and 6.7L Cummins
SellingPoint02: 212-percent Increase in core volume
SellingPoint03: 244-percent Increase in fluid capacity
SellingPoint04: Includes fully serviceable thermostat for fast warm-up in cold climates and thermostat bypass for constant cooling in hot climates
SellingPoint05: Stacked-plate design for tough and reliable cooling
SellingPoint06: Eliminates corrosion-prone quick-disconnect fittings
SellingPoint07: Available -8ORB to -8AN adapters allow the use of AN transmission fluid lines. (2 required)
SellingPoint08: Patent numberD912,701
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Applicable with 47RE, 48RE, and 68RFE Transmissions—-Dodge Ram 2500 I6 (5.9L) 2003-2007–Dodge Ram 2500 I6 (6.7L) 2007-2009–Dodge Ram 3500 I6 (5.9L) 2003-2007–Dodge Ram 3500 I6 (6.7L) 2007-2009–Dodge Ram 4500 I6 (6.7L) 2008-2009–Dodge Ram 5500 I6 (6.7L) 2008-2009
TechSpec Caution: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Construction: N/A
TechSpec Core Height (in): 10.94
TechSpec Core Length (in): 26
TechSpec Core Thickness (in): 0.87
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (qts): N/A

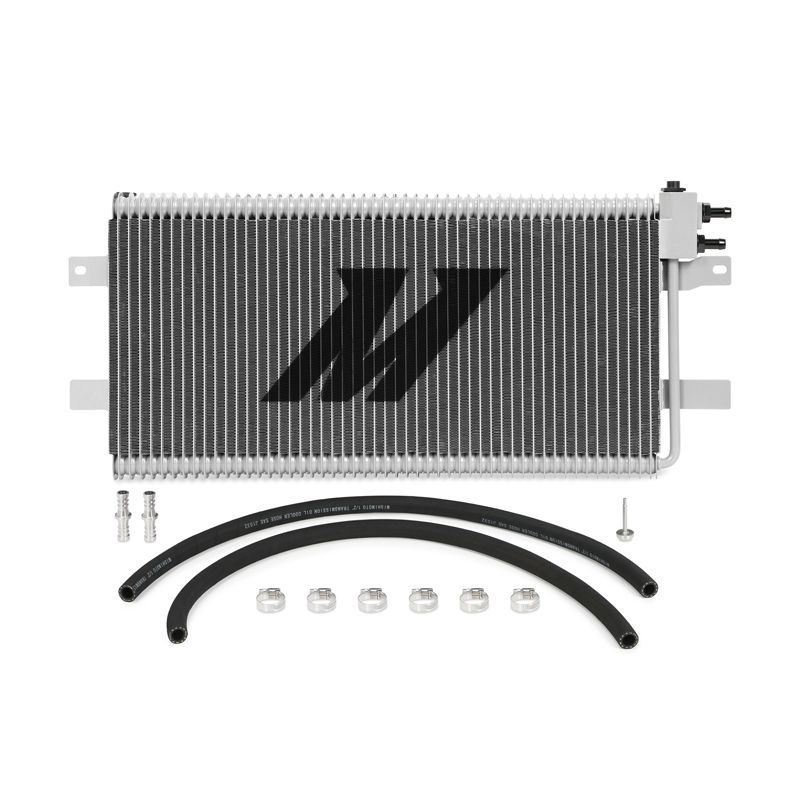

TechSpec Includes: Mishimoto Stacked-Plate Transmission Cooler–High-Pressure Transmission Cooler Lines–Removable Thermostat–Removable Thermostat Bypass–CNC-Machined Stainless Steel Barbed Fittings–CNC-Machined Aluminum 3/4-in-16 ORB to Hose Barb Fittings–Worm Gear Clamps–Mishimoto Lifetime Warranty
TechSpec Inlet: N/A
TechSpec Installation Notes: N/A
TechSpec Note: Patent #D912701——–This kit requires cutting of the stock transmission cooler lines to remove the quick-disconnect fittings. Mishimoto provides CNC-machined stainless steel hose barb fittings to splice the supplied transmission cooler line with the stock soft-lines. Please see installation instructions for more details.
TechSpec Outlet: N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Rows: 48

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 33 x 5 x 15 inches
Weight: 8.5 PG
