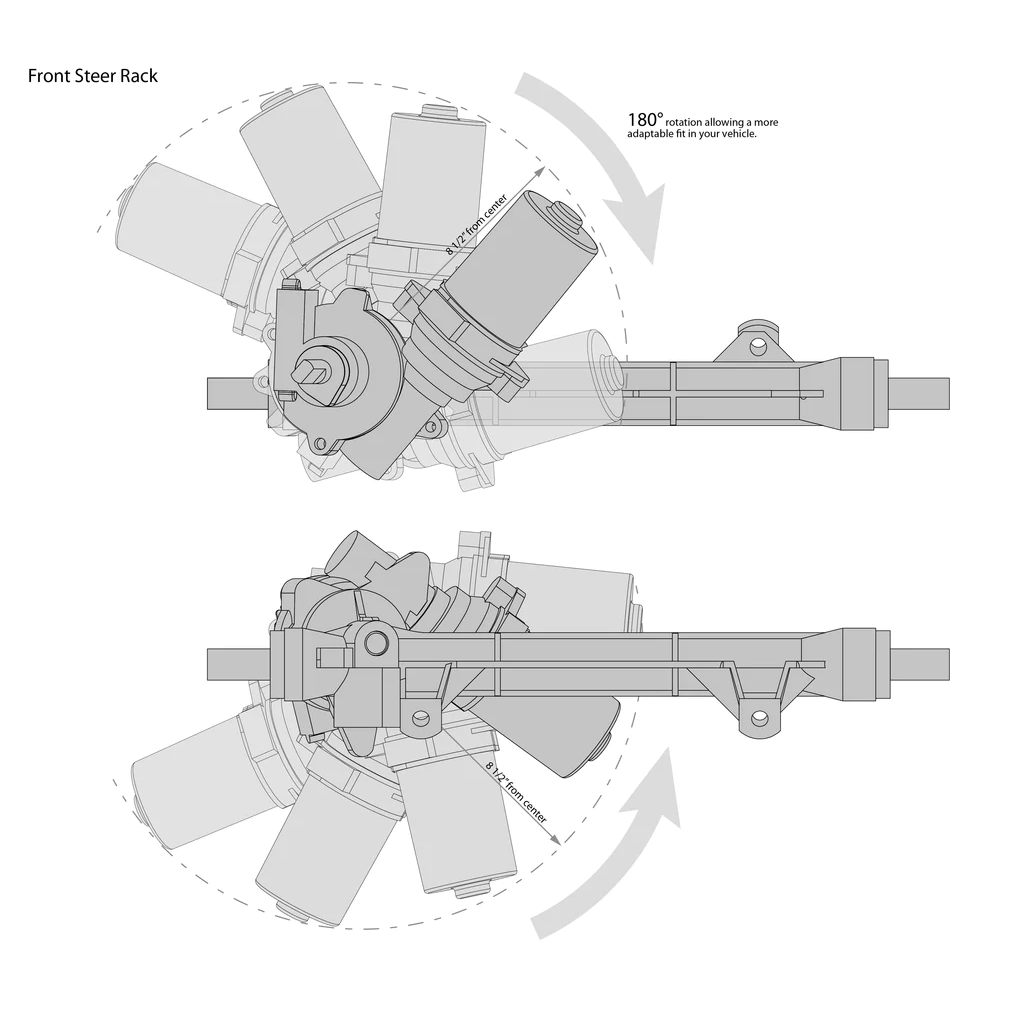

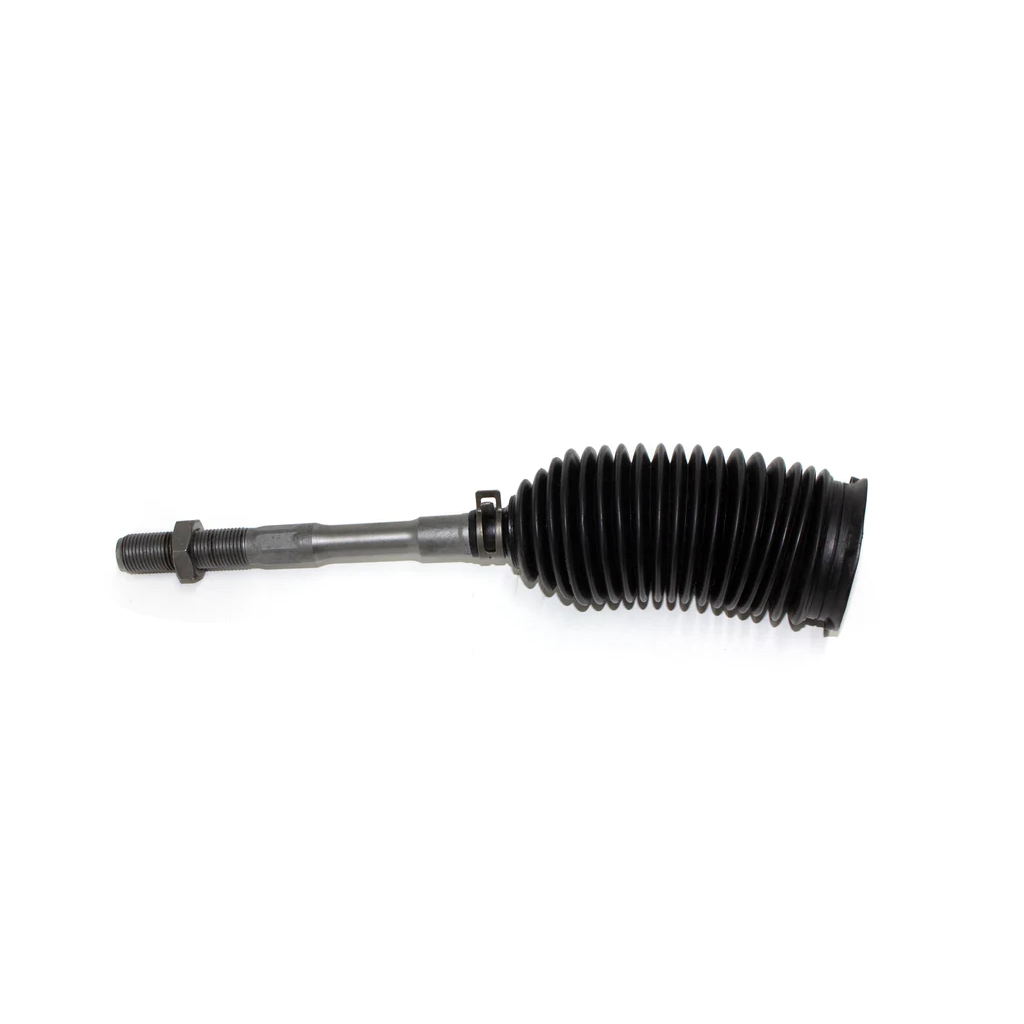

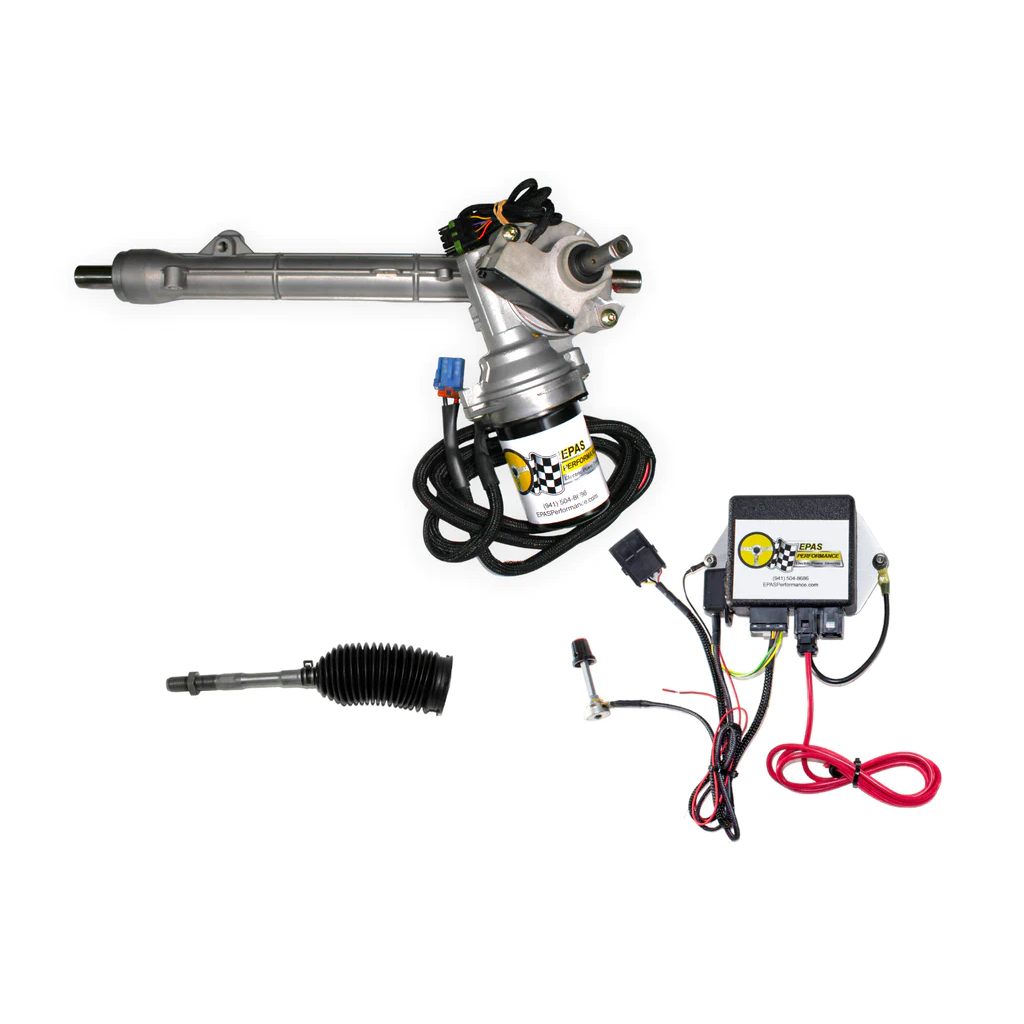

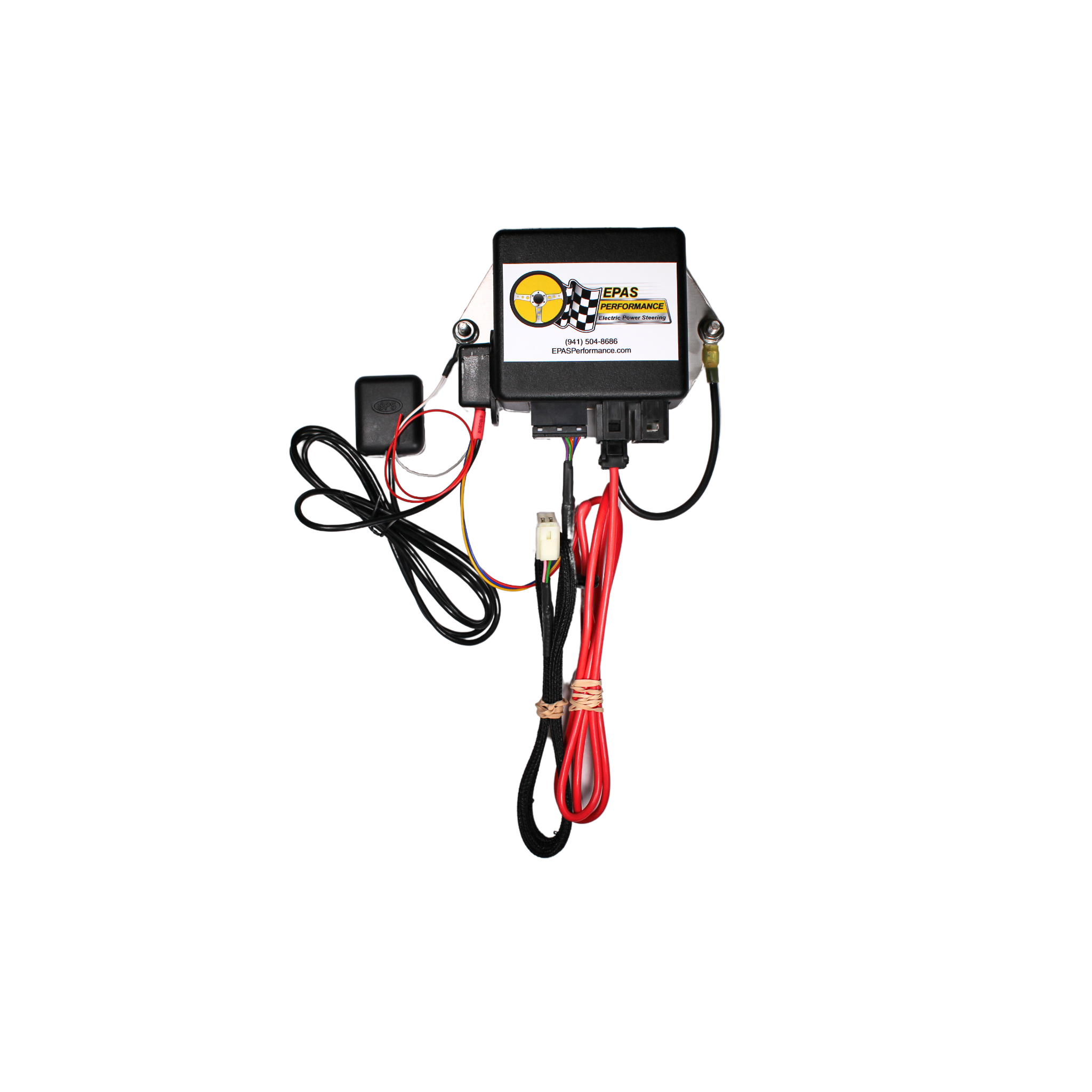

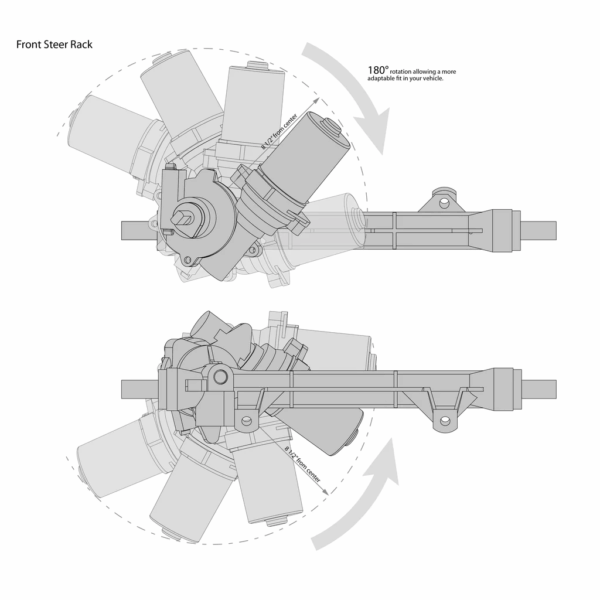

System allows rotation of up to 180 for the electric motor portion allowing a more adaptable fit in your vehicle. Available in 3.2 lock-to-lock ratio with 65 amp motor INCLUDED IN KIT: Electric rack & Pinion Prewired control module KIT NOTES: Total travel is 6.5'' Features a low 9 amp draw Comes fully pre-wired and weatherproof (motor only) Fully adjustable Factory calibrated Boots & tie rods available for purchase Tie rod ends not included Requires welding and cutting Builder will have to make his own support HOW IT WORKS: The computer measures the amount of effort on the steering wheel and amplifies it with the aid of the electric motor. An ADJUSTABLE POTENTIOMETER gives you control over the amount of assistance provided, allowing you to fine tune your EPAS experience. For example, you can have maximum power assist while on a parking lot, and less on the highway. The system is only active while turning. The GPS AUTO ADJUST option will do the same thing automatically based on your vehicles speed. GPS Auto Adjust For blueprints, CAD drawings, or specific measurements please email admin@epasperformance.com.
Additional Attributes:
GTIN: 00887753921130
Clockable Motor: No
Steering System: Rear Steer
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 24 x 12 x 8 inches
Weight: 20 PG
