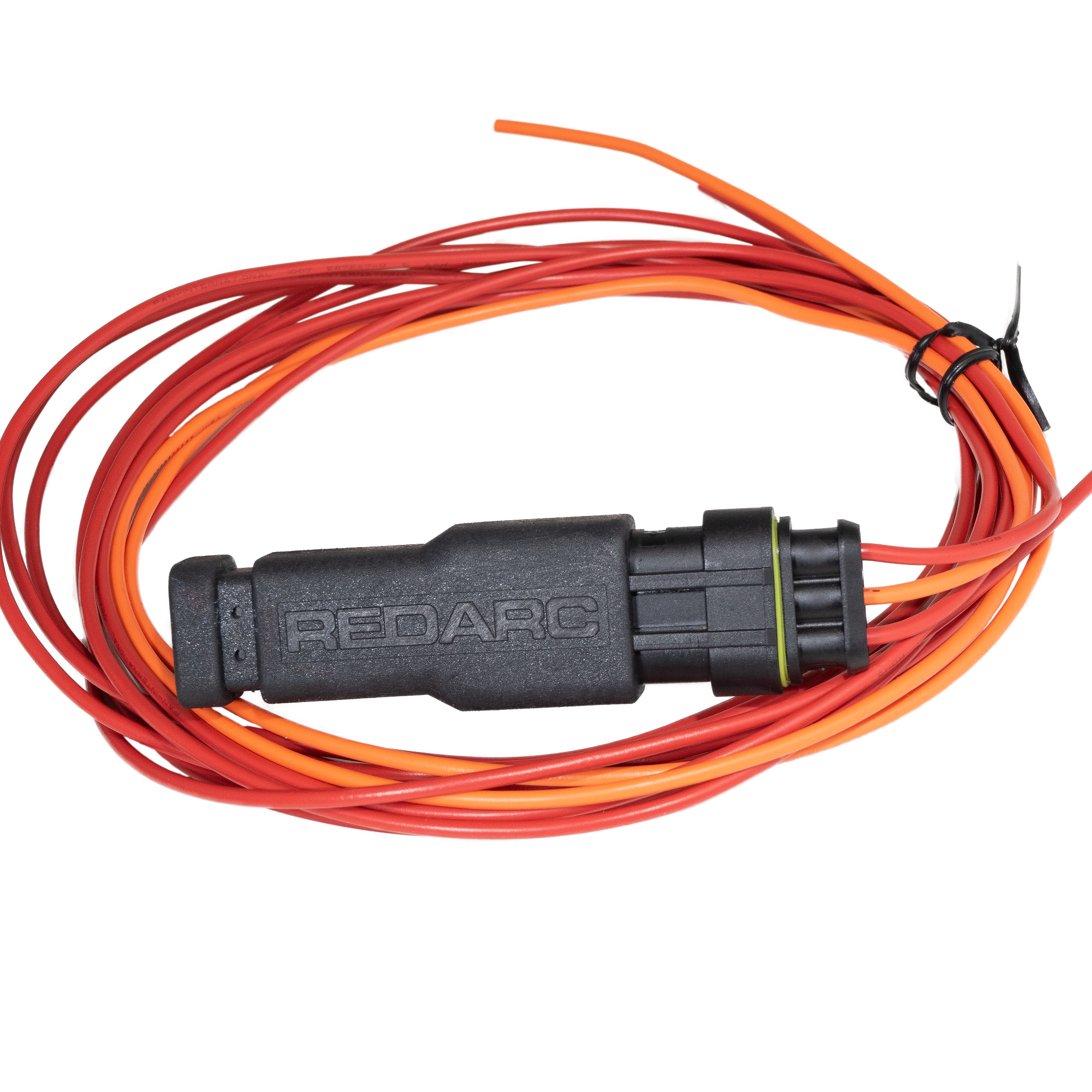

REDARC has released an Encapsulated Protection Device (EPDK-001). It is rated at 7 Amps for both 12 and 24V applications. It is totally encapsulated with sealed connections. The EPDK-001 has been designed to fit in the Trailer Stop Lamp feed to support the installation of Tow-Pro Electric Brake Controllers on vehicles where ?back-feed' of 12V (during Tow-Pro Manual Override) may interfere with the vehicle systems. When installed correctly, the EPDK-001 ensures correct Trailer braking and Stop Lamp operation when the vehicle brakes or the Tow-Pro Manual Override is used. It supports 12V and 24V applications capable of supporting a maximum continuous current of 7 Amps at a maximum ambient temperature of 850 deg C.
Additional Attributes:
GTIN: 09338628005581
Prop 65 (C,R or CR): C
Prop 65 – Short Label: WARNING: This product contains a chemical known to the State of California to cause cancer
Prop 65 – Warning Label: Warning.JPG
Prop 65 Yes/No: YES
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 0.5000 x 5.9000 x 7.8700 inches
Weight: 0.1700 PG
