<p>Each member company of the Hedman Performance Group is a specialist in the field they serve. Hedman hedders specializes in headers, Trans-Dapt Engine/transmission swap mounts, and Hamburger's focuses on oil pans. Working together, the HP Group companies join as one to develop comprehensive kits that include everything you'll need to safely, and properly, fasten the donor LS engine to the 1968-72 GM A-Body chassis. Sold as a single part number, purchasing complete engine swap kit ensures the products have been developed to work with each other, and takes the guesswork out of choosing swap products.</p><p>This Swap-In-A-Box Kit is developed specifically for installing an LS engine and 4L60E or 4L70E automatic transmission into 1968-72 GM A-Body cars (Buick Skylark, Chevy Chevelle, El Camino, Monte Carlo, Oldsmobile Cutlass, 442, Vista Cruiser, Pontiac GTO, LeMans, Tempest). This comprehensive kit includes a pair of mild steel, polished silver ceramic-coated 1-3/4" diameter, Long Tube headers with gaskets, bolts and exhaust adapters, a complete engine mount kit with hardware and rubber pads, and an LS swap engine oil pan with bolts, gaskets and special pick-up tube</p><p>Kits for TH350 and TH400 auto transmission projects, as well as kits with Hedman's Black-Maxx satin black ceramic-coated, or uncoated headers are also available.</p><p>Headers are backed by a limited lifetime warranty. All other components are covered for a full year from the date of purchase.</p>
Additional Attributes:
GTIN: 00086923460077
Air Conditioning: Yes
Automatic Transmission – Column: Yes
Automatic Transmission – Floor: Yes
Baffled: No
Bolts/Studs Included: Yes
California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
Chassis Compatibility: CHEVY ONLY. Buick, Pontiac, Olds models require frame kit #9596. Sold separately
Collector Bolts Included: Yes
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)

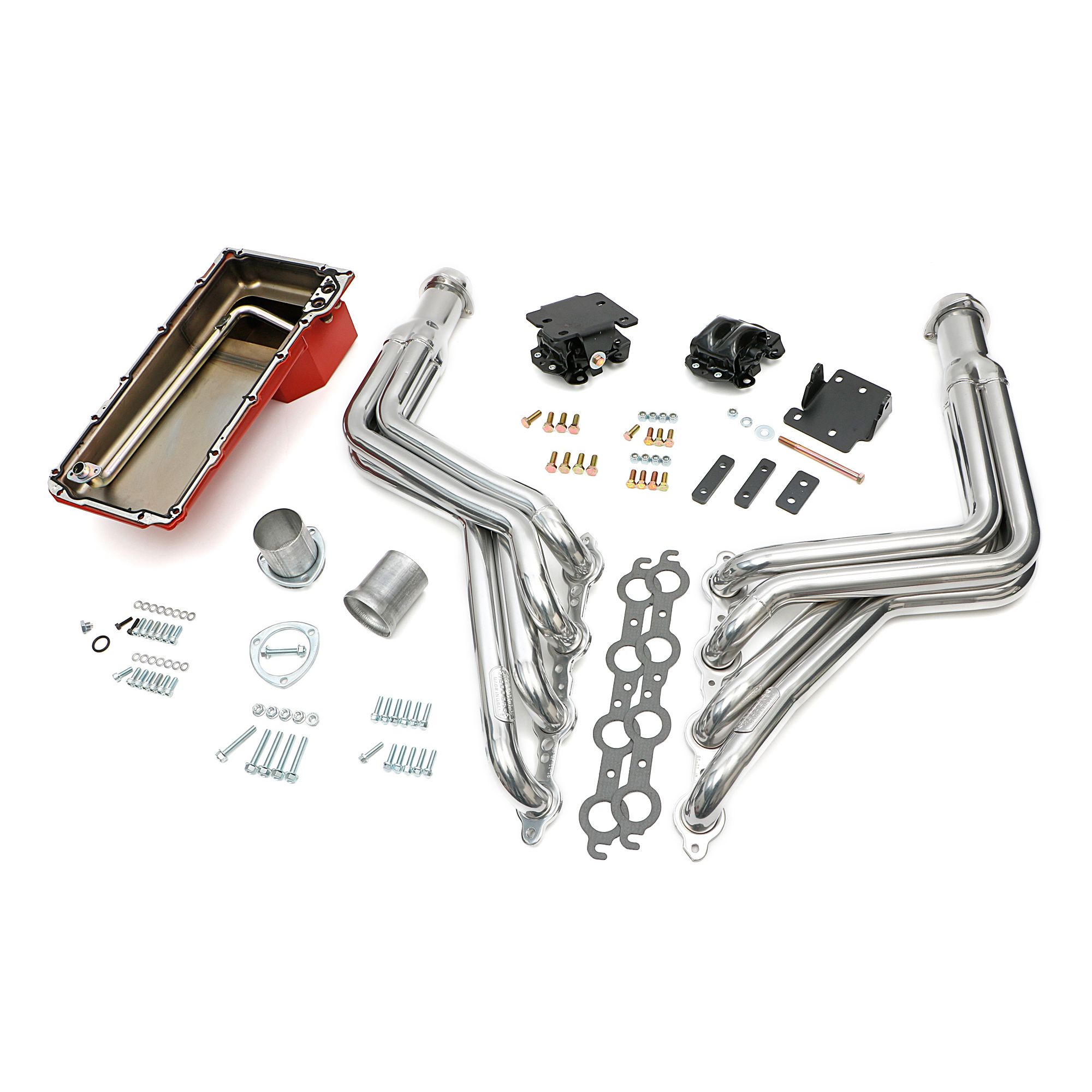

Contents: Headers; Engine Mounts; Oil Pan; related gaskets and Hardware
Crank Shaft Wiper Included: No
Cylinder Head: Factory Style
Dipstick Port: No
Drain Plug Included: Yes
Emissions Notes: Not Legal For Street Use on ’75-Later Model Years! Legal for off-road use only.
Engine: Chevy LS Series
Exhaust System Dia: 2-1/2 in.
Fastener(s) Included: Yes
Finish: HTC Polished Silver Ceramic-Metallic
Flange Thickness: 0.375 in.
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Header Finish: HTC Polished Silver Ceramic-Metallic
Header Material: Mild Steel
Header Port Shape: Round
Header Style: Long Tube
Hedman Hedders Included: Yes
IMPORTANT!: Some LS have dipstick in pan and will require drilling of dipstick port on block
Installation Hardware Included: Yes

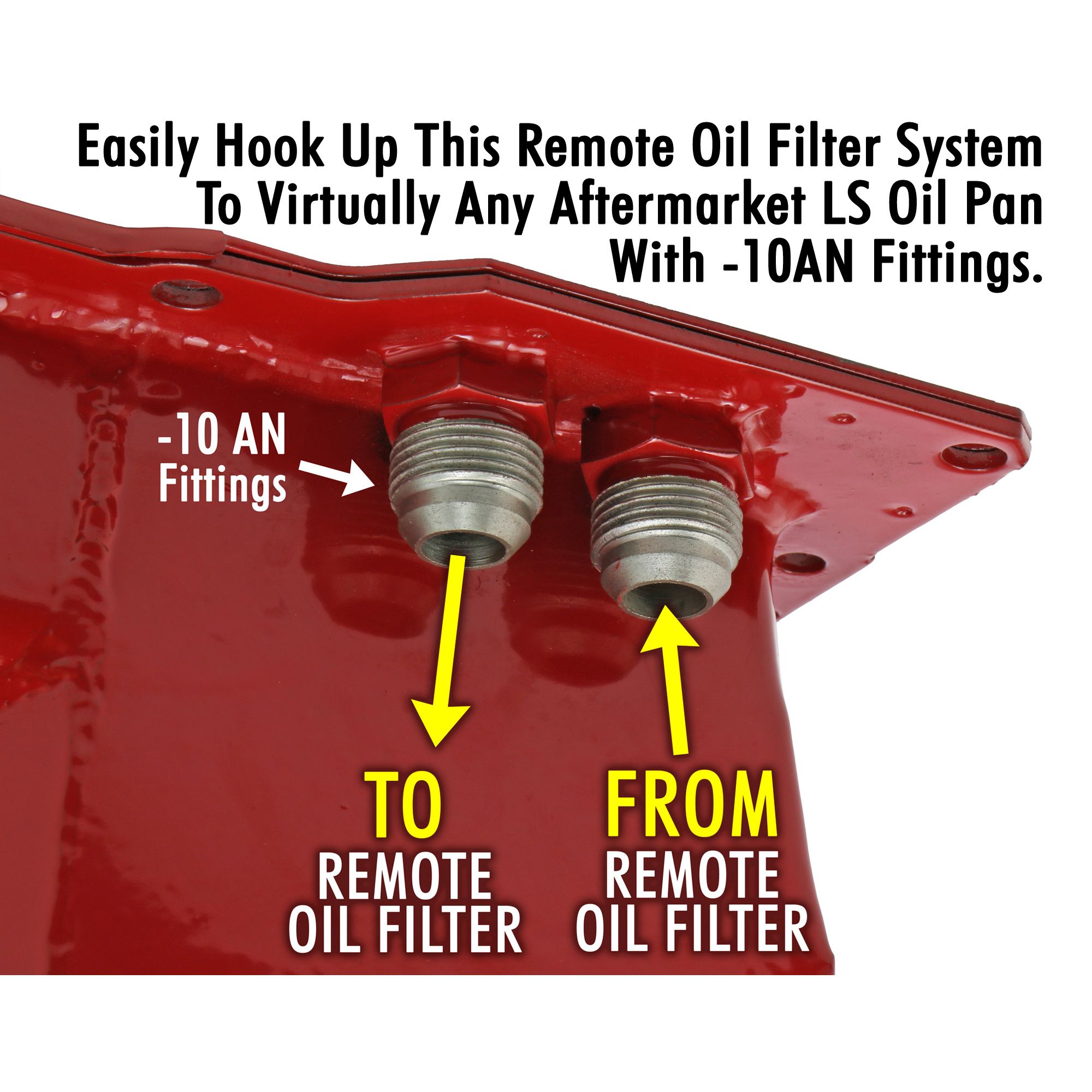

Installation Notes: Pan has -10AN inlet / outlet ports, and requires relocation of the oil filter.
Kicked Out: No
Manual Transmission – Column: No
Manual Transmission – Floor: No
Material: Mild Steel
Model/Trim Details: COUPE Models
O2 Provision: No
O2 Sensors Included: No
Oil Pan Bolts Included: Yes
Oil Pan Capacity: 5 Qt. Capacity

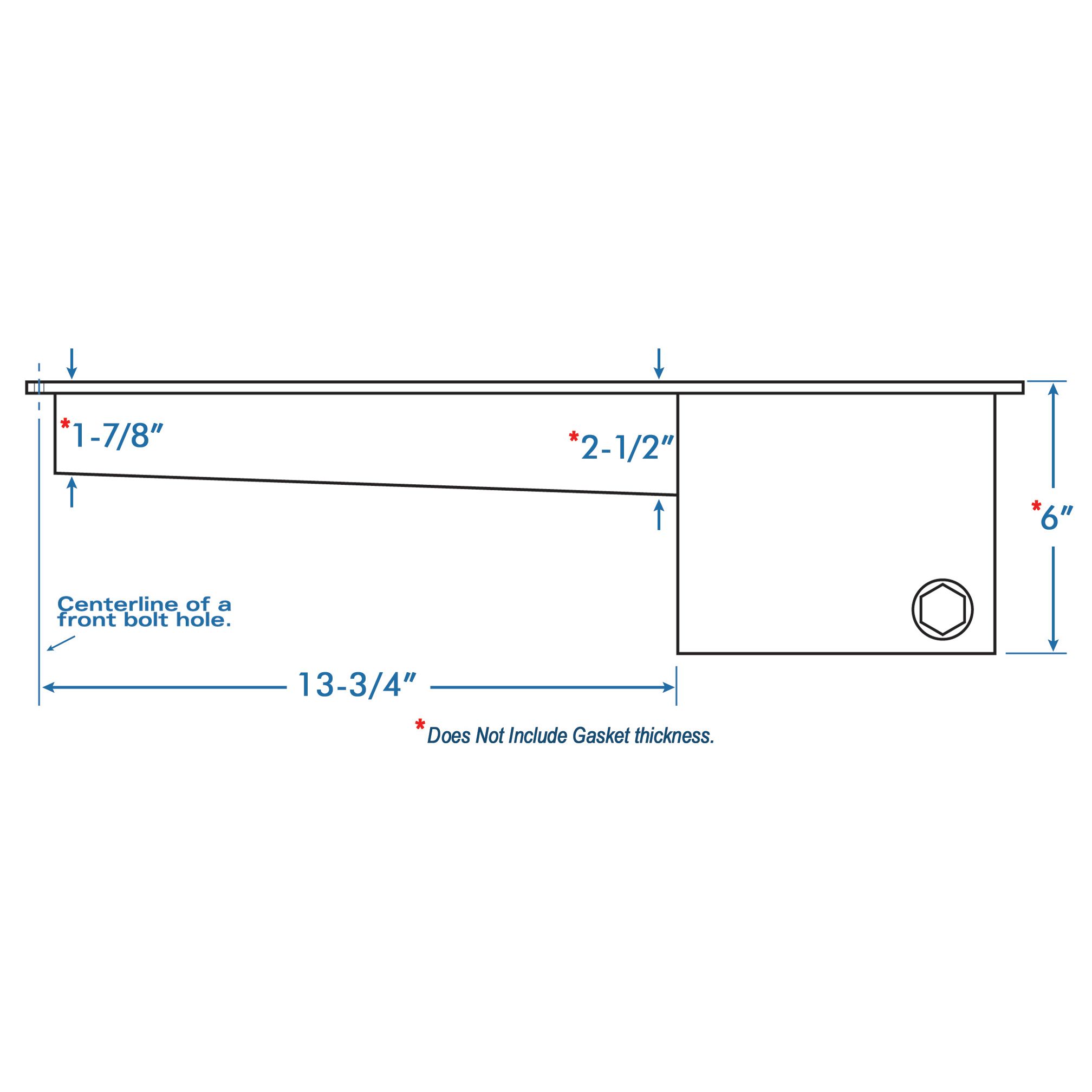

Oil Pan Depth (in): 2 in. at front of Pan; 6 in. at Rear Sump
Oil Pan Finish: Red Painted
Oil Pan Included: Yes
Oil Pan Material: Steel
Oxygen Sensor Bung Included: No
Package Contents: Headers; Engine Mounts; Oil Pan; related gaskets and Hardware
Pickup #: 2522
Pickup Included: Yes
Port Shape: Round
Power Steering: Yes
Primary Tube Diameter (in): 1.75 in.
Primary Tube Gauge: 16g
Product Details: Engine swap kit for installing an LS engine into 1969-72 Chevrolet Chevelle.
Product Type: Complete SWAP-IN-A-BOX Kits
Reducer Outlet Diameter: 2-1/2 in.
Reducer Outlet Size: 2-1/2 in.
Reducers Included: Yes
Replacement Gasket: 27470
Replacement Head Flange Gasket: Yes
Replacement Headers: 68156
Replacement Motor Mount Kit: 4600
Replacement Mount Pads: 4602
Replacement Oil Pan: 1108
Sump Dimensions: 6 in. Deep x 8.25 in. Wide x 7 in. Long
Sump Location: Rear
Sump Style: Wet Sump
Transmission Compatibility: 4L60E
Transmission Notes: Not for use with 4L80E or 4L85E Transmissions.
Transmission Type: Automatic Transmission
Tube Design: LONG TUBES
Tube Diameter: 1-3/4 in.
Tube Length: Long Tubes
Tube Size: 1-3/4 in.
Tube Style: Long Tubes
Variations: 46005, 46007,46008.
Vehicle Family: A-Body (GM) 1968-72
Welding Required: No
Windage Tray Included: No
Y-Pipe Included: No
Extended Information:
Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: KT
Dimension: 48 x 21.5 x 22 inches
Weight: 67.2 PG
