<p>Each member company of the Hedman Performance Group is a specialist in the field they serve. Hedman hedders specializes in headers, Trans-Dapt Engine/transmission swap mounts, and Hamburger's focuses on oil pans. Working together, the HP Group companies join as one to develop comprehensive kits that include everything you'll need to safely, and properly, fasten the donor LS engine to the vehicle's chassis. Sold as a single part number, purchasing complete engine swap kit ensures the products have been developed to work with each other, and takes the guesswork out of choosing swap products.</p><p>This Premium, stainless header Swap-In-A-Box Kit is developed specifically for installing an LS engine and manual transmission into 1970-74 Chevy Camaros and Pontiac Firebirds. This comprehensive kit includes a pair of uncoated, T304 Stainless steel Mid-Length headers with gaskets, bolts and exhaust adapters, a complete engine mount kit with hardware and rubber pads, LS swap engine oil pan with bolts, gaskets and special pick-up tube, and a transmission crossmember for use with a T-56 manual transmission.</p><p>Complete kits for automatic transmission projects, as well as kits with polished silver or satin black ceramic-coated headers are also available. Headers are backed by a limited lifetime warranty. All other components are covered for a full year from the date of purchase.</p>
Additional Attributes:
GTIN: 00086923422242
Air Conditioning: Yes
Automatic Transmission – Column: No
Automatic Transmission – Floor: No
Baffled: No
Bolts/Studs Included: Yes
California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
Collector Bolts Included: Yes
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)

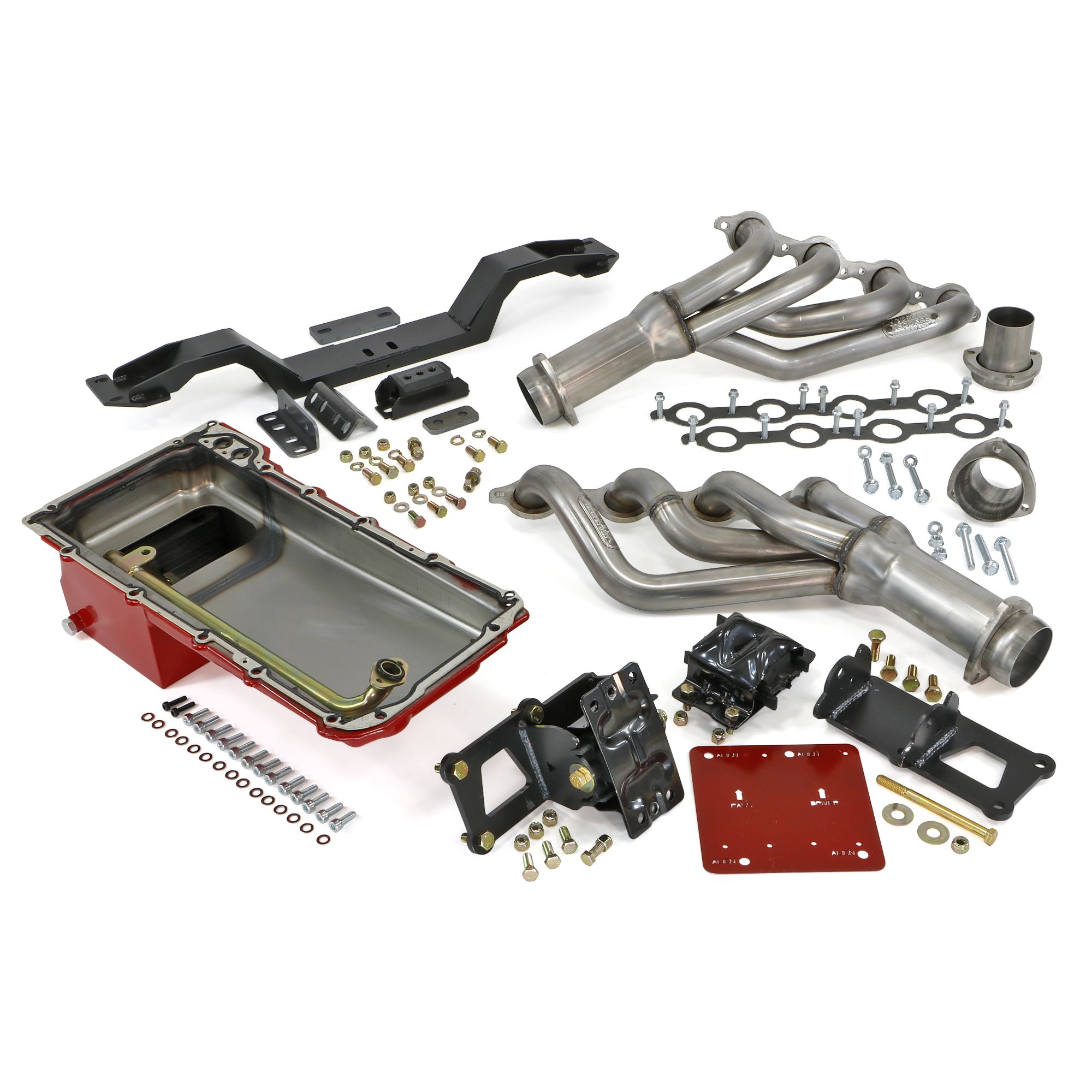

Contents: Headers; Engine Mounts; Transmission Crossmember; Oil Pan; Hardware and Gaskets
Crank Shaft Wiper Included: No
Cylinder Head: Factory Style
Dipstick Port: No
Drain Plug Included: Yes
Emissions Notes: Not Legal For Street Use on ’75-Later Model Years! Legal for off-road use only.
Engine: Chevy LS Series
Exhaust System Dia: 2-1/2 in.
Fastener(s) Included: Yes
Finish: Uncoated Headers
Flange Thickness: 0.375 in.
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Header Finish: Uncoated
Header Material: T304 Stainless Steel
Header Port Shape: Round
Header Style: Mid-Length Tube
Hedman Hedders Included: Yes
IMPORTANT!: Some LS have dipstick in pan and will require drilling of dipstick port on block
Installation Hardware Included: Yes

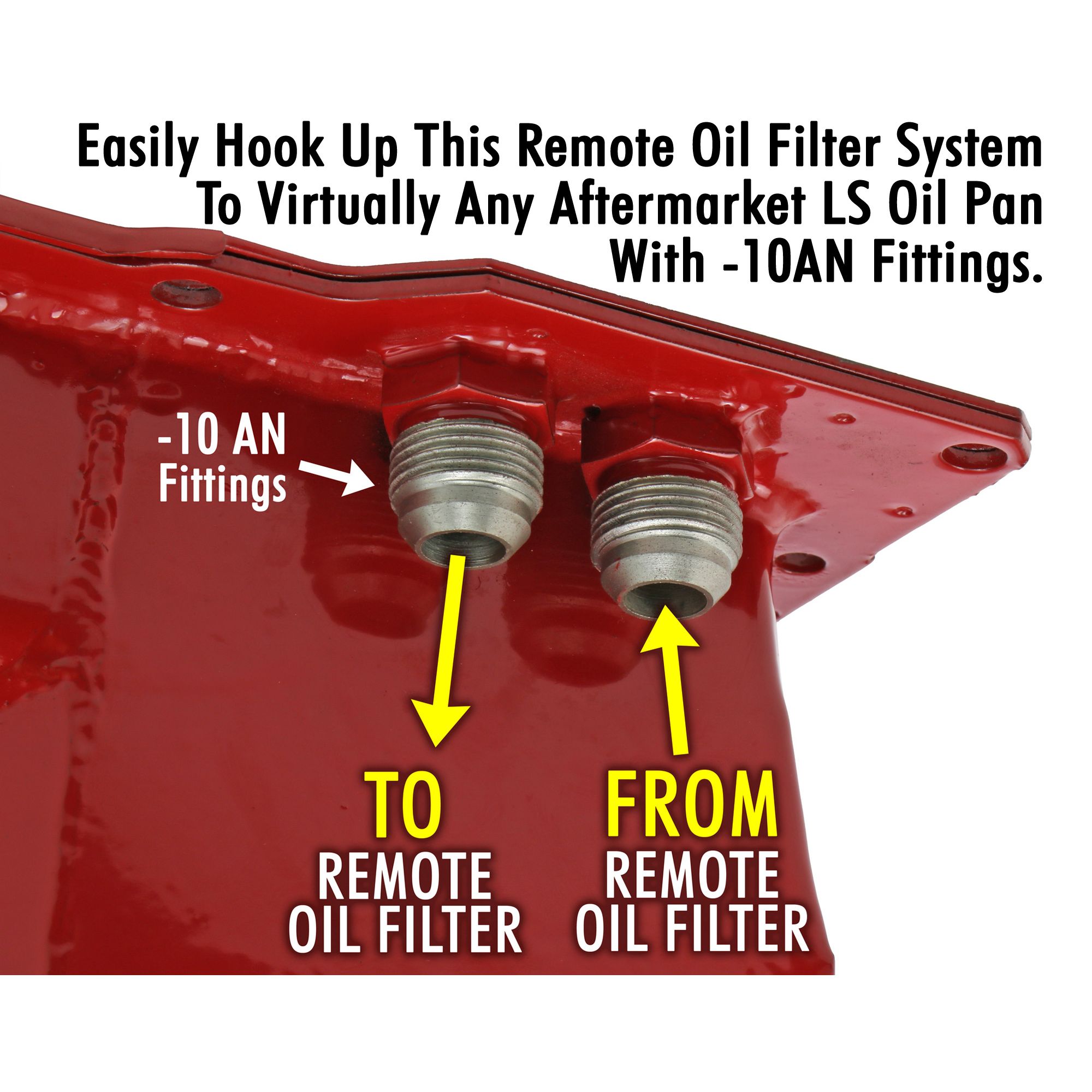

Installation Notes: Pan has -10AN inlet / outlet ports, and requires relocation of the oil filter.
Kicked Out: No
Manual Transmission – Column: No
Manual Transmission – Floor: Yes
Material: T304 Stainless Steel
O2 Provision: No
O2 Sensors Included: No
Oil Pan Bolts Included: Yes
Oil Pan Capacity: 5 Qt. Capacity
Oil Pan Depth (in): 2 in. at front of Pan; 6 in. at Rear Sump
Oil Pan Finish: Red Painted
Oil Pan Included: Yes
Oil Pan Material: Steel
Oxygen Sensor Bung Included: No
Package Contents: Headers; Engine Mounts; Transmission Crossmember; Oil Pan; Hardware and Gaskets
Pickup #: 2522
Pickup Included: Yes
Port Shape: Round
Power Steering: Yes
Primary Tube Diameter (in): 1.75 in.
Primary Tube Gauge: 16g
Product Details: Engine swap kit for installing an LS engine in 1970-74 F-Body
Product Type: Complete SWAP-IN-A-BOX Kits
Reducer Outlet Diameter: 2-1/2 in.
Reducer Outlet Size: 2-1/2 in.
Reducers Included: Yes
Replacement Gasket: 27470
Replacement Head Flange Gasket: Yes
Replacement Headers: 62720
Replacement Motor Mount Kit: 4202
Replacement Mount Pads: 4209
Replacement Oil Pan: 1108
Sump Dimensions: 6 in. Deep x 8.25 in. Wide x 7 in. Long
Sump Location: Rear
Sump Style: Wet Sump
Transmission Compatibility: T-56

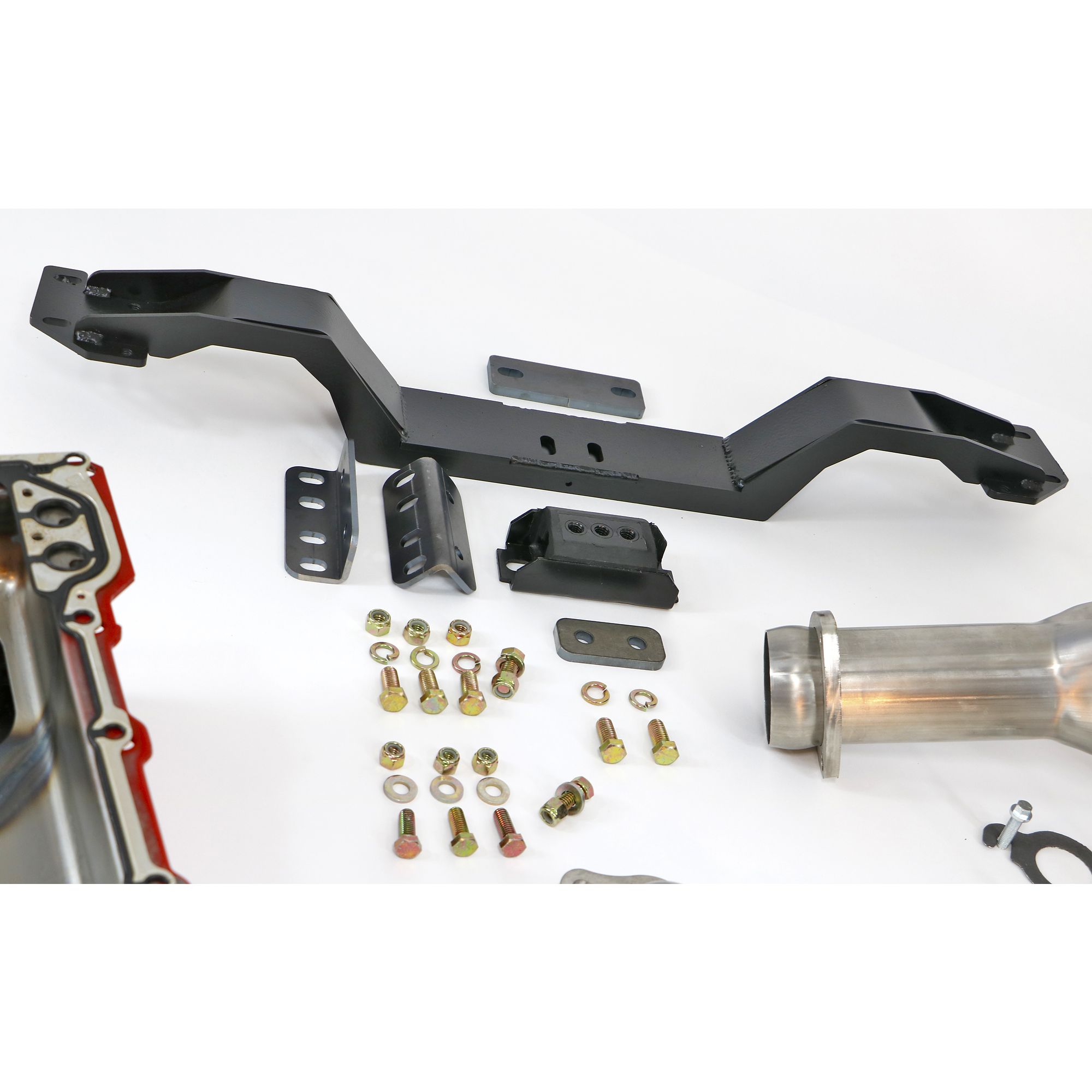

Transmission Mount Type: Crossmember
Transmission Type: Manual Transmission
Tube Design: MID-LENGTH
Tube Diameter: 1-3/4 in.
Tube Length: Mid-Length Tubes
Tube Size: 1-3/4 in.
Tube Style: Mid-Length
Variations: 42024, 42025, 42026.
Vehicle Family: F-Body (GM) 1970-74
Welding Required: No
Windage Tray Included: No
Y-Pipe Included: No
Extended Information:
Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: KT
Dimension: 39 x 22.25 x 22 inches
Weight: 80.75 PG
