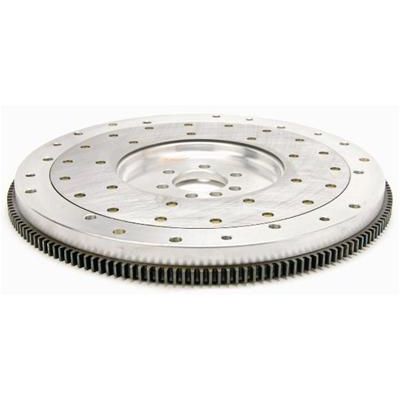

Mcleod Aluminum Flywheels Are Ideal For Numerous Applications Such As Supercharged Or Turbocharged Engines. These Flywheels Are Ideal For Higher Horsepower Engines And Combinations That Achieve Rapid Rpm Levels. Mcleod Aluminum Flywheels Are Cnc Machined From 6061 T6 Aluminum And Come With A Replaceable Steel Friction Plate And 1045 Steel Hardened Ring Gear.
Additional Attributes:
GTIN: 00887753012012
Crankshaft to Flywheel Bolt Quantity: 6-bolt
Disc Diameter (in.): 11.000/12.000 in.
Engine Balance: Internal
Engine: 1997-2013 LS1/LS2/LS3/LS6/LS7
Flywheel Material: Billet aluminum
Make: Chevrolet
Marine Use: No
Notes: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Pressure Plate Style: Borg & Beck/Diaphragm
Quantity: Sold individually.
Rear Main Seal Style: 1-piece
Replaceable Friction Surface: Yes
Ring Gear Tooth Quantity: 168-tooth
SFI 1.1 Approved: Yes
Weight: 15.000 lbs.
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 14.5 x 14.5 x 2 inches
Weight: 15 PG
McLeodProductInstructions
