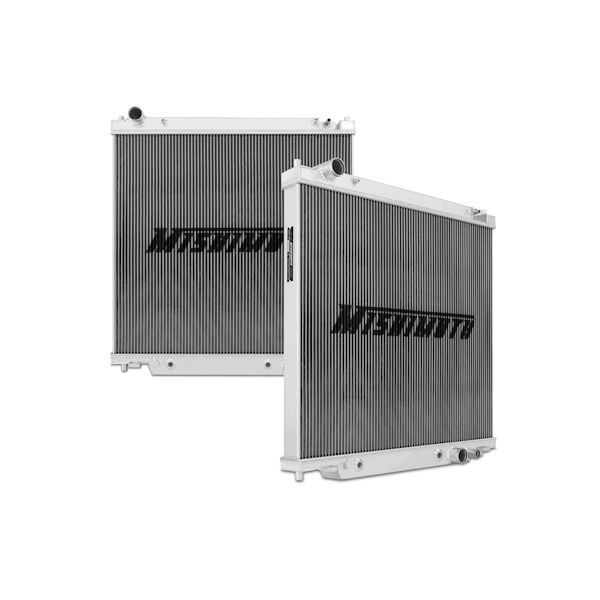

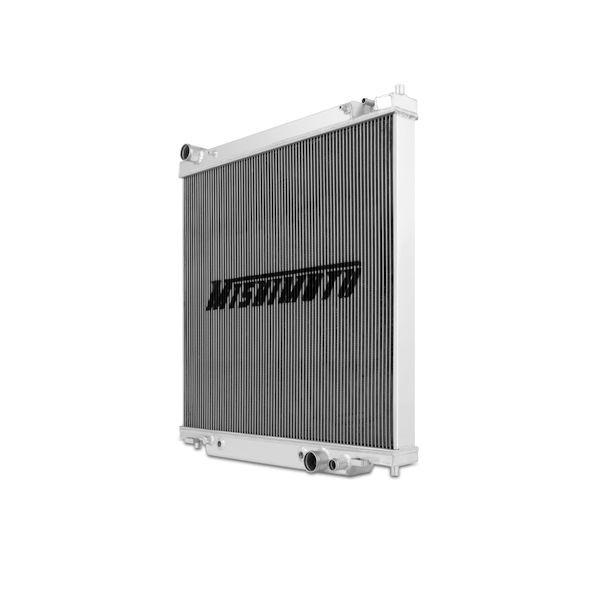

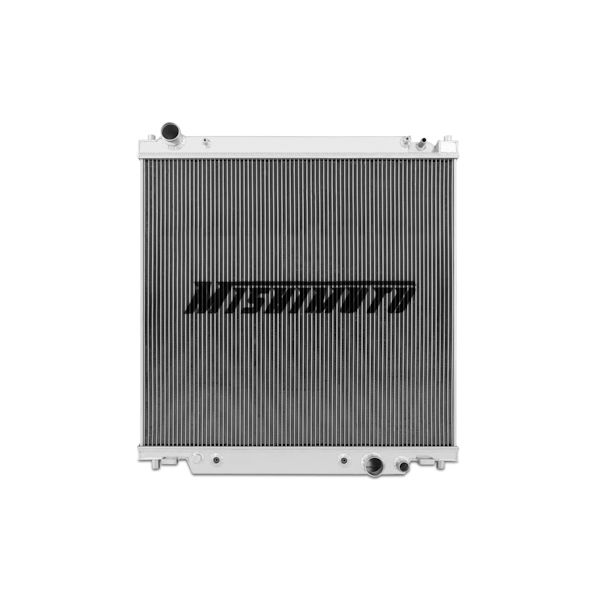

Ford 7.3L Powerstroke Aluminum Radiator

it bolts right up to the stock fan shroud, allowing for easy installation. Have a gas-powered Super Duty or Excursion in your fleet? We’ve got you covered, too, as this radiator is a direct replacement for the 5.4L and 6.8L Triton models as well! Included with the Mishimoto Powerstroke aluminum radiator is our magnetic drain plug and signature Lifetime Warranty.

Additional Attributes:

GTIN: 00748354810363
Install Difficulty: 3
SellingPoint01: Direct fit for 1999-2005 F-250, 350, 450, 550 and Excursion with the 5.4L, 6.8L, and 7.3L

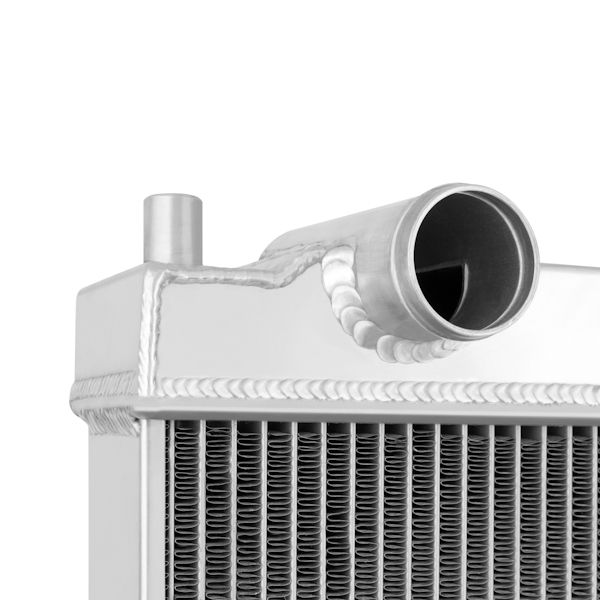

SellingPoint02: Full aluminum construction with durable, TIG-welded end tanks
SellingPoint03: Features a two-row, 2.2-in thick brazed aluminum core, providing ideal fluid temperature regulation
SellingPoint04: Increased fluid capacity and superior heat dissipation
SellingPoint05: Perfect upgrade to the stock plastic end tank radiator
SellingPoint06: Ideal for trucks transporting heavy loads, towing, and/or driving in extreme environments
SellingPoint07: Includes Magnetic Drain
SellingPoint08: Plug to capture any metallic debris/fragments in your cooling system
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1999-2004 Ford F-250 w/ 5.4L/6.8L/7.3L–1999-2004 Ford F-350 w/ 5.4L/6.8L/7.3L–1999-2004 Ford F-450 w/ 6.8L/7.3L–1999-2003 Ford F-550 w/ 6.8L/7.3L–2000-2005 Ford Excursion w/ 5.4L/6.8L/7.3
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 26.5
TechSpec Core Length (in): 29.4
TechSpec Core Thickness (in): 2.2
TechSpec DPI: 2171
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 9.25
TechSpec Includes: Mishimoto Radiator– Magnetic Drain Plug–(4) Transmission Adapters–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.77
TechSpec Material: Aluminum
TechSpec Note: The transmission cooler fittings are: 1/2”-20 SAE and 5/8”-18 SAE female flare fittings. This product comes with two adapters of each size to ensure fitment with your vehicle
TechSpec Outlet (in): 1.77
TechSpec Overall Height (in): 30
TechSpec Overall Length (in): 31.7
TechSpec Overall Width (ins): 4.7
TechSpec Rows: 2

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 37 x 7 x 33 inches
Weight: 40 PG
