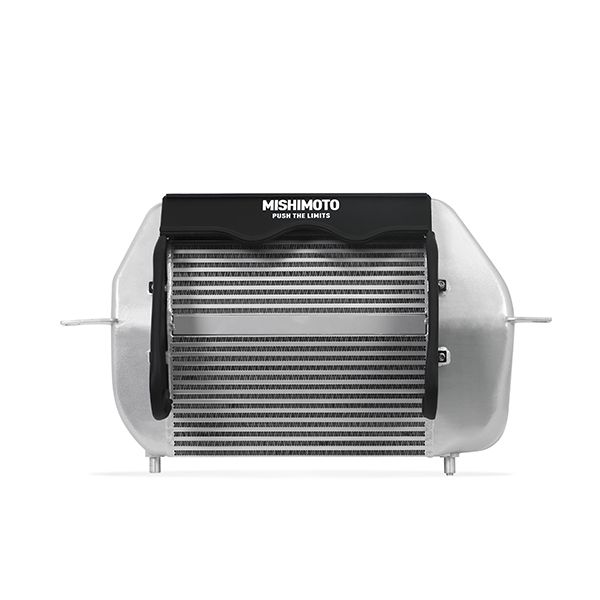

Ford F-150 Ecoboost Intercooler

Cool down those charge air temperatures with the Mishimoto direct-fit performance intercooler kit for the 2011-2014 Ford F-150 EcoBoost. The small, factory intercooler sits in the bottom part of spacious, but unconventionally shaped cavity behind the front bumper — There's a lot of wasted space there that could be used for cooling improvements! That's why the Mishimoto intercooler has been cleverly engineered to feature a unique angled design to take full advantage of the space for maximum performance, boasting an 88-percent increase in core size, a 66-percent increase in internal core volume, and a 40-percent increase in external fin surface area. Our all-aluminum, TIG-welded core is a tough and durable as the rest of your truck, and incorporates an NPT-threaded bung on the bottom to help deal with the condensation that the 2011-2014 F-150 is notorious for. Also included is a CNC bypass bung for 2011-2012 trucks, and a set of air diversion plates to guide ambient air directly through the core for the best performance possible. Speaking of performance, this intercooler has been dyno-tested for maximum gains using both the stock tune and a specialized tune to optimize the ECU to the improved cooling performance. The Mishimoto intercooler lowers intake temperatures by 50 F (10 C) compared to the factory part. Available in your choice of Stealth Black or Sleek Silver, every 2011-2014 F-150 EcoBoost intercooler fits with both the stock intercooler pipes and the upcoming Mishimoto performance hot and cold pipes, and each intercooler ships with the Mishimoto lifetime warranty.

Additional Attributes:

GTIN: 00748354031331
CARB EO Number: D-759-6
Install Difficulty: 3
OptionLabel: Sleek Silver
SellingPoint01: Direct fit for the 2011-2014 Ford F-150 EcoBoost
SellingPoint02: 50F (28C) reduction in AIT
SellingPoint03: 88-percent increase in core size
SellingPoint04: 66-percent increase in internal core volume and 40-percent increase in external fin surface area
SellingPoint05: Includes air diversion plates to direct air through the intercooler core for maximum efficiency
SellingPoint06: Stock location prevents airflow blockage to radiator and AC condenser

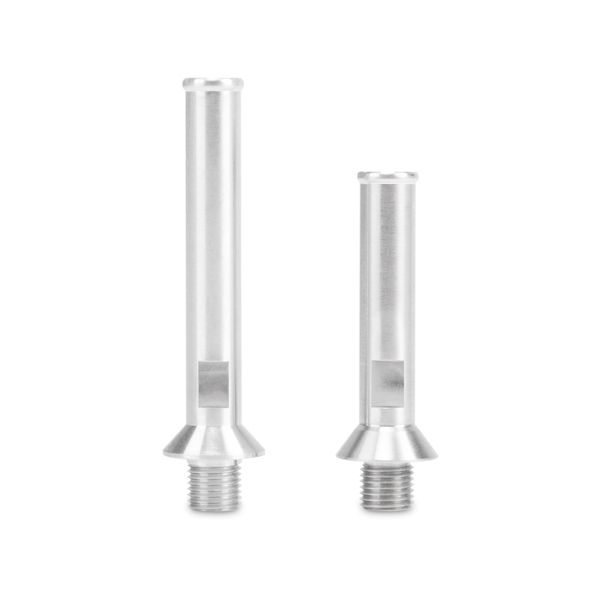

SellingPoint07: Features CNC Bypass Plug for 2011-2012 models
SellingPoint08: All-aluminum, TIG-welded construction
SellingPoint09: Available in Sleek Silver or Stealth Black
SellingPoint10: Fits with stock, Mishimoto, and most aftermarket intercooler pipe kits
SellingPoint11: 11 whp and 13 tq bolt-on power increase with stock tune
SellingPoint12: 39 whp and 33 tq bolt-on power increase with aftermarket performance tune
SellingPoint13: 1/4-in NPT drain plug incorporated into lower mount
SellingPoint14: Mishimoto Lifetime Warranty
SellingPoint15: N/A
TechSpec Applications: 2011-2014 Ford F-150 3.5L V6 EcoBoost–2015-2017 Ford Expedition 3.5L V6 EcoBoost–2015-2017 Lincoln Navigator 3.5L V6 EcoBoost
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: 3.5L V6 EcoBoost
TechSpec Includes: (1) Mishimoto Intercooler–(3) Air Diversion Panels with Assembled Rubber Trim–Mounting Hardware–(1) CNC Bypass Bung–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.5
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: N/A
TechSpec Outlet (in): 3
TechSpec Overall Height (in): 19
TechSpec Overall Length (in): 27.6
TechSpec Overall Width (in): 6.75
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 37 x 9 x 25 inches
Weight: 48 PG
