Ford Focus Hot-Side Intercooler Pipe Kit, 2016-2018

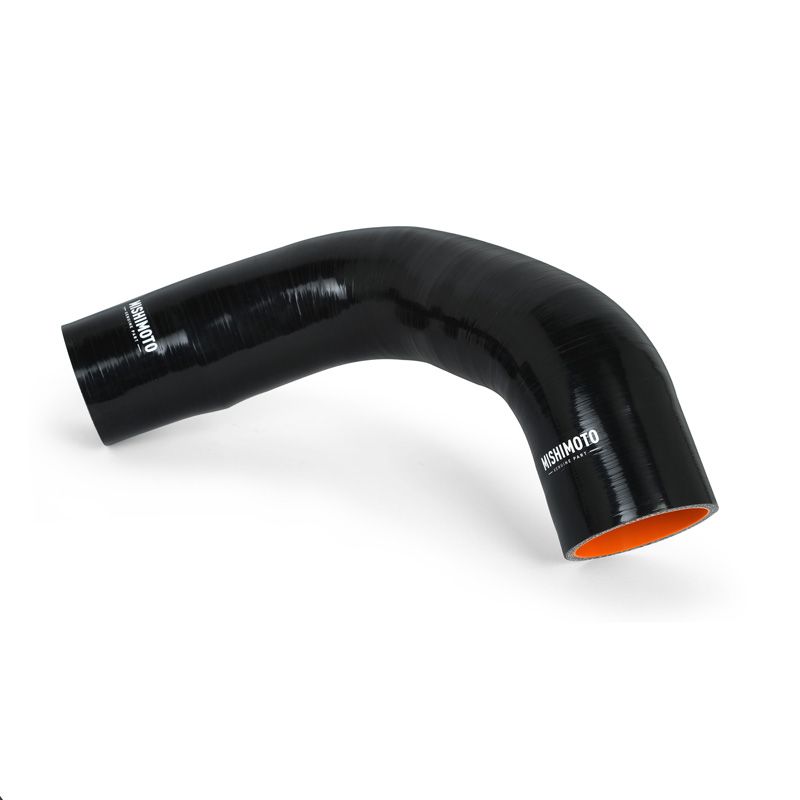

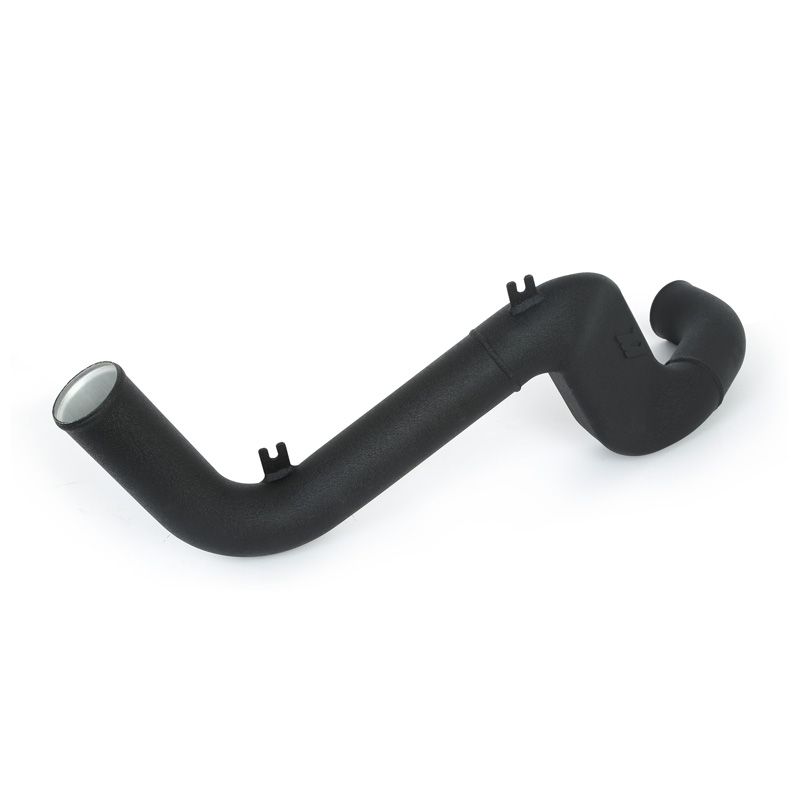

To complete our intercooler component lineup for the 2016-2018 Ford Focus RS, we at Mishimoto would like to introduce our Hot-Side Intercooler Pipe. This pipe has a truly innovative design that helps cool more than just air intake temperatures. Not only does it increase internal volume by 40-percent over stock with 2.5 inch inlet and outlet diameters, and maintain an average pressure drop of 45-percent, the cast mid-section retains the use of the factory ducting that directs airflow to the front PTU. A standard cylindrical pipe restricts airflow, and this doesn?t help the known problem of overheating drivetrains when the RS is being pushed to its limits. Our pipe is shaped to cleanly direct air right to the front PTU using that front duct, so airflow isn?t lost like with a traditional pipe design. In addition, this pipe comes with 5-ply, wire-reinforced silicone to attach to the turbo and intercooler, providing superior heat resistance and flexibility to accommodate for engine movement. The pipe can also fit without removing the lower cross bar. The kit comes with all necessary hardware, is a direct fit with no modifications necessary, and is backed by the Mishimoto Lifetime Warranty.

Additional Attributes:

GTIN: 00748354036282
Install Difficulty: N/A
SellingPoint01: Direct fit for the 2016-2018 Ford Focus RS
SellingPoint02: Silicone boots absorb the stresses of excessive engine movement
SellingPoint03: Designed to not block cooling to the PTU
SellingPoint04: 45-percent less pressure drop than stock hot-side pipe
SellingPoint05: 40-percent increase in internal volume compared to stock hot-side pipe
SellingPoint06: Both Mishimoto intercooler pipes and Mishimoto intercooler provide 35-percent less pressure drop than stock setup
SellingPoint07: Improves heat and pressure tolerance
SellingPoint08: Available in Wrinkle Black powder-coated finish
SellingPoint09: Fits both stock and Mishimoto Focus RS intercooler
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2016+ Ford Focus RS
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: C346
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Core Type: N/A
TechSpec Engine Codes: 2.3L EcoBoost GTDi I4

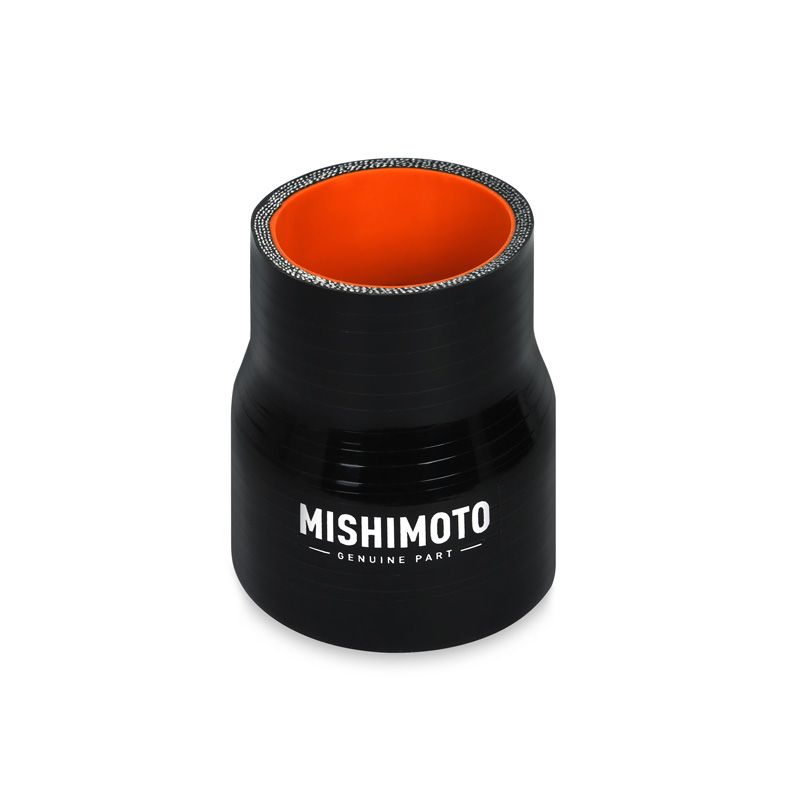

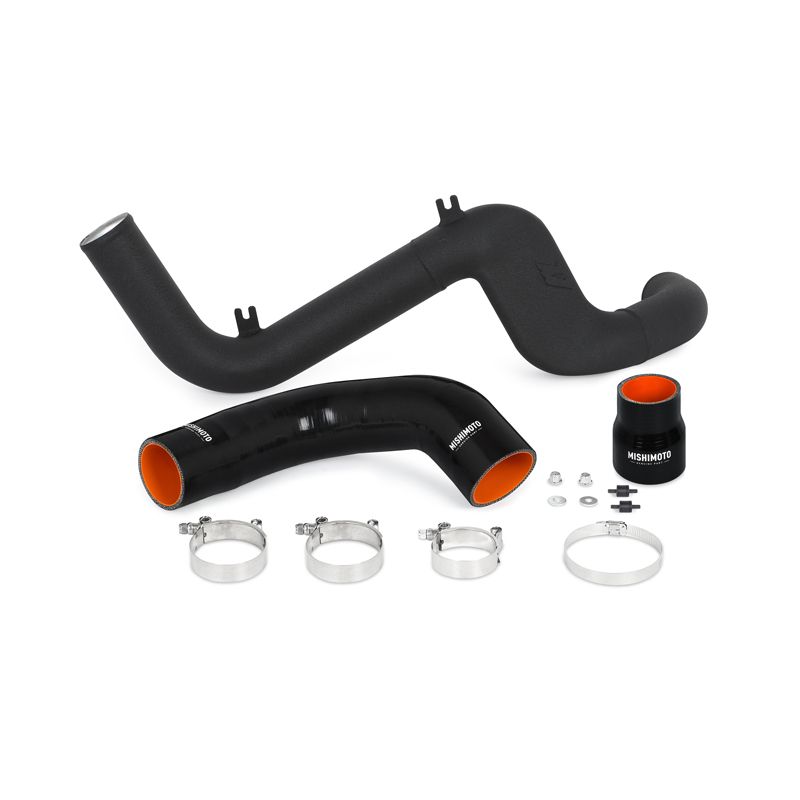

TechSpec Includes: (1) Hot-Side Intercooler Pipe–(2) Silicone Couplers–(2) Rubber Isolators–(3) Constant-Tension T-Bolt Clamps–(1) High-Torque Worm Gear Clamp–Hardware–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.5
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: N/A
TechSpec Outlet (in): 2.5
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): 28.5
TechSpec Overall Width (in): N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 29.5 x 10.6 x 9.5 inches
Weight: 8 PG
