Ford Focus RS Oil Cooler, 2016-2018

Nobody likes being sidelined at the track due to high engine oil temperatures. Mishimoto is here to help with a new line of efficient Focus RS parts. Some aggressive track laps can overheat your oil and wear out your engine, so our engineers have developed an oil cooling solution for your Focus RS! The Mishimoto engineers designed the heat exchanger for this project from scratch to create the one of largest oil cooler that we offer, and mounted it in the front of the vehicle where it receives the most airflow. Application-specific braided stainless steel lines transfer the oil from the cooler to the engine and feature -10AN fittings for an easy installation. This 2016 Focus RS oil cooler kit is available with either a Sleek Silver or Stealth Black cooler as well as an optional thermostatic sandwich plate. As with all our Focus RS parts, the Mishimoto Focus RS Oil Cooler Kit includes the Mishimoto Lifetime Warranty.

Additional Attributes:

GTIN: 00748354033717
Install Difficulty: 4
OptionLabel: Silver, Thermostatic
SellingPoint01: Direct-fit for the 2016+ Ford Focus RS

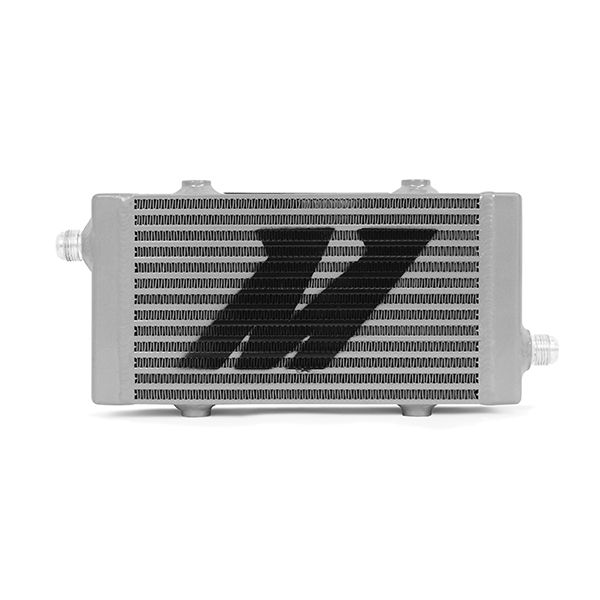

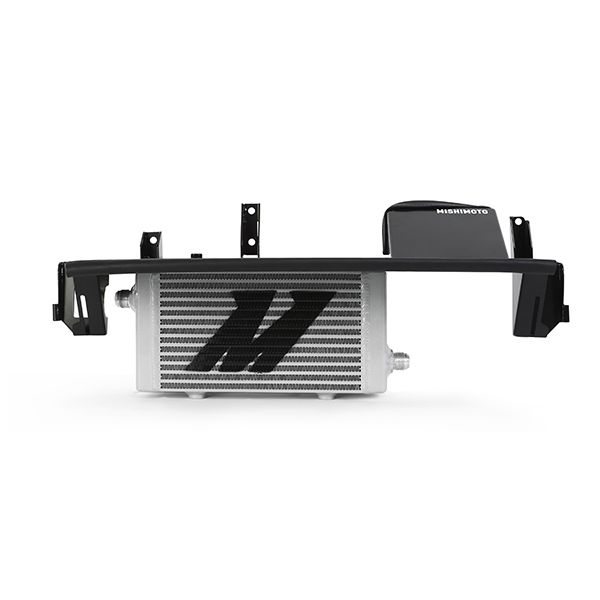

SellingPoint02: Innovative bar and plate oil cooler mounts in the upper grille

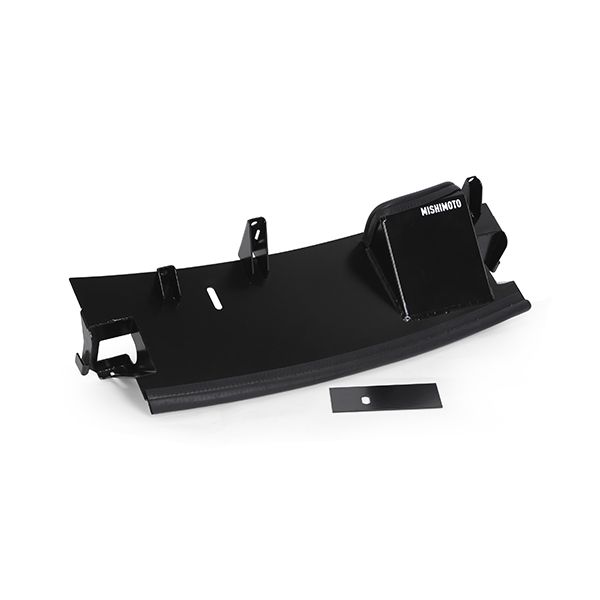

SellingPoint03: Mounting bracket also serves as an air diversion panel, directing the maximum amount of ambient air through the oil cooler
SellingPoint04: Pre-made stainless steel braided oil lines with durable -AN fittings
SellingPoint05: Built in air scoop drops IAT by 6 degrees
SellingPoint06: Includes billet aluminum oil sandwich plate or thermostatic oil sandwich plate
SellingPoint07: Cooler available in Sleek Silver or Stealth Black
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Caution: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Construction: N/A
TechSpec Core Height (in): 6.3
TechSpec Core Length (in): 13.98
TechSpec Core Thickness (in): 1.57
TechSpec Engine Codes: 2.3L EcoBoost
TechSpec Fluid Capacity (qts): 0.65

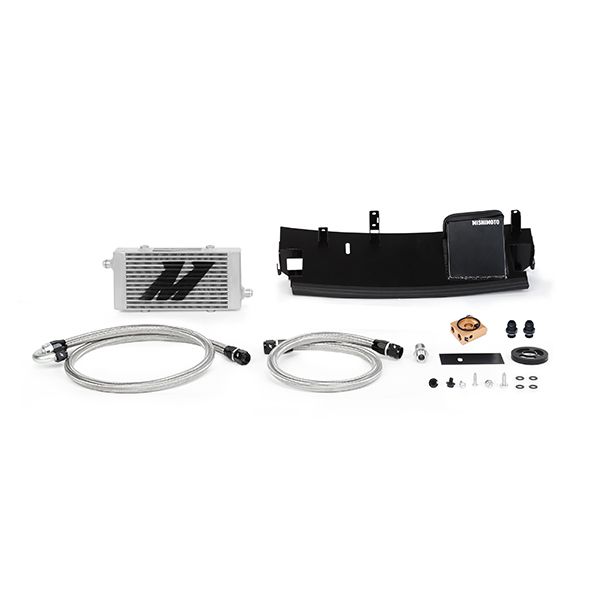

TechSpec Includes: Application Specific Mounting Bracket / Air Diversion Shield–Bar and Plate Oil Cooler–34in Stainless Steel Braided Hose w/ -10AN Fittings–51in Stainless Steel Braided Hose w/ -10AN Fittings–Oil Sandwich Plate–Application – Specific, 3/4-in 16 extended length center bolt–M20 x -10AN Straight Fittings–Mounting Hardware Set–Mishimoto Lifetime Warranty
TechSpec Inlet: -10AN
TechSpec Installation Notes: N/A
TechSpec Note: N/A
TechSpec Outlet: -10AN
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Rows: N/A

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 32 x 24 x 8 inches
Weight: 15 PG
