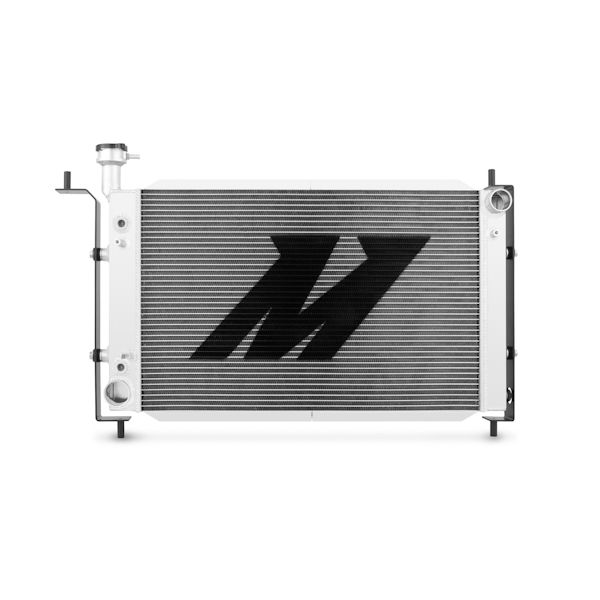

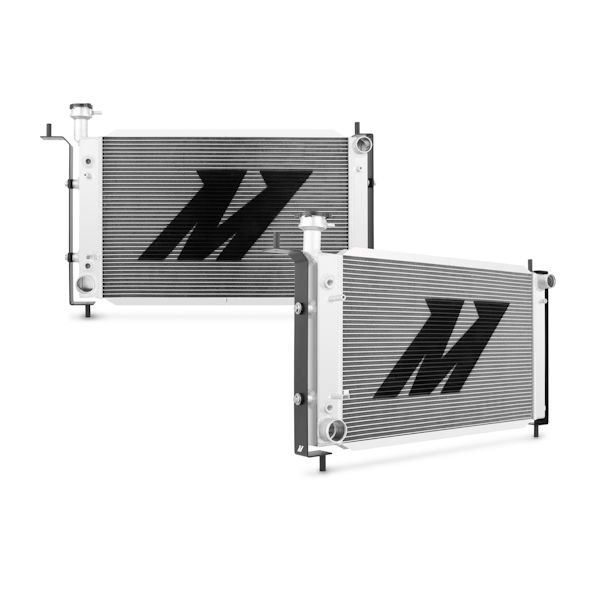

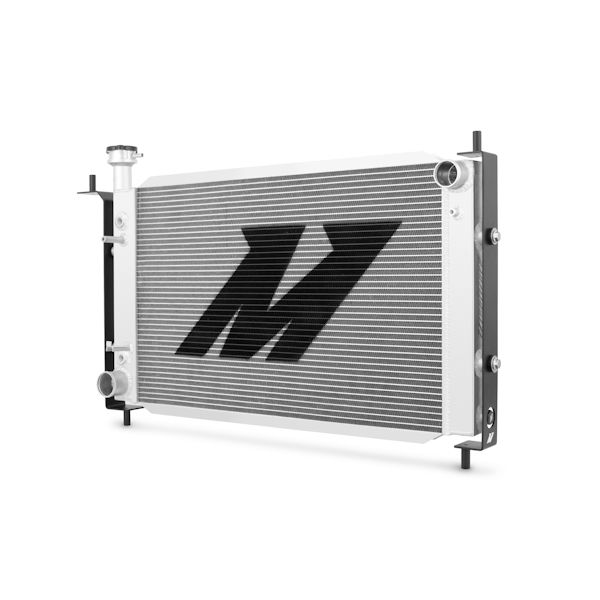

Ford Mustang Bracketed Aluminum Radiator, 1994-1995, Automatic

Mishimoto has released a revolutionary new radiator for the automatic 1994-1995 Ford Mustang.The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the endtanks from the cores.Utilizing a patent-pending floating bracket system, this radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency.The new Mishimoto Mustang radiator is a direct fit and installs in about two hours with no cutting or trimming required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and an excellent warranty.

Additional Attributes:

GTIN: 00748666000513
Install Difficulty: 3
SellingPoint01: Direct fit for the 1994-1995 Ford Mustang 5.0L with automatic transmission
SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
SellingPoint03: Features a two-row, 1.57-in thick, efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Perfect for use on the street or strip
SellingPoint06: Efficient temperature regulation for both stock and modified vehicles

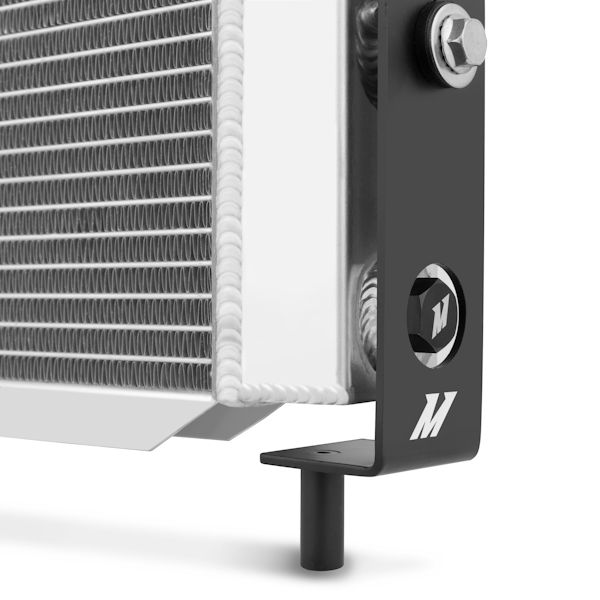

SellingPoint07: Utilizes patent-pending radiator stabilizer system which isolates the radiator from the chassis, eliminating the potential of chassis flex from impacting the integrity of the radiator
SellingPoint08: Features internal transmission fluid cooler which accepts factory cooler lines
SellingPoint09: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint10: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint11: Patent Number D703,126
SellingPoint12: Mishimoto Lifetime Warranty
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1994-1995 Ford Mustang
TechSpec Chassis Codes: SN-95
TechSpec Core Height (in): 15.28
TechSpec Core Length (in): 24.02
TechSpec Core Thickness (in): 1.57
TechSpec DPI: 1488
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: 302ci (5.0L)–3.8L V6
TechSpec Fluid Capacity (gal): 3.97
TechSpec Includes: Mishimoto Radiator–Mishimoto Radiator Cap–Magnetic Drain Plug w/ Dowty Oil Seal–Left & Right Brackets–(4) – Rubber Bushings & Metal Collars–(4) – M8 Flange Head Bolts–(4) – M8 Washers–Mishimoto Lifetime Warranty–
TechSpec Inlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Note: Transmission cooler thread size: 1/4-inch-18 NPT
TechSpec Outlet (in): 1.77
TechSpec Overall Height (in): 34.8
TechSpec Overall Length (in): 20.5
TechSpec Overall Width (ins): 4.2
TechSpec Rows: 2

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 36 x 9 x 24.5 inches
Weight: 19.5 PG
