GM All Lights On (2003-2007 Classic)

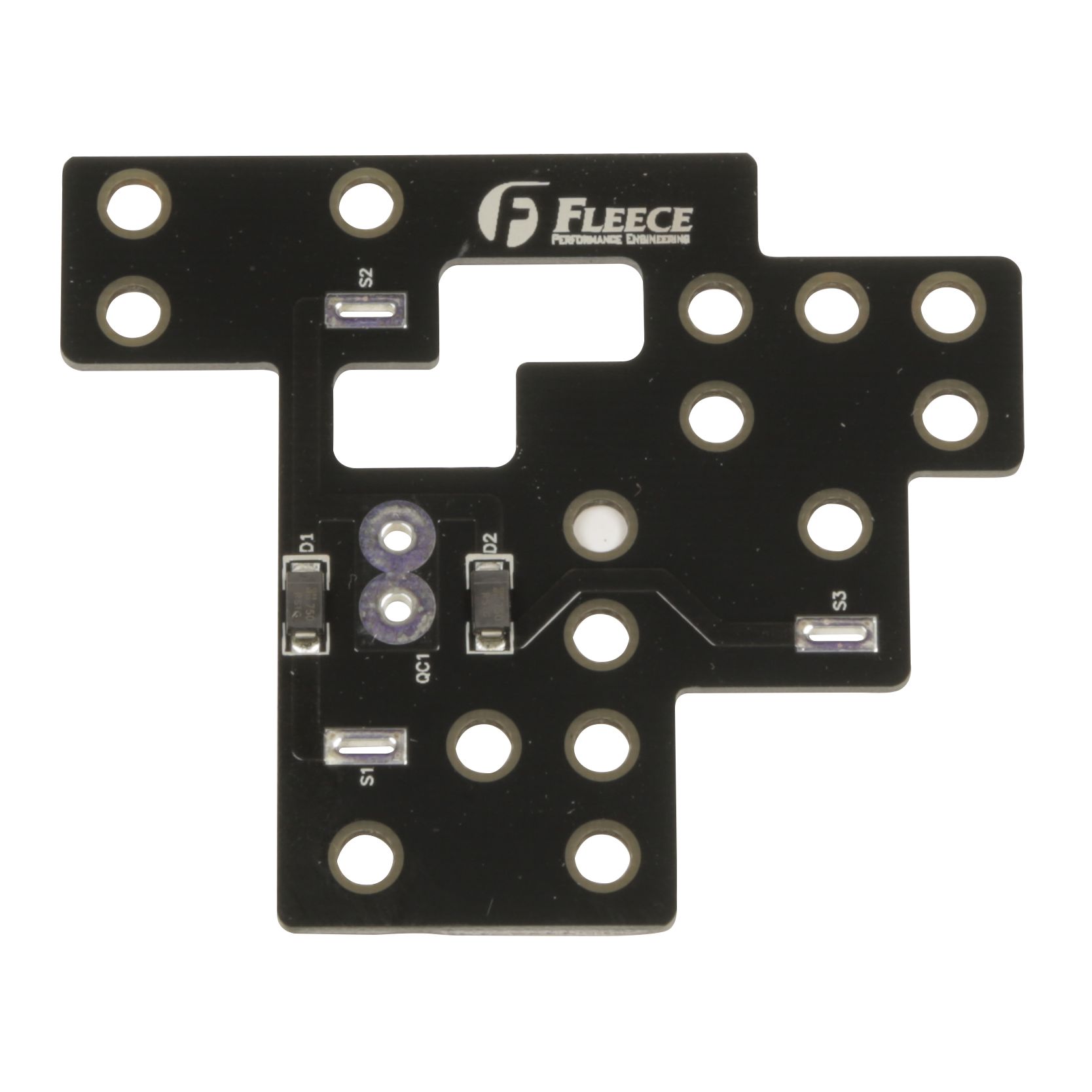

Brighten up your driving experience with this simple upgrade inside your fuse box. Simply install the GM All Lights On Module to allow your high-beams, low-beams and fog lamps to simultaneously illuminate the road ahead. Once installed the GM All Lights On Module will turn on the high-beams, low beams and fog lamps when you turn on your high-beams. When the high-beams are NOT turned on your low-beams and fog lights will function normally.Add the supplied spade terminal to provide a signal ground when the high-beams are turned on. This will allow you to control an accessory relay with the high-beam switch.WARNING: The spade terminal signal ground is NOT intended to provide a high amperage ground. It is only rated for a signal ground that will control a relay.Fitment Guide:2003-2007 Classic 2500-3500 Silverado/SierraInstallation:1. Remove the relays labeled: FOG LP, HDLP-LOW, DRL, HDLP-HI2. Lay the GM All Lights On circuit board in the location shown below3. Reinstall the four relays back into their original location

Additional Attributes:

GTIN: 00635909311539
Add On Items: FPE-TIERODSLEEVES, FPE-DMAX-OC-BLU, FPE-DMAX-OC-RED
Prop 65 Yes/No: YES

Extended Information:

Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 3 x 3 x 1 inches
Weight: 1 PG

PDF:

GM_All_Lights_On_FPE-2014-01
