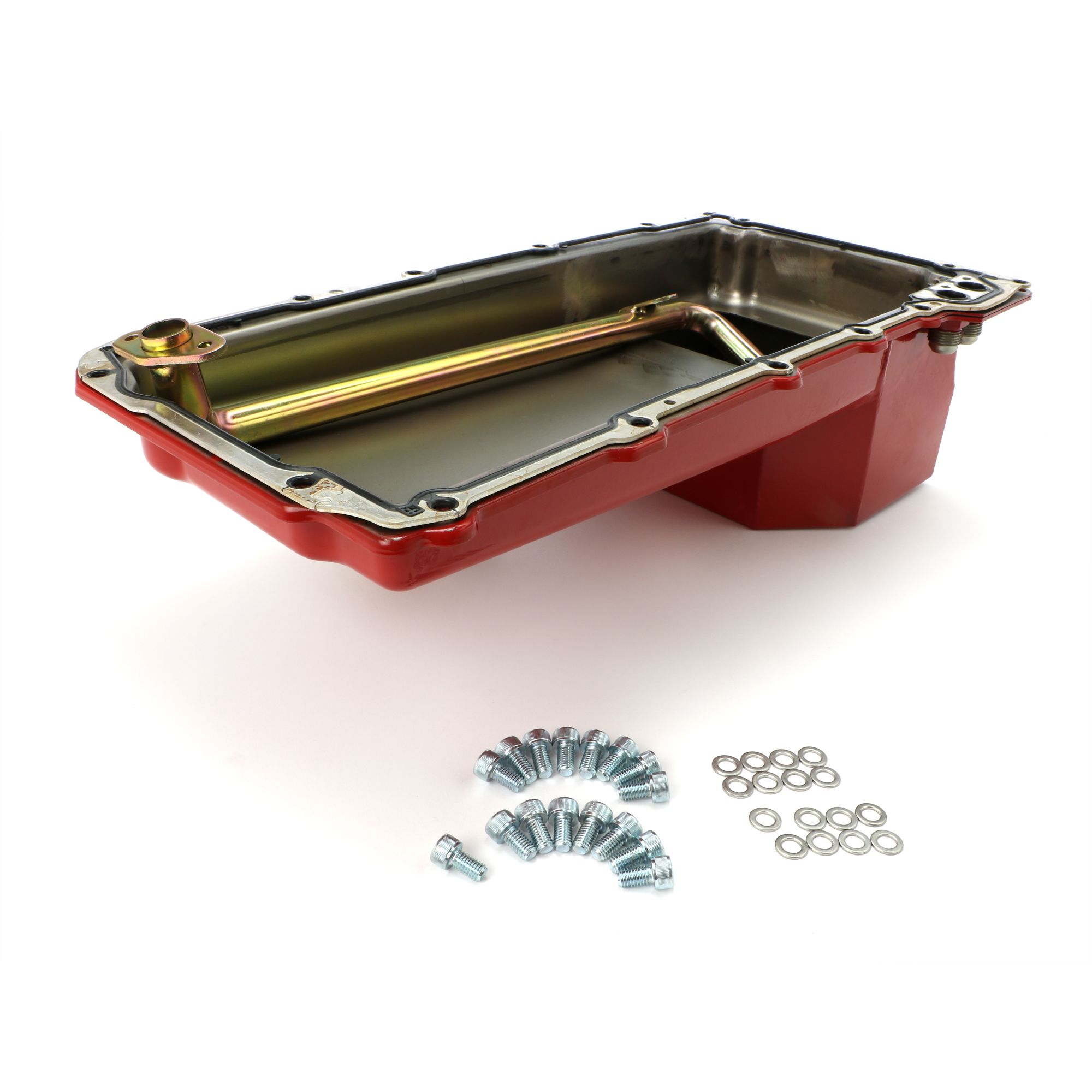

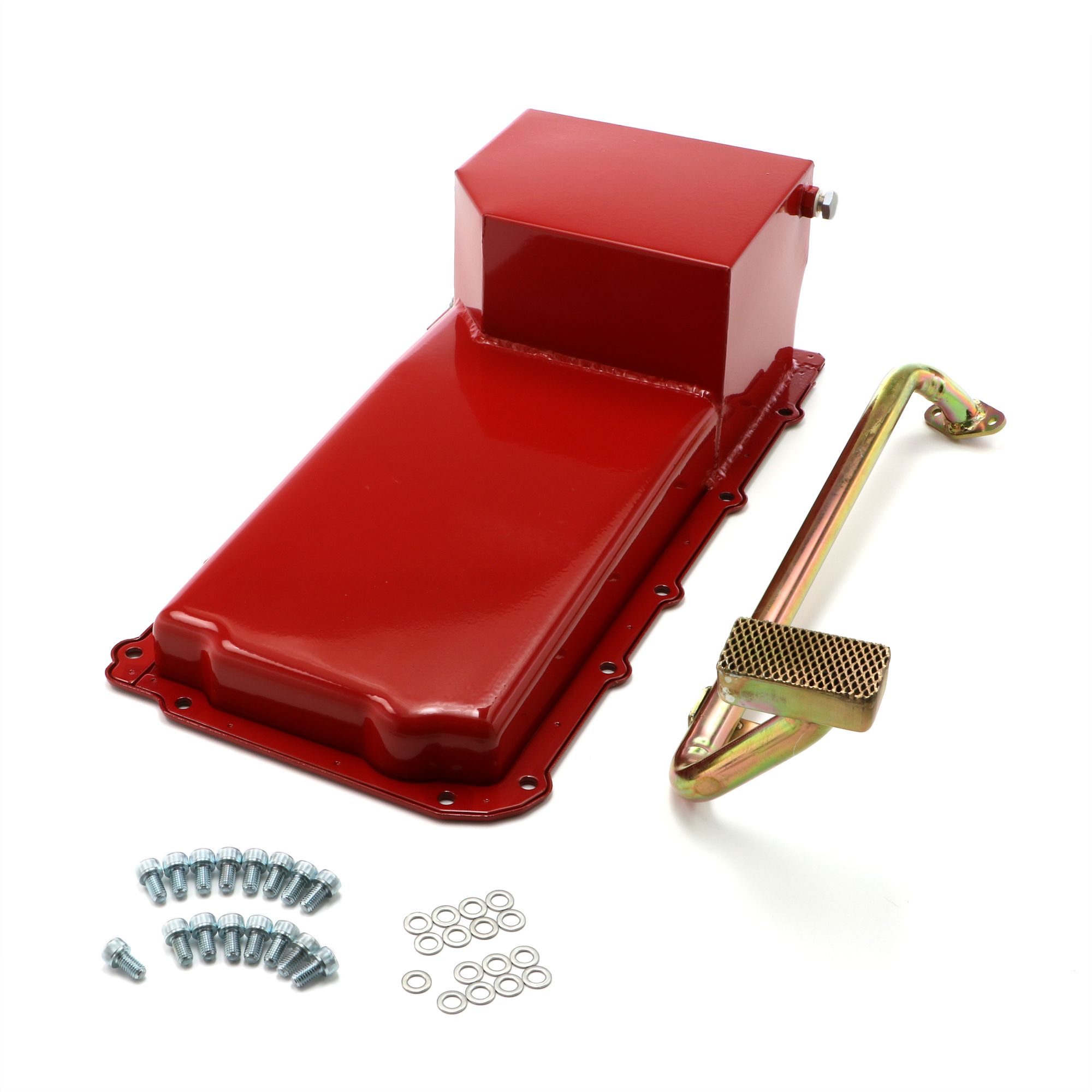

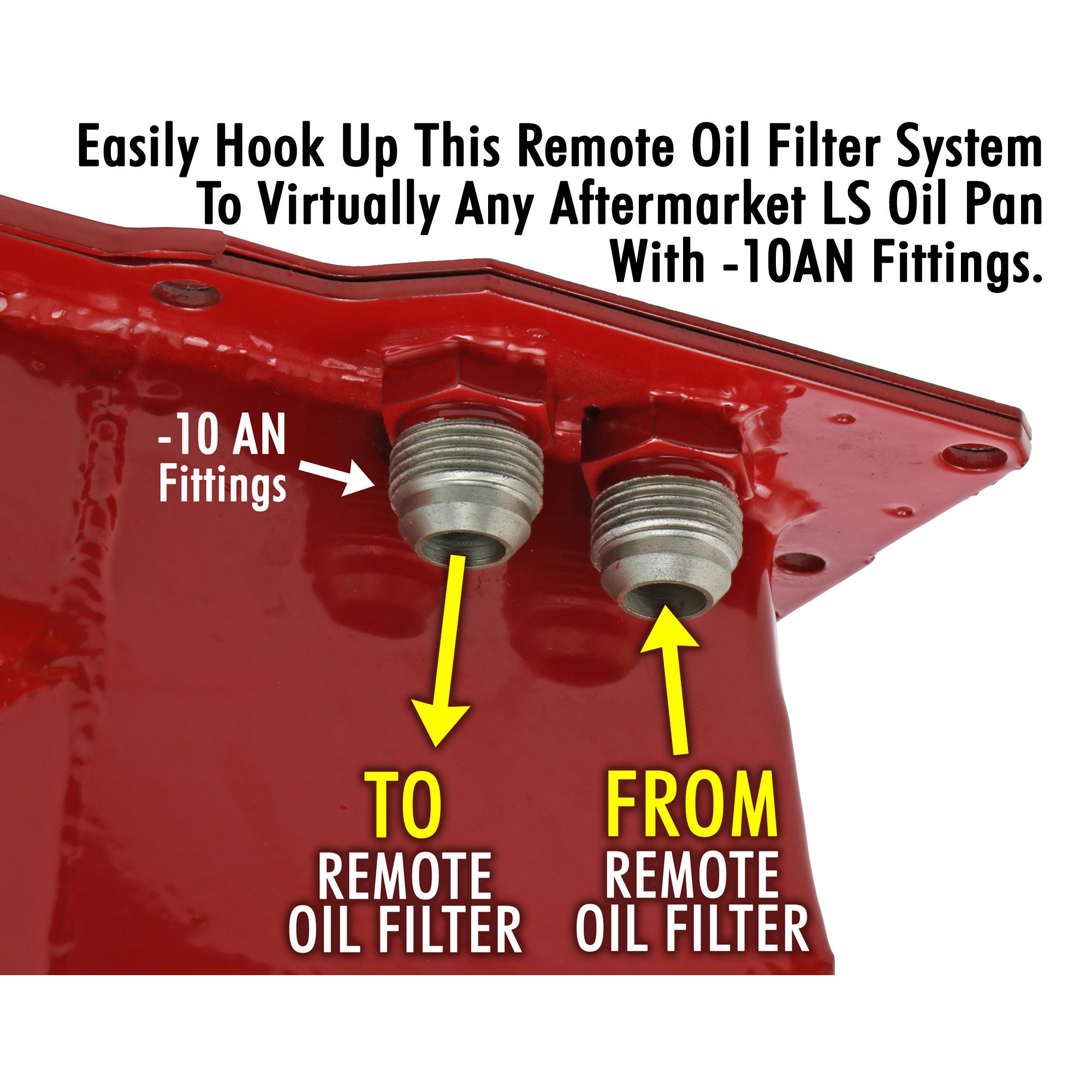

Manufactured steel engine swap oil pan for installing a 4.8L, 5.3L or 6.0L GM LS Series engine into early GM passenger cars and trucks, as well as 1982-04 S10, S15 (2WD/4WD) trucks. The low profile pan moves the oil sump to the rear, like traditional SB Chevy oil pans have. The front of the pan in only 2" deep for excellent clearance above the chassis cross member. A gently sloping pan floor ensures that all the engine oil drains back to the pan sump, which measures only 6" deep. This keeps the pan's sump tucked up and behind the cross member, to avoid pan damage caused by speed bumps, driveways and flying road hazards. The pan comes equipped with a specially designed oil pickup tube that maintains a reliable, consistent flow of oil to your engine. Works with the factory pan o-ring seal. Two -10AN fittings have been integrated into the pan's reinforced mounting flange, to allow for easy hookup to a remotely mounted oil filter. The pan sump measures 8 1/4" wide by 6" long.
Additional Attributes:
GTIN: 00086923011088
Baffled: No
Bolts/Studs Included: Yes
California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
Capacity: 5 Qts.
Color/Finish: RED
Color: RED
Construction: Stamped/Fab
Contents: Oil Pan, Pickup Tube with Additional Bolt and O-ring, Gaskets, Bolts, Drain plug
Crank Shaft Wiper Included: No

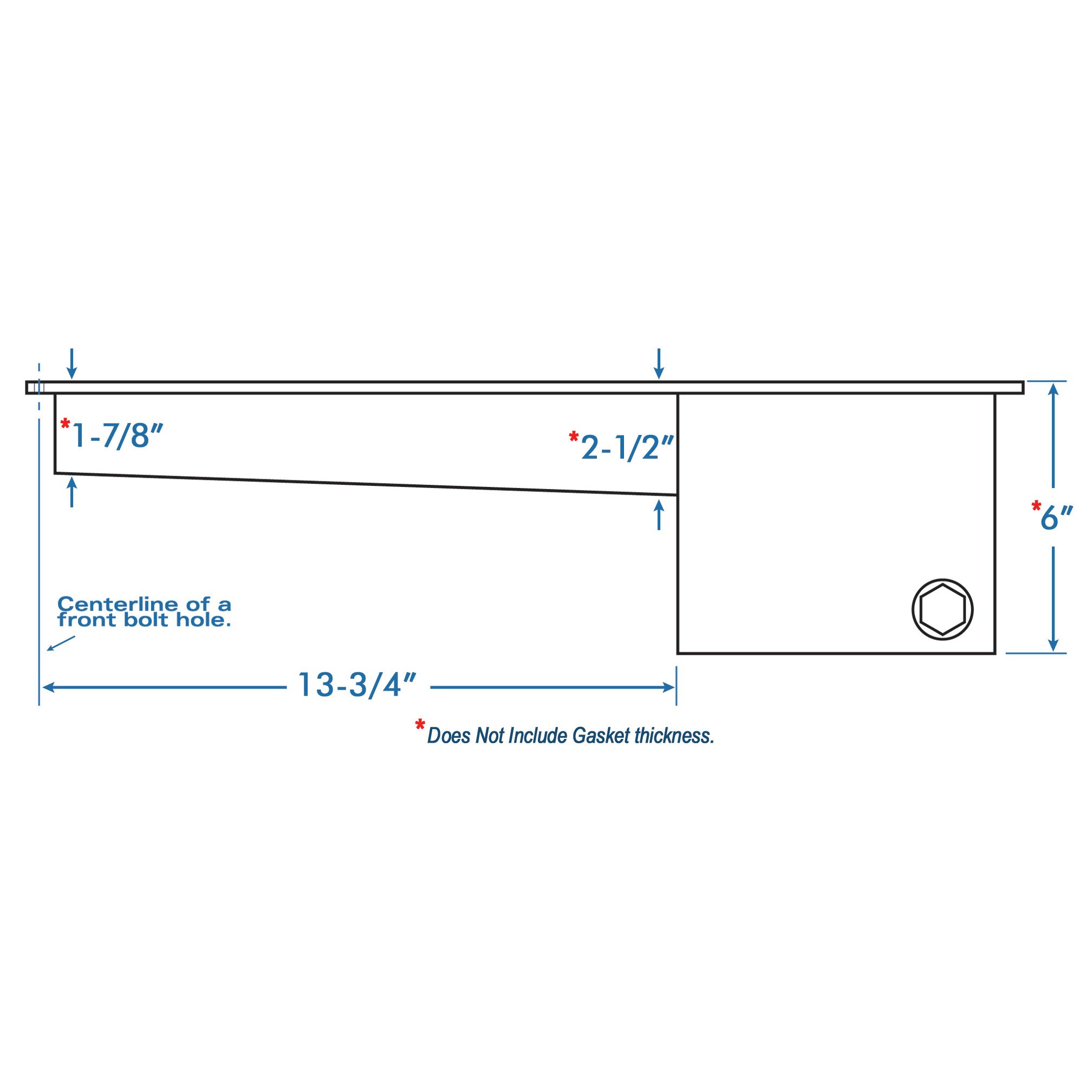

Depth: 2 in. at front of Sump; 6 in. at Rear
Dipstick Provision: No
Drain Plug Included: Yes
Engine Manufacturer: Chevrolet
Engine Oil Cooler Return Fitting: No
Engine: Chevy LS Series
Fastener(s) Included: Yes
Finish Type: Painted
Finish: RED Painted
Fluid Capacity: 5 Qt
Gasket Or Seal Included: Yes
Hardware Included: YES
IMPORTANT!: Some LS have dipstick in pan and will require drilling of dipstick port on block
Installation Hardware Included: Yes
Installation Notes: Requires relocation of oil filter. Trans Dapt Part # 1012, 1014 or 1016.
Key Feature: 2-Bolt Pickup Tube Mounting Flange. Uses BOTH Factory Bolt Holes. Bolt Included!
Kicked Out: No
Kit Type: Oil Pan Only
Length: 6 in.
Material: Steel
Mounting Hardware Included: Yes
Oil Pan Bolts Included: Yes
Oil Pan Capacity: 5 Qt. Capacity
Oil Pan Depth (in): 6 in.
Oil Pan Finish: Red Painted
Oil Pan Material: Steel
Package Contents: Oil Pan, Pickup Tube with Additional Bolt and O-ring, Gaskets, Bolts, Drain plug
Pan Capacity: 5 Qts.
Photo Disclaimer: Actual product design, construction, or included components may vary.
Pickup #: 2522
Pickup Included: Yes
Plug Included: Yes
Port Size: -10AN
Product Type: Oil Pans
Replacement Gasket Set: 4336
Stroker Clearanced: Yes
Sump Dimensions: Driver: 4 3/4 in. x 3 in. x 8 1/4 in.; Passenger: 7 in. x 8 1/4 in.
Sump Location: Rear
Sump Style: Wet Sump
Type: Oil Pan
Vehicle Family: A-Body (GM) 1964-67
Width: 8-1/4 in.
Windage Tray Included: No
Extended Information:
Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 25.5 x 12.5 x 10.5 inches
Weight: 14 PG
