Additional Attributes:
GTIN: 00086923011798

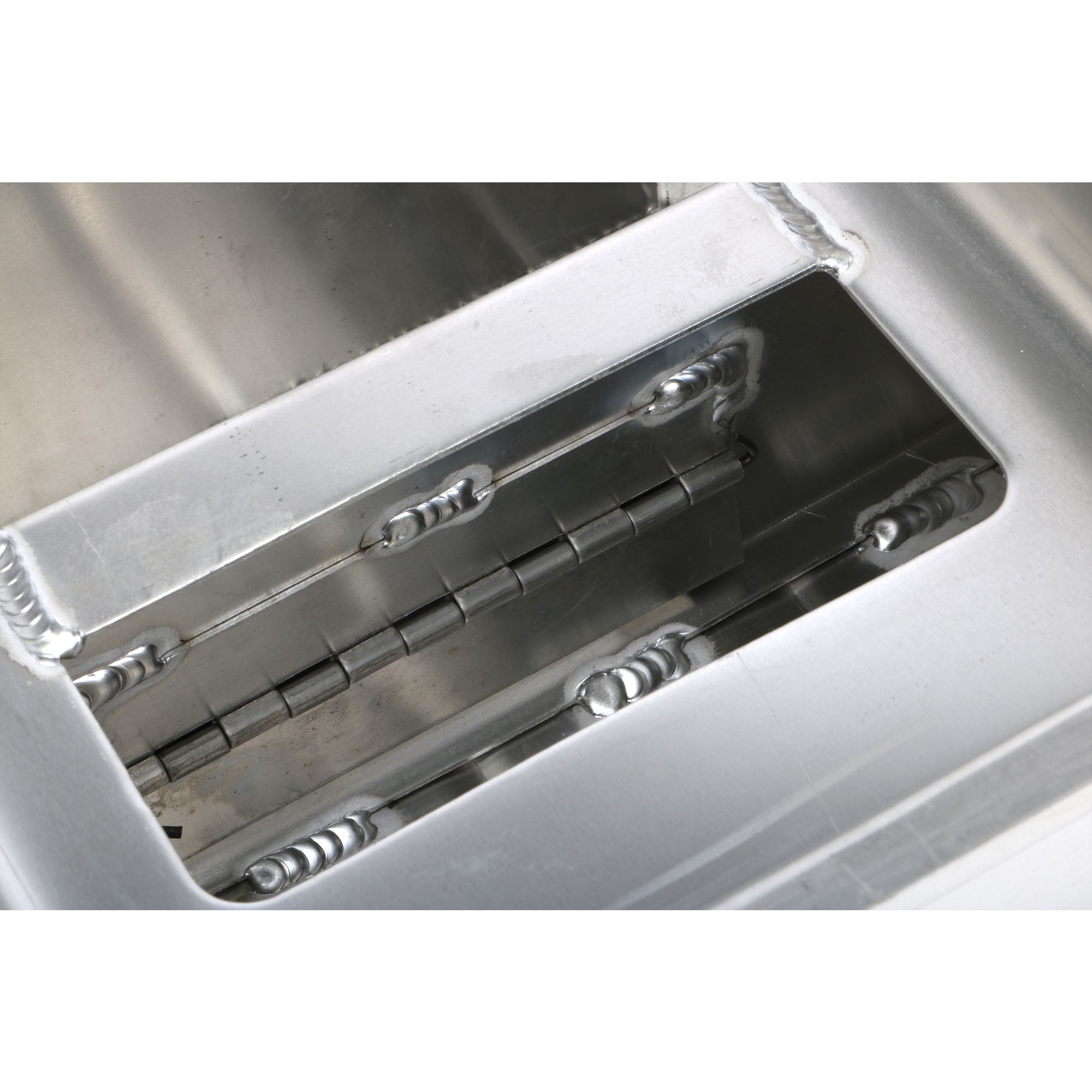

Baffled: Yes
Bolts/Studs Included: No
California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
Capacity: 5-1/2 Qts.
Color/Finish: Machined Aluminum
Color: Aluminum
Construction: Fabricated Aluminum

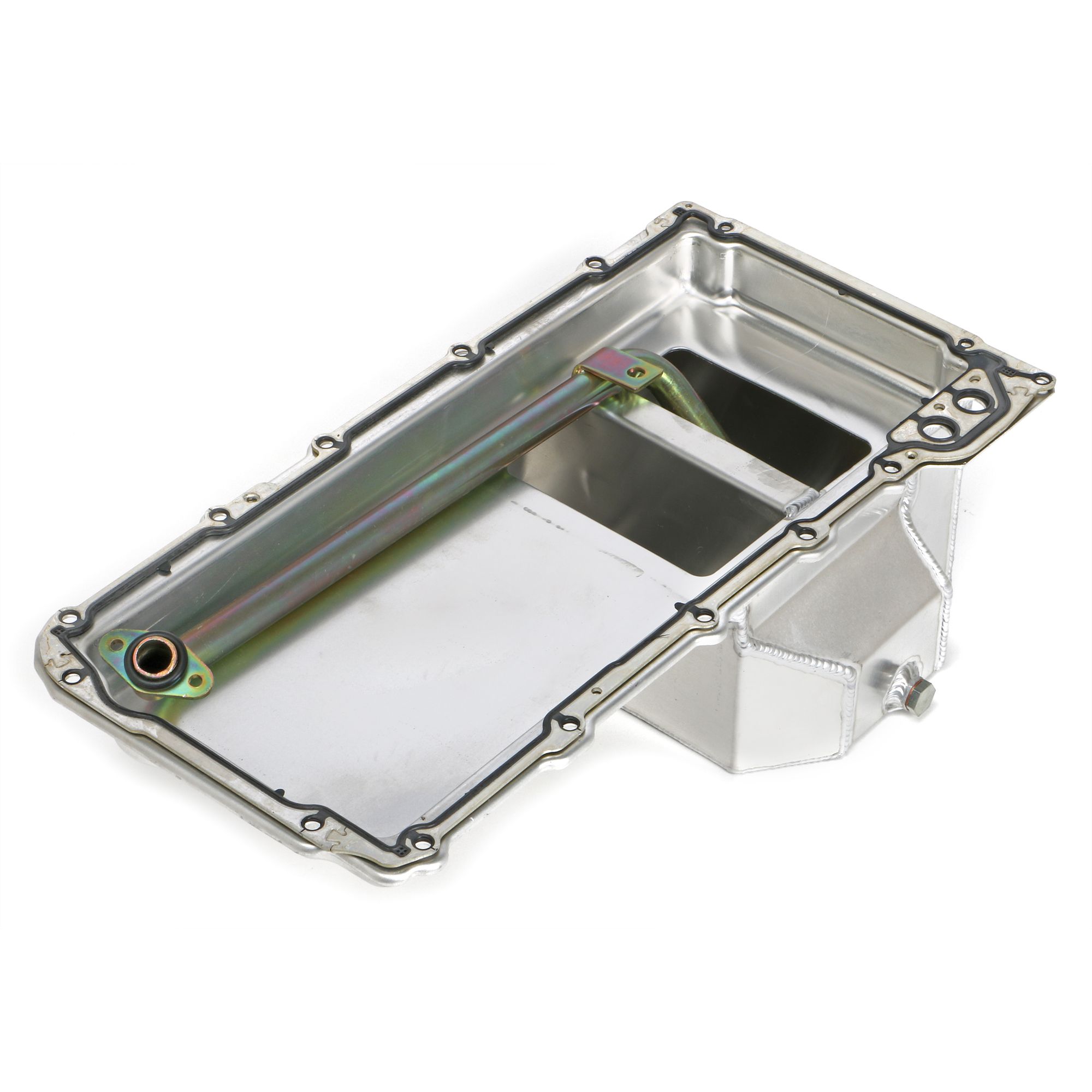

Contents: Oil Pan, Oil Pickup, Gaskets (Bolts not included)
Crank Shaft Wiper Included: No
Depth: 6-1/2 in.
Dipstick Port: No
Drain Plug Included: Yes
Engine Manufacturer: Chevrolet
Engine Notes: LS1, LS6, LS2, LS3, LS9, L76, L98, L92, L93, L99, LQ4, LQ9, LSA, and V8 Vortec.
Engine Oil Cooler Return Fitting: No
Engine: Chevy LS Series
Fastener(s) Included: No
Finish Type: Anodized
Finish: Clear Anodized
Fluid Capacity: 5-1/2 Qt
Gasket Or Seal Included: Yes
Hardware Included: NO
IMPORTANT!: Some LS have dipstick in pan and will require drilling of dipstick port on block
Installation Hardware Included: No
Installation Notes: Not compatible with Factory Windage Tray. Stock windage tray must be removed.
Kicked Out: Yes
Kickout Position: Driver and passenger side
Kit Type: Oil Pan Only
Length: 9 in.
Material: Aluminum
Maximum Stroke: 4.25 in.
Mount Hole Quantity: 15
Mounting Hardware Included: No
Notes: Will not fit Corvette.
Oil Pan Bolts Included: No
Oil Pan Capacity: 5-1/2 Qt. Capacity
Oil Pan Depth (in): 6.50 in.
Oil Pan Finish: Brushed Aluminum
Oil Pan Material: Aluminum
Package Contents: Oil Pan, Gaskets, Drain plug, Pickup Tube
Pan Capacity: 5-1/2 Qts.
Photo Disclaimer: Actual product design, construction, or included components may vary.
Pickup #: 2525
Pickup Included: Yes
Plug Included: Yes
Product Type: Oil Pans
Replacement Gasket Set: 4336
Stroker Clearanced: Yes
Sump Location: Rear
Sump Style: Wet Sump
Type: Oil Pan
Vehicle Family: A-Body (GM) 1964-67
Width: 10-1/2 in.
Windage Tray Included: No
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 25.5 x 12.5 x 10.5 inches
Weight: 8.35 PG
