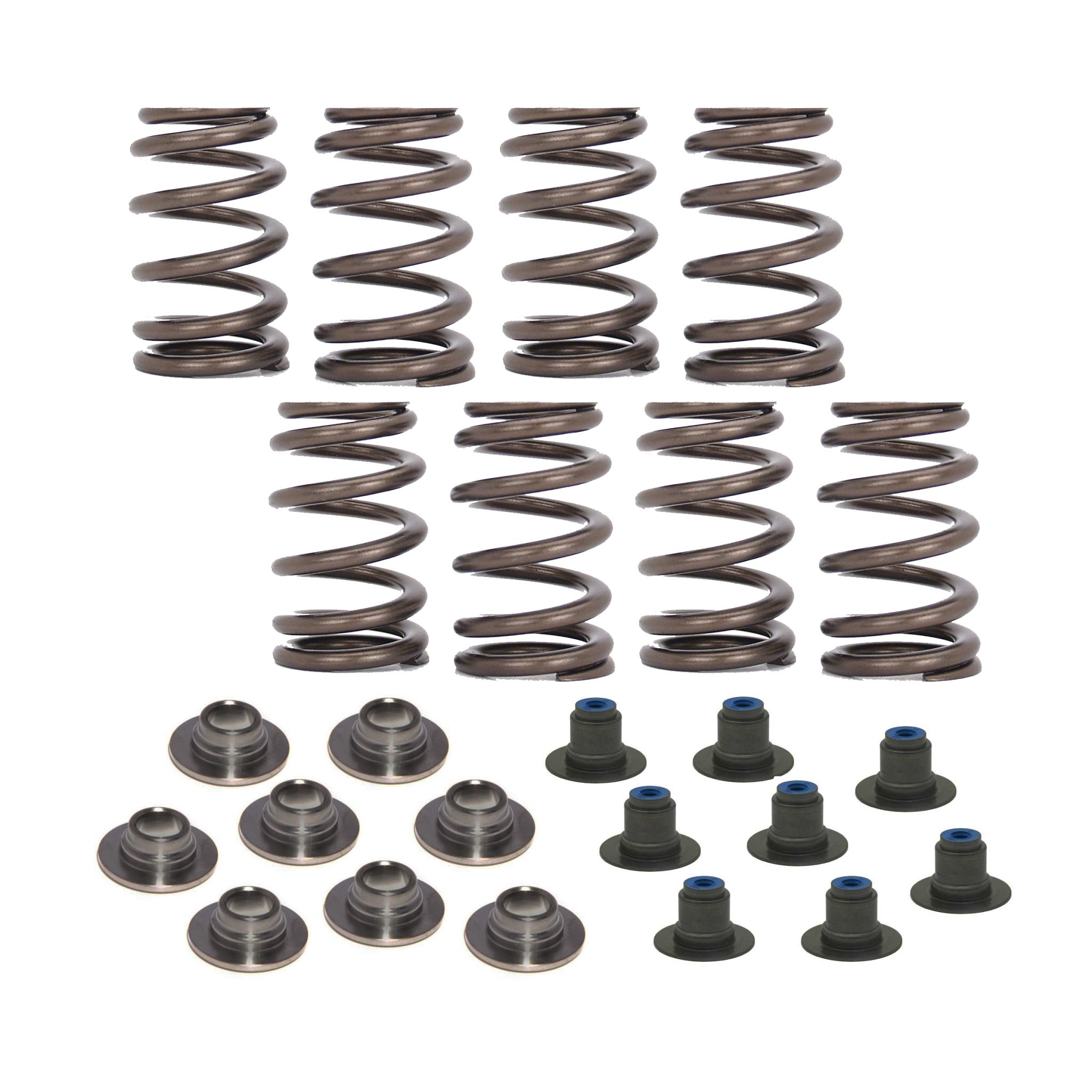

Harley Milwaukee 8 Beehive Spring Kit w/ Tool Steel Retainers; .530″ Max Lift

$538.23

The M8 Spring and Retainer kit features our Beehive springs for a .530" max lift and increased valvetrain stability. The kit includes our Tool Steel retainers for increased strength and light weight.

  • The Harley M8 spring kit increases maximum valve lift to 0.540″.
  • Beehive valve spring design increases valvetrain stability
  • Lightweight tool steel retainers reduce valvetrain weight while increasing rigidity
SKU: BDQQ-9715-KIT Category:

Additional Attributes:

GTIN: 00036584384137
Amazon ASIN: N/A
C.A.R.B. E.O. Number: N/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Coil Bind Height: 0.900
Installed Height: 1.500
Machine Work Required?: No
Maximum Valve Lift: 0.530
Open Pressure: 251
Seat Pressure: 80
Spring Bottom Inner Diameter: 0.742
Spring Bottom Outer Diameter: 1.105
Spring Rate: 324
Spring Top Inner Diameter: 0.580
Spring Top Outer Diameter: 0.943

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: KT
Dimension: 4.5 x 4.75 x 4.25 inches
Weight: 2 PG

Weight 0.91 kg
Dimensions 4.5 × 4.75 × 4.25 cm
