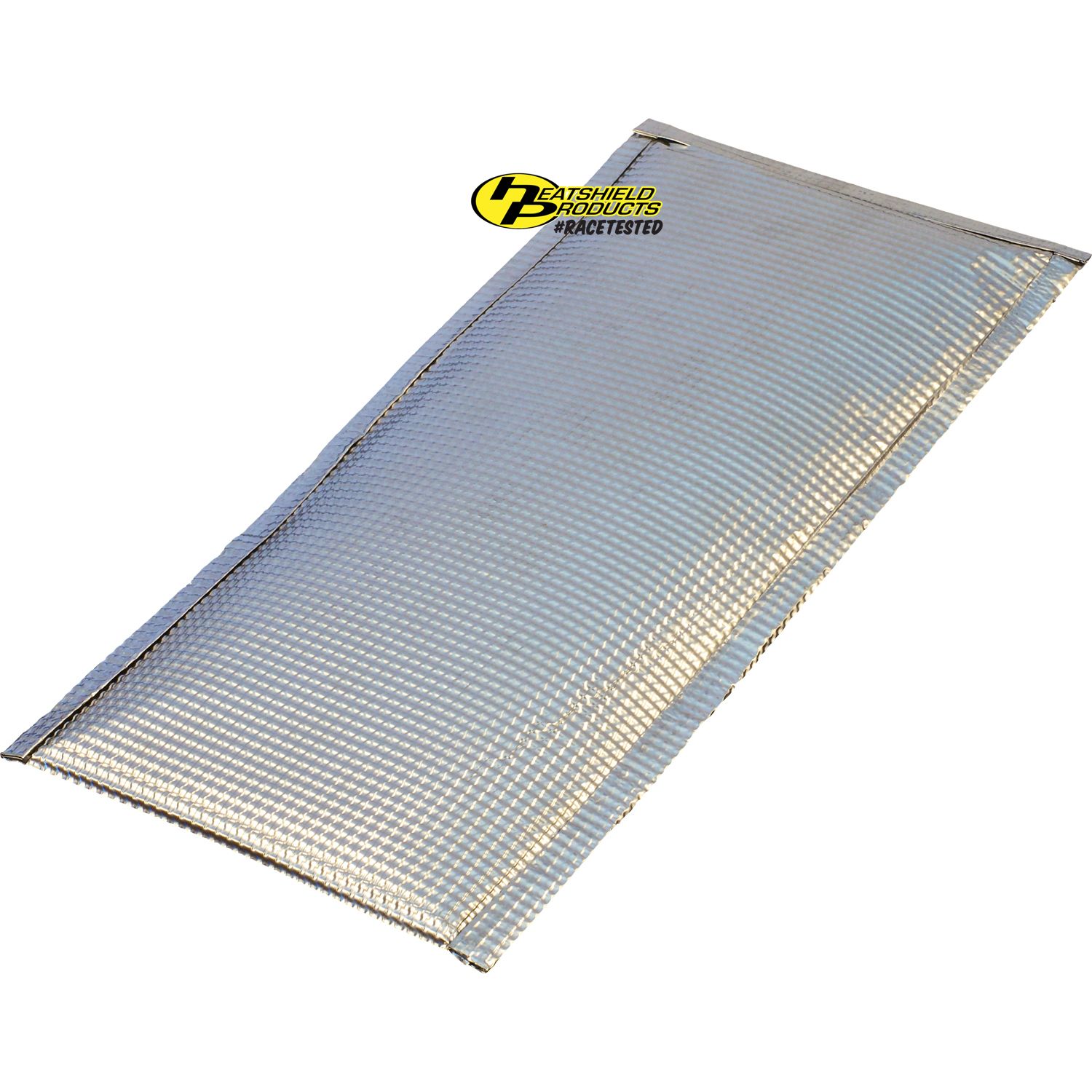

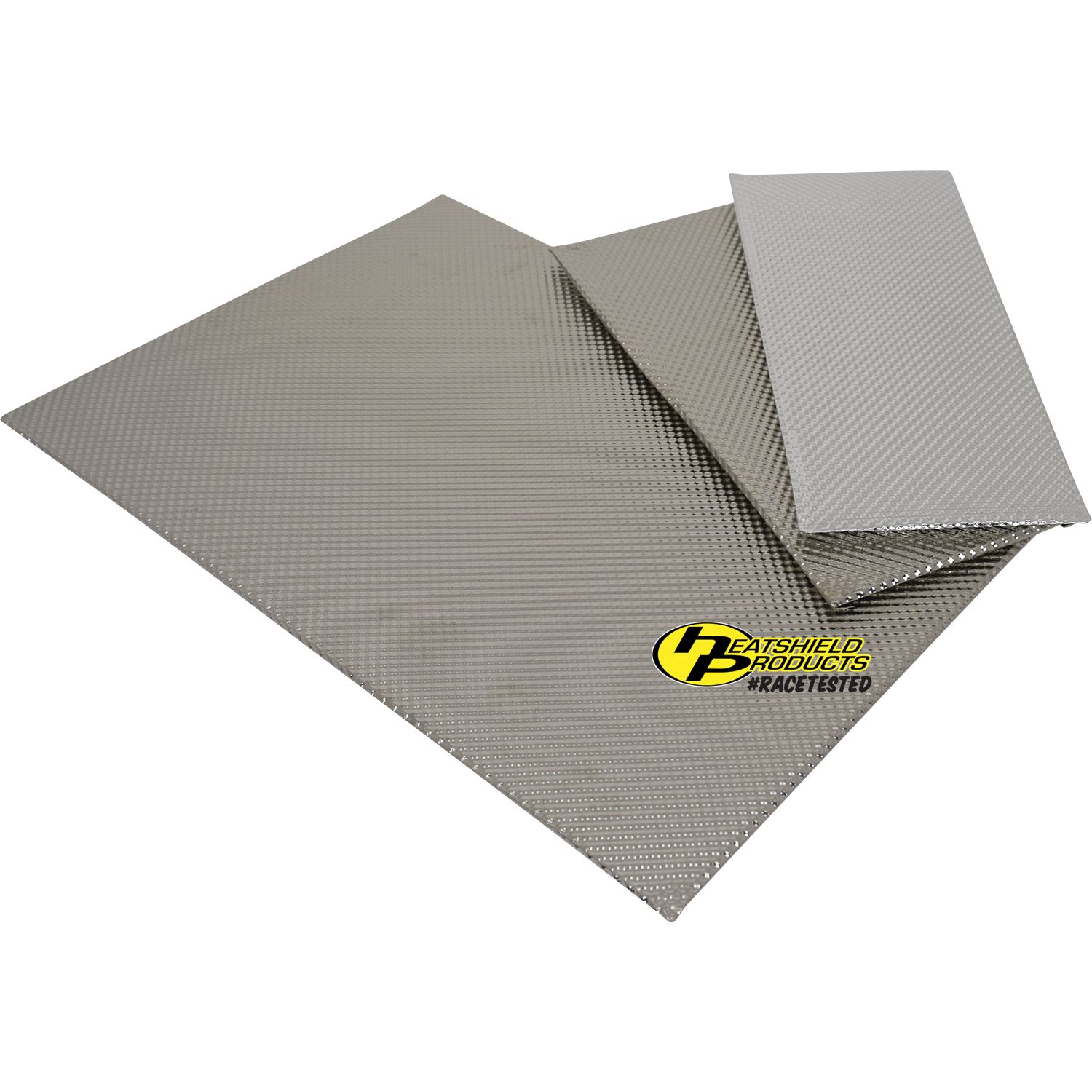

More than just another heat shield, Inferno Shields can be custom configured to handle whatever your thermal requirements are. These heat shields can be bent, folded and twisted to form a custom shape. Our heat shields come in three different grades of alloy: aluminum (900F continuous), stainless steel (1800F continuous) and Inconel (2200F continuous). All of these alloy heat shields have an inner ceramic pad that can be trimmed, then fold over outer alloy layer for a custom size or fit. Larger and custom heat shields available with volume purchase. All of these heat shields may be fastened with Thermal-Tie, safety wire, screws, or rivets.
Additional Attributes:
GTIN: 00819825010145
Color: Aluminum/White
Conductivity Warning: Caution this material is electrically conductive; be sure to insulate any terminals that might come in contact with this product.
Install Tips: Rivets or Spray-on Adhesive
Instructions Included: No
Insulation Type: Radiant heat barrier, needs 1 inch of air space, should not contact heat source.
Manufacturer Product Link: https://www.heatshieldproducts.com/inferno-heat-shield
Material: Proprietary Data
Operating Temperature: 900F
Peak Temperature: 1100F
Product Dimensions: Aluminum 1/4 x 6 x 14 in
Prop 65 Yes/No: No
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 18 x 8 x 0.25 inches
Weight: 0.35 PG
